Installer manual AlphaVision ML Rev. 3.60 01-01-2015 104

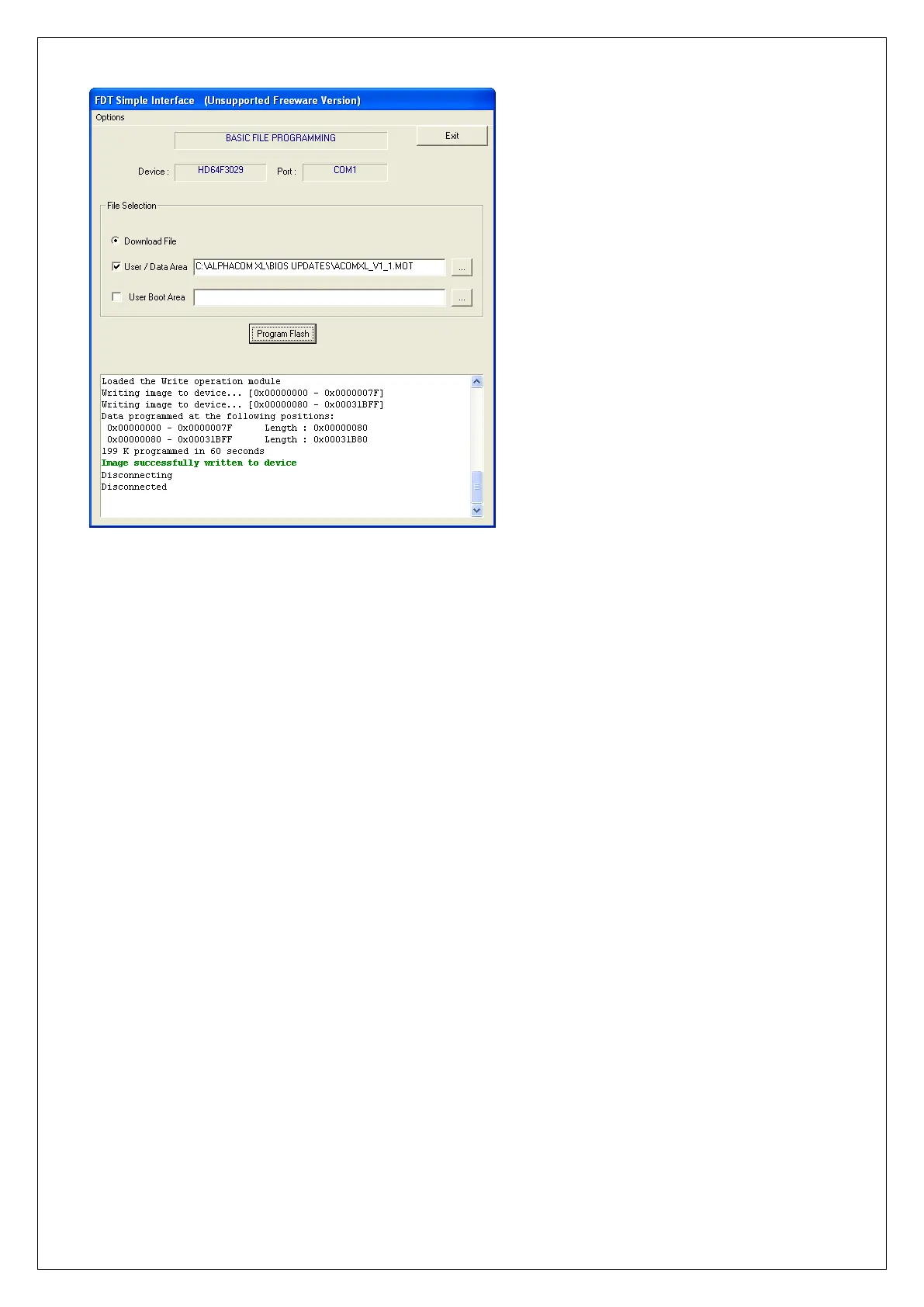

The new firmware has now been successfully flashed into the AlphaVision ML microprocessor. Take the
following steps to put the AlphaVision ML back into the normal operation mode.
Disconnect the power from the AlphaVision ML.
Disconnect the serial programming cable between the computer and the AlphaVision ML.
Remove the jumper from J1
Place the jumper J43 back into the ‘run’ mode. The jumper must be placed over the right and the middle pin
of the header. The left pin must stay empty.
Power-up the AlphaVision ML. The green watchdog LED must illuminate, this is to indicate that the board is
running and the new firmware functions.
In appendix H you can find a description how to install the Renesas flash tool.
