Maintenance and Troubleshooting | 5-13
Figure 5-2 illustrates a 40 cm Measuring Cell. If your application
uses a different Cell, refer to the “Supplemental Information” tab
of this manual for a Measuring Cell Manual Supplement and for
application-specific spare parts, either in the Measuring Cell Manual
Supplement or in a Custom Spare Parts List.
NOTE

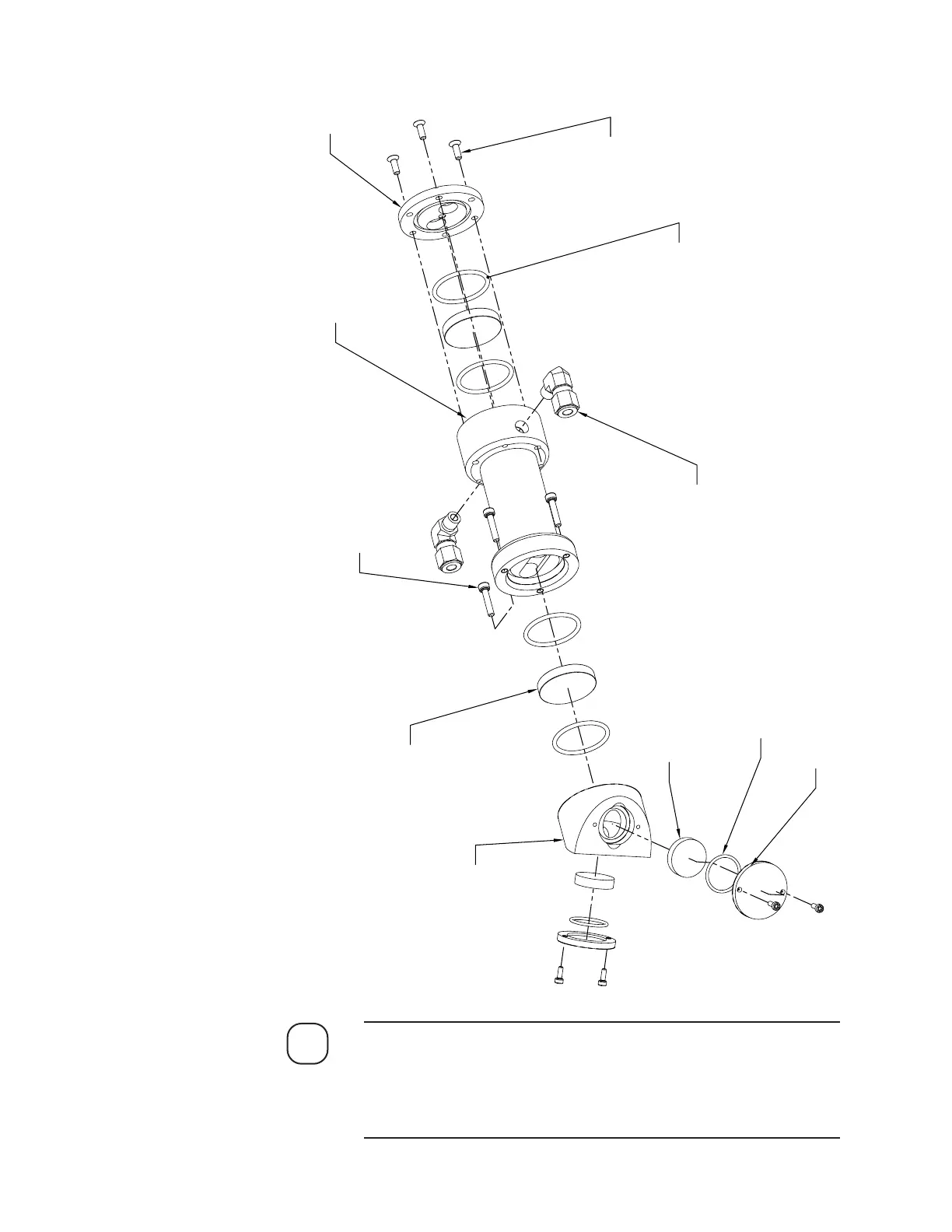

Figure 5-2.
Measuring Cell Assembly
(40 cm Measuring Cell).
MIRROR CAP
300-1261 (2 PLS)
O-RING
300-2361 (2 PLS)
MIRROR (2 PLS)
272285001 (IR)
403007001 (UV)
REFLECTOR BLOCK
O-RING
APLLICATION SPECIFIC
(4 PLS)
CELL WINDOW
APLLICATION SPECIFIC
(2 PLS)
CELL BODY
20 CM SHOWN
SCREW
300-8430
(3 PLS)
FITING
203336018
(2 PLS)
SCREW
300-1671
(2 PLS)
CELL PLATE
100-2015
