7.8 Advanced Engine 7 ADDITIONAL ITEMS: BEYOND BASIC FUEL AND IGNITION CONTROL
However, BEFORE enabling the accelerometer, your need to collect the calibration data.
7.8.5.1 Collecting calibration data In this example we will assume that the three axes are connected to
Analog In 1 through 3.
• Ensure that the accelerometer is wired in and powered on.

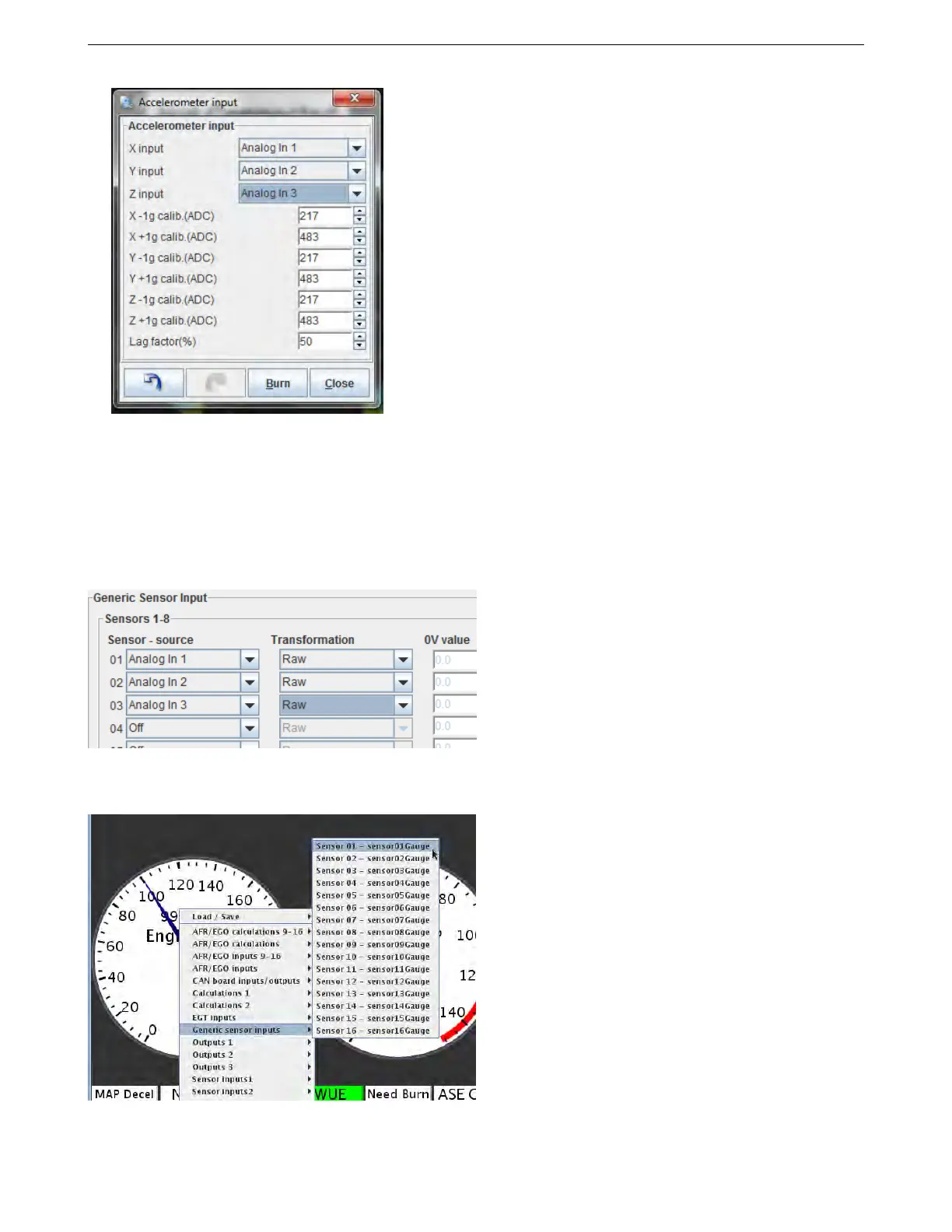

• Open up Generic Sensors and define three spare "sensors" with the three accelerometer inputs. Set the
transformation to “Raw”.
• Next, define a gauge on your TunerStudio dash to match one of these inputs. Right click on a gauge and
then re-define it to match one of the sensor inputs you just defined.
• Physically move and rotate the accelerometer until it gives the minimum reading on that gauge. Write it down.
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 235
