7.10 CAN bus / Testmodes 7 ADDITIONAL ITEMS: BEYOND BASIC FUEL AND IGNITION CONTROL
coolant temperature data, and supports a handful of European car dashes. Holset HE351VE VGT broadcasting
allows you to send a commanded boost duty cycle to a Holset VGT turbo controller. Future firmware upgrades are
likely to support additional devices.

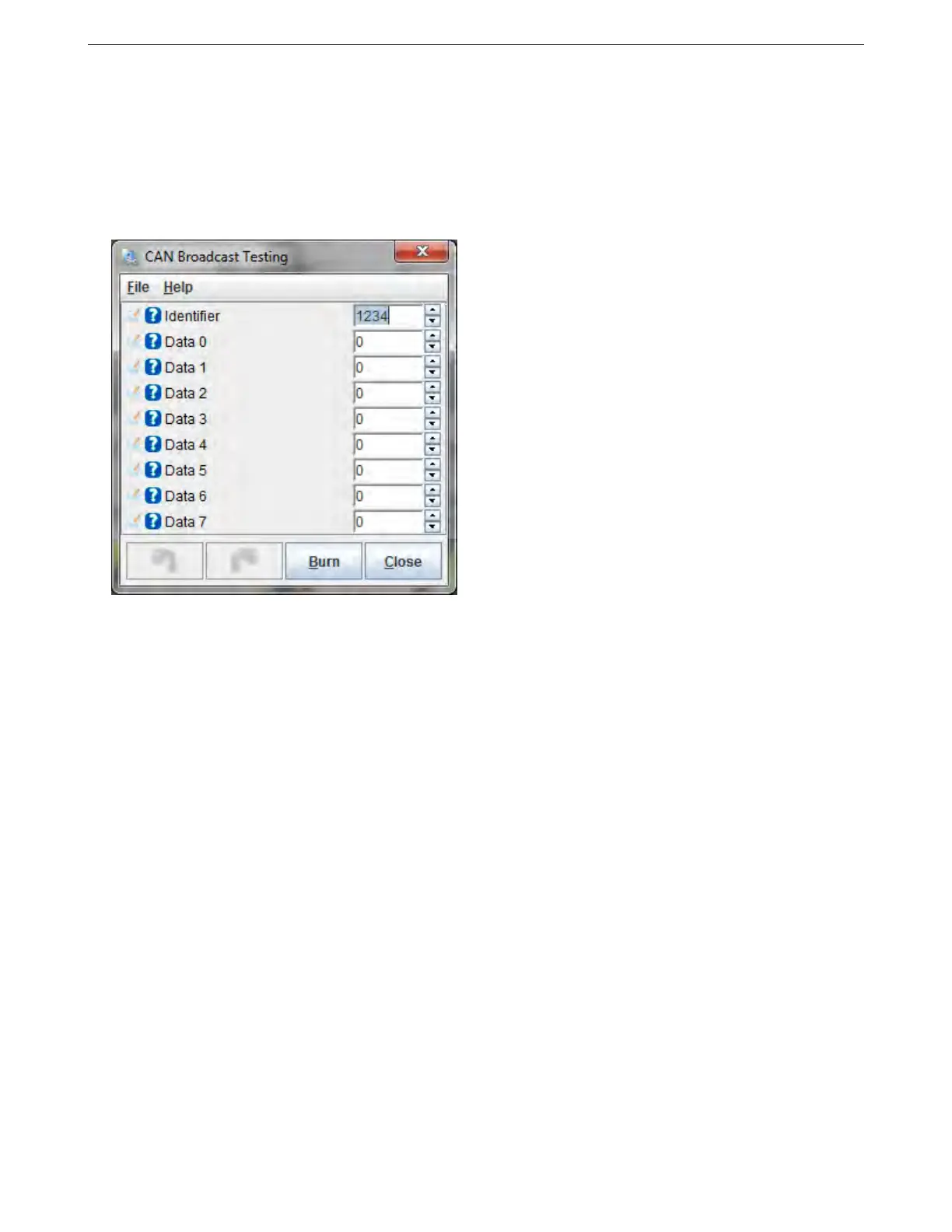

7.10.3 CAN broadcast testing
This screen allows you to send a user defined CAN message with a 10 bit identifier and eight data bytes. Used for
testing remote CAN devices.
7.10.4 CAN realtime data broadcasting
This mode allows broadcasting messages over CAN to display devices or data loggers.
The base message identifier in decimal of the sequential 11-bit CAN addresses used for realtime data (outpc)
broadcasting. The ECU assigns the next identifier for each data group whether enabled or not. i.e. group 0 is at
base identifier, group 17 is at base identifier+17
This means that by using the default base address you can use a predefined template for your dash, etc. The
data is divided into separate groups, and each can be broadcast at a separate frequency. Pick an appropriate rate
for the data within the group; there is no benefit in transmitting slow changing data at a high rate.
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 263
