7.8 Advanced Engine 7 ADDITIONAL ITEMS: BEYOND BASIC FUEL AND IGNITION CONTROL

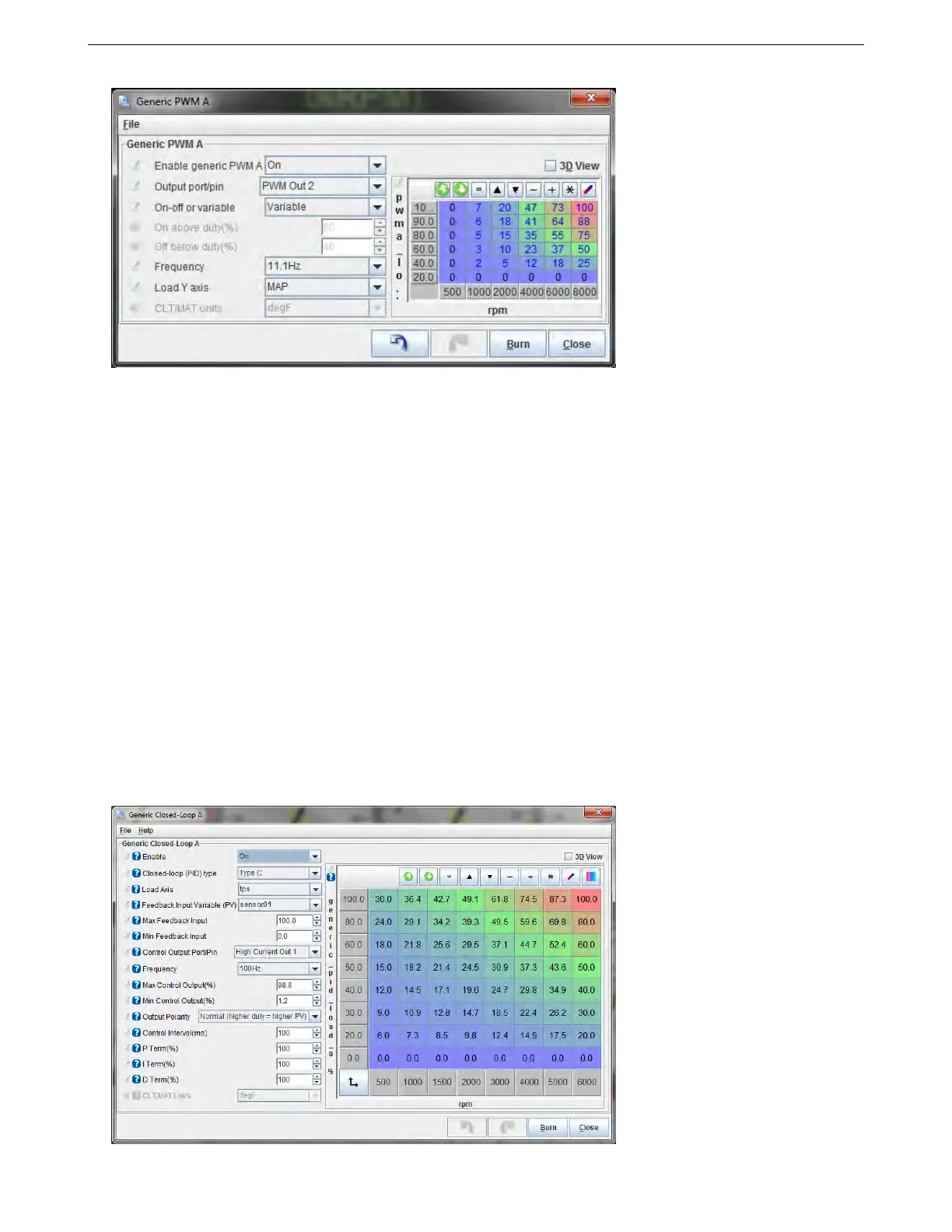

• Enable generic PWM - Turns this PWM channel on or off
• Output port/pin - Selects the output pin to use
• On-off or variable - On/off or variable PWM output
• On above duty - For on/off mode, duties in the table above this value turn the output on.
• Off below duty - For on/off mode, duties in the table below this value turn the output off. (Leave a gap to
prevent chatter.)
• Frequency - For variable outputs, this sets the frequency to pulse the output channel.
• Load Y axis - Choose from MAP, %baro, TPS, MAF load, battery voltage, CLT, MAT for the Y-axis of the
table.
• Table or Curve - You can use a 3D table of load and RPM or a 2D curve with just the load to determine the
output.
• CLT/MAT units - This settings chooses the temperature scale in use. It can only be set through the "Generic
Sensors" menu.
7.8.26 Generic Closed Loop outputs
The MS3Pro has several predefined closed loop functions, such as idle speed, fuel pressure, and boost control.
For other functions that can use closed loop, the MS3Pro has a generic function.
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 259
