5.3 Ignition settings 5 SETTING UP A BASIC CONFIGURATION

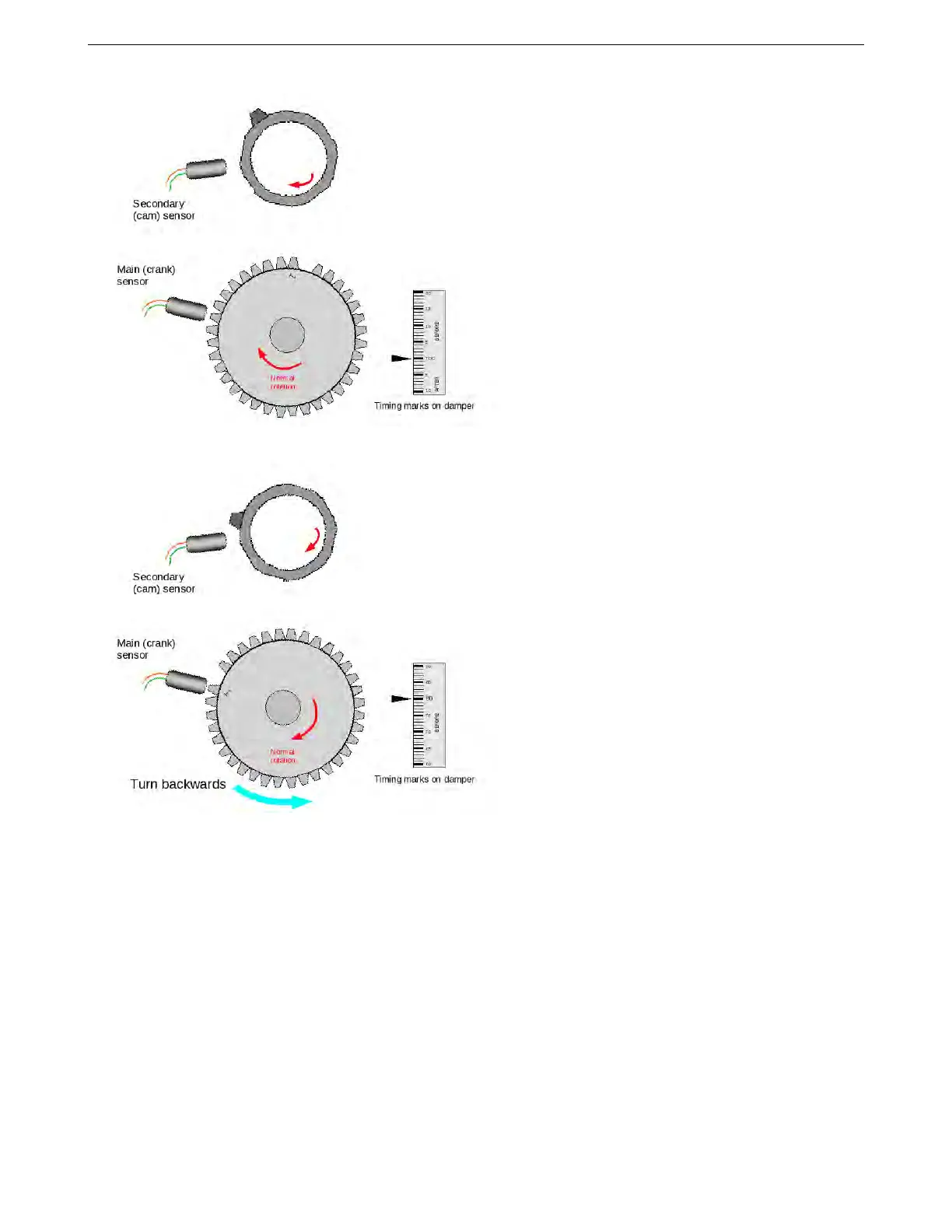

Now rotate the engine backwards to tooth #1. The angle read off the damper is the tooth#1 angle.
Now rotate the engine backwards some more, at least one or two teeth - this is the best place for the cam tooth
to pass the sensor, if you are retrofitting a trigger setup. However, the cam sensor can be at any angle except
having the active edge aligned in the tooth gap.
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 70
