5.3 Ignition settings 5 SETTING UP A BASIC CONFIGURATION

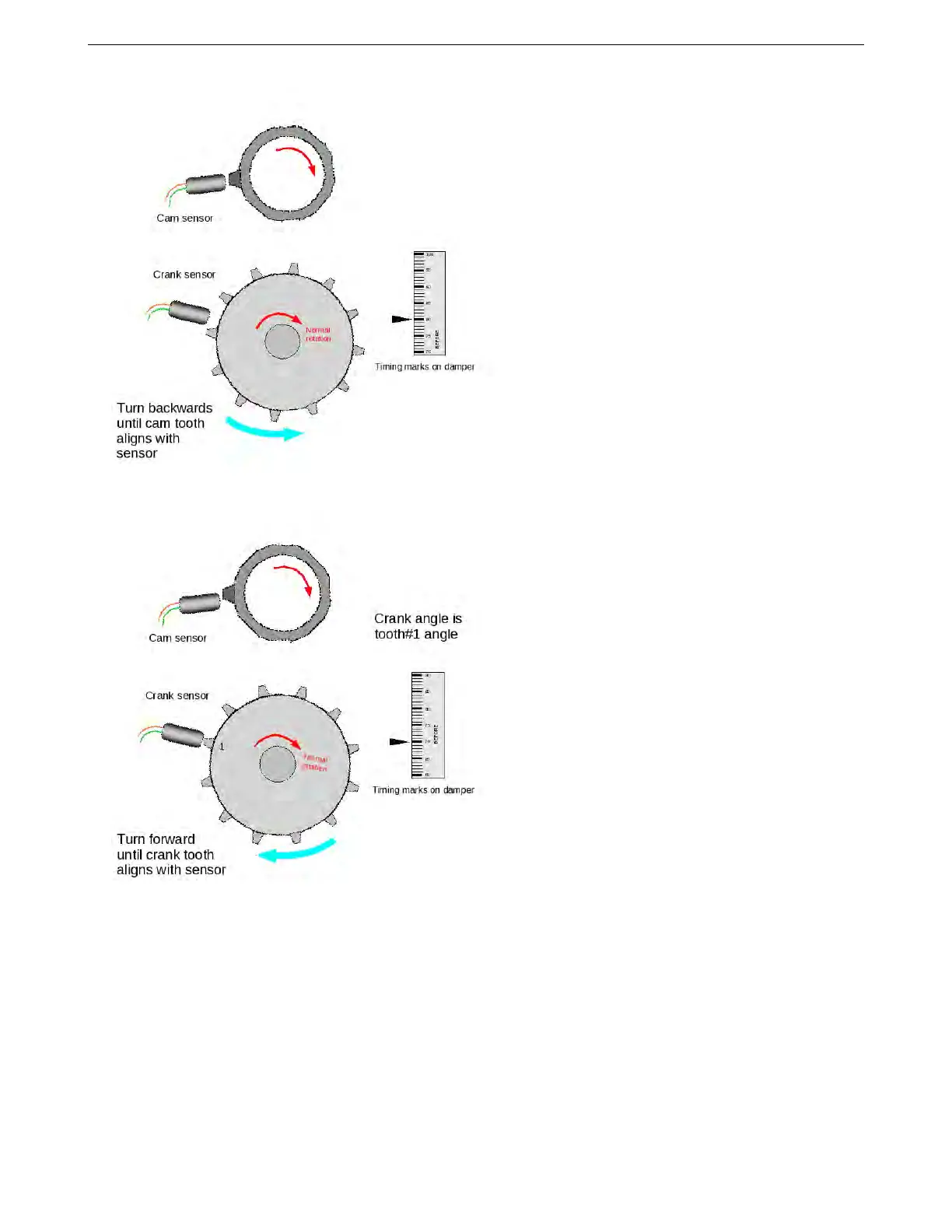

Now rotate the engine forwards until the next crank tooth aligns with its sensor. The crank angle now is the
tooth#1 angle. (Note that angles shown in diagram are examples only).
Critical settings include:
• Spark Mode = Toothed Wheel
• Trigger Angle / Offset = 0
• Trigger wheel arrangement = Dual wheel
• Trigger wheel teeth = number of teeth
• Tooth #1 Angle (deg BTDC) = set as above
• Main wheel speed = Crank wheel
• Second trigger active on = Set to make sure this does not overlap with main wheel
• and every rotation of = Cam
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 83
