5.3 Ignition settings 5 SETTING UP A BASIC CONFIGURATION

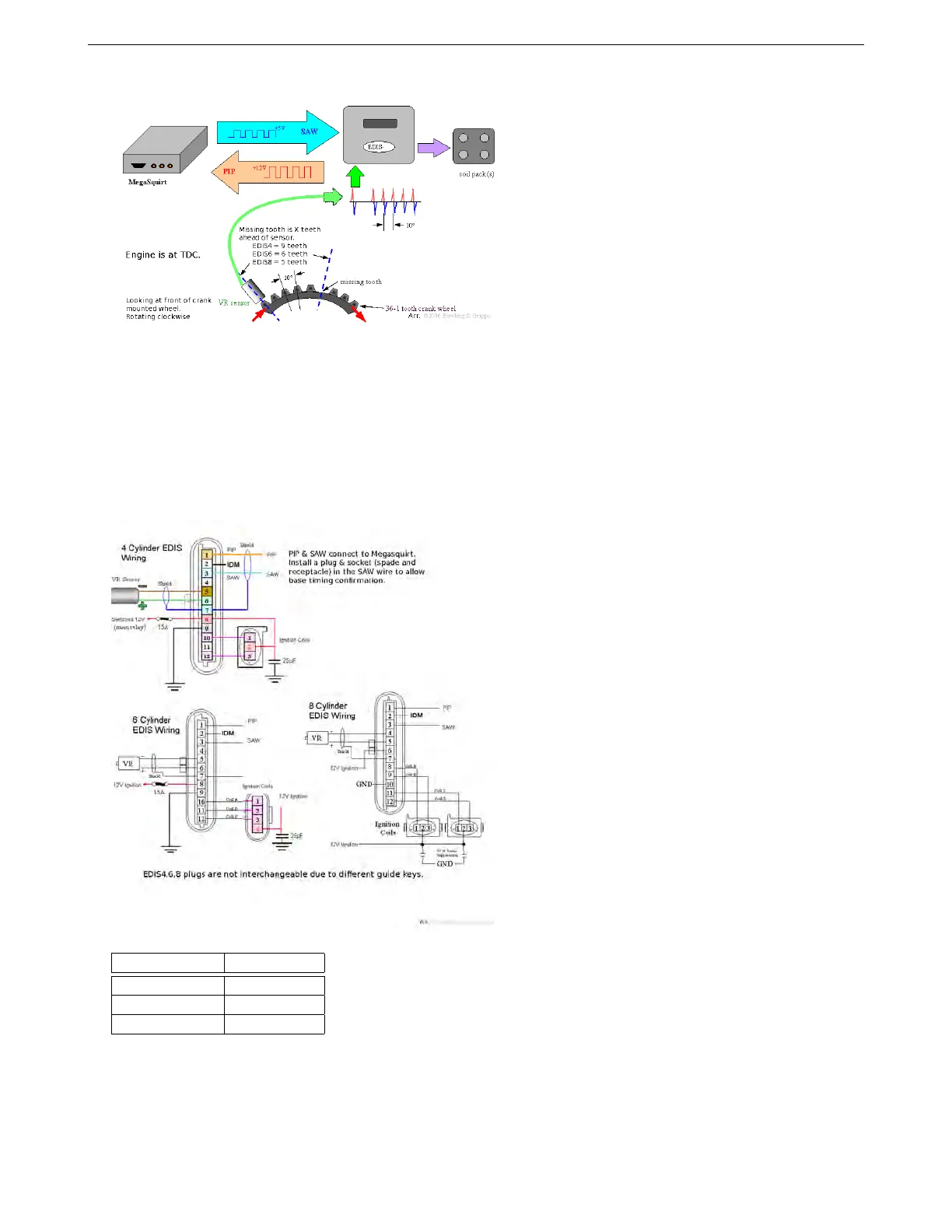

The EDIS system is made up of:
• EDIS module
• crank wheel
• crank variable reluctor sensor (VRS)
• and one or more coil pack(s).
Note that in North America, Ford stopped using the external EDIS module in 1996. Cars that do not have the
internal EDIS module can use the Toothed Wheel mode.
MS3Pro uses the following wire connections.
Function Connection
PIP CKP+
SAW Spark A out
Cam (if used) CMP+
Use the following settings:
• Spark mode: EDIS (EDIS Multispark can be used on some 4 cylinder modules, but this function only works
if your module supports it.)
• Trigger angle: 0
AMP EFI MS3Pro manual version 1.202, firmware 1.5.0, 4/21/2017 Page 87
