6-4 Calibration Menus VNA View Menus
6-24 PN: 10580-00289 Rev. K Vector Network Analyzer MG
Calibration Methods
The Reciprocal is also known as an Unknown Thru. If you do not know the length of the Thru
in your setup, and if it is a reciprocal device, then you can choose one of the bottom three
calibration methods shown in Figure 6-22. Set the Line Length to zero, and the vector network
analyzer will automatically measure (calculate) the length of the Thru.

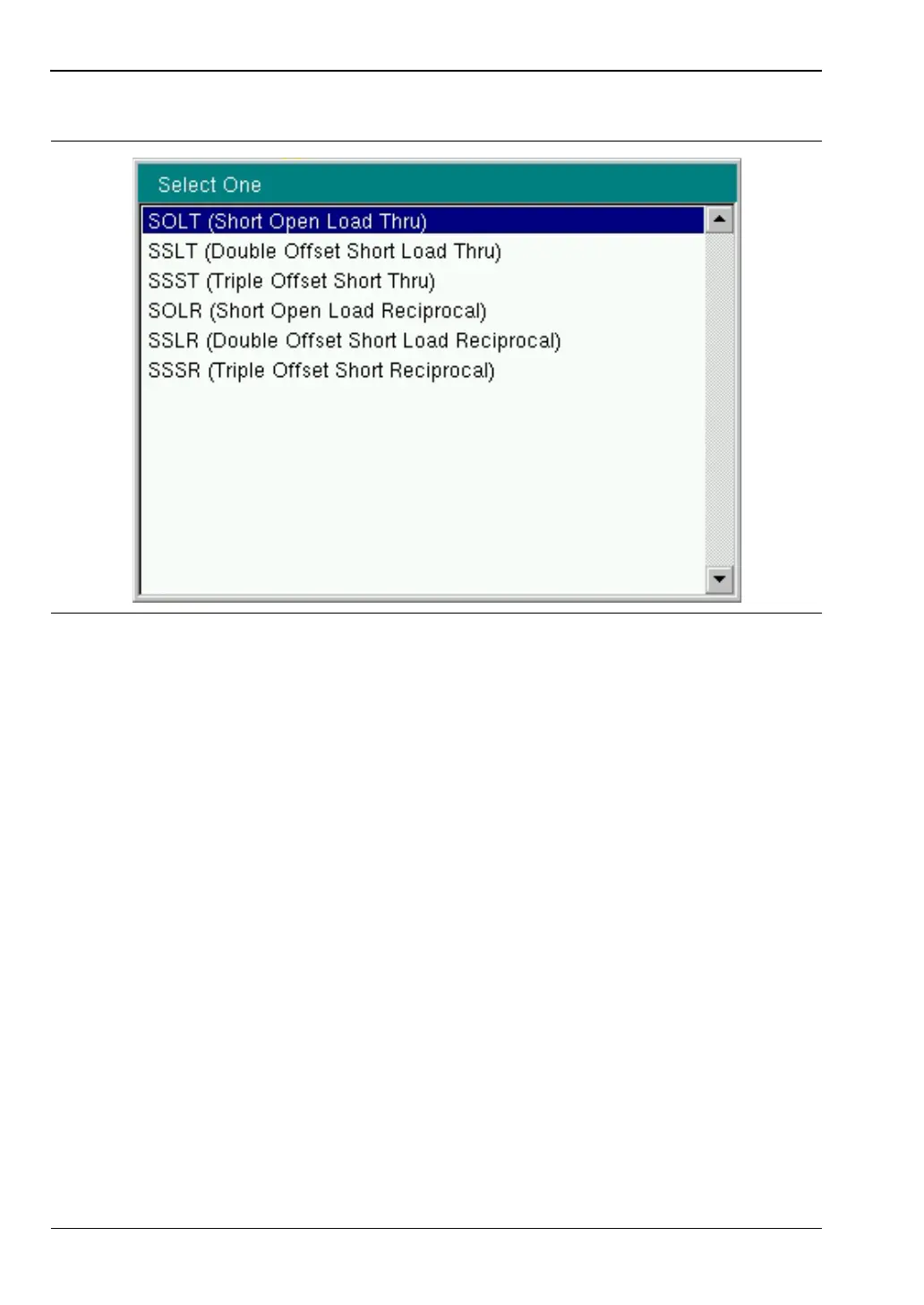

Figure 6-22. Calibration Method List
