The same DUT measured with bandpass time domain processing is shown in Figure 8-6. The
reduced resolution in this mode is apparent as the 6 dB reflection becomes spread out (wider
peak).

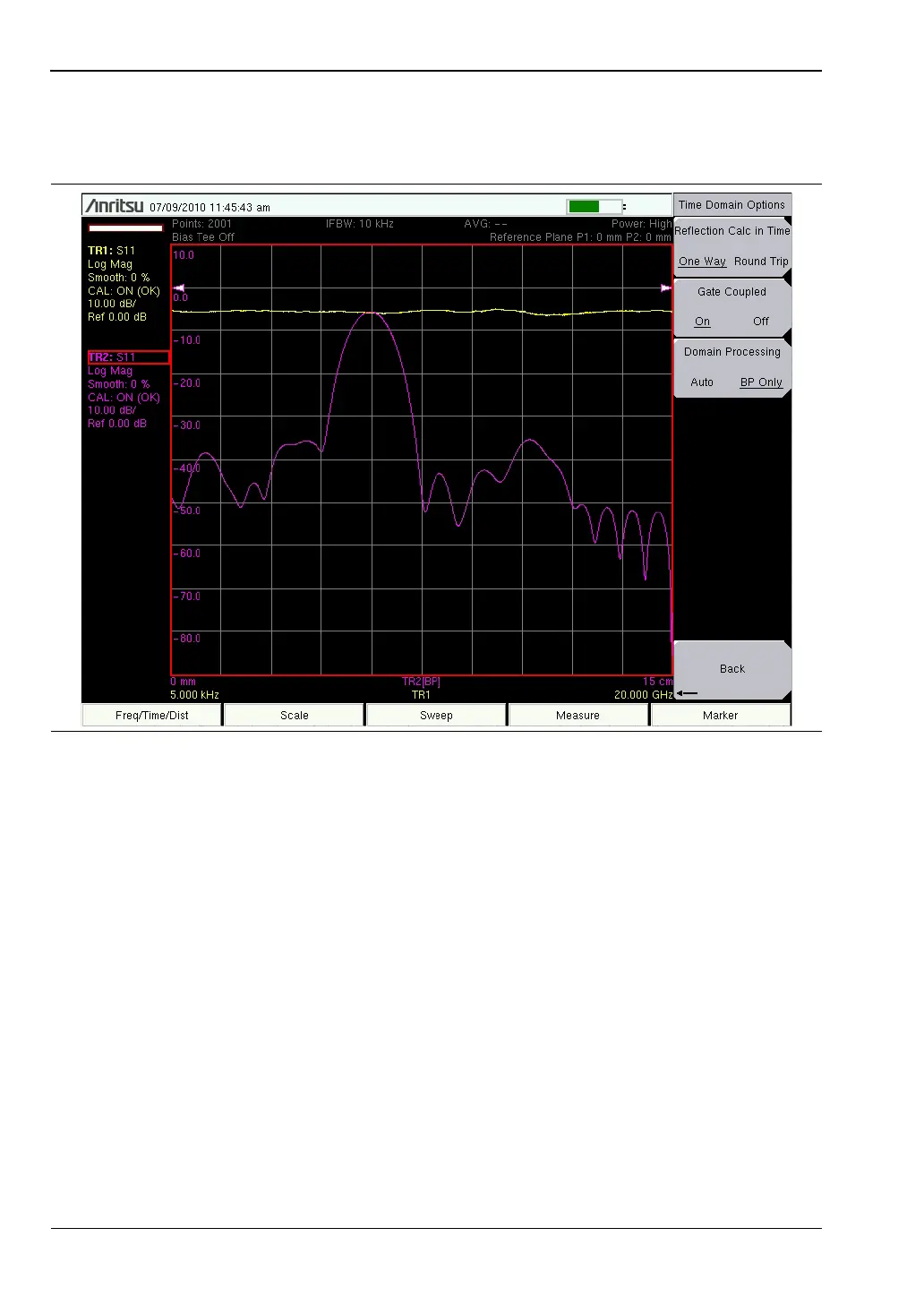

Figure 8-6. Band Pass Return Loss Using Impulse Response
