4-5 2-Port Amplifier Measurement VNA Measurements
4-12 PN: 10580-00289 Rev. K Vector Network Analyzer MG
The 5 kHz low end of the MS20xxC VNA Master facilitates the characterization of low
frequency resonances that are commonly caused by bias networks. The screen-captured
measurement that is illustrated in Figure 4-11 shows the difference between an amplifier
with proper low frequency biasing (TR1) and one with a defective bias inductor (M1).

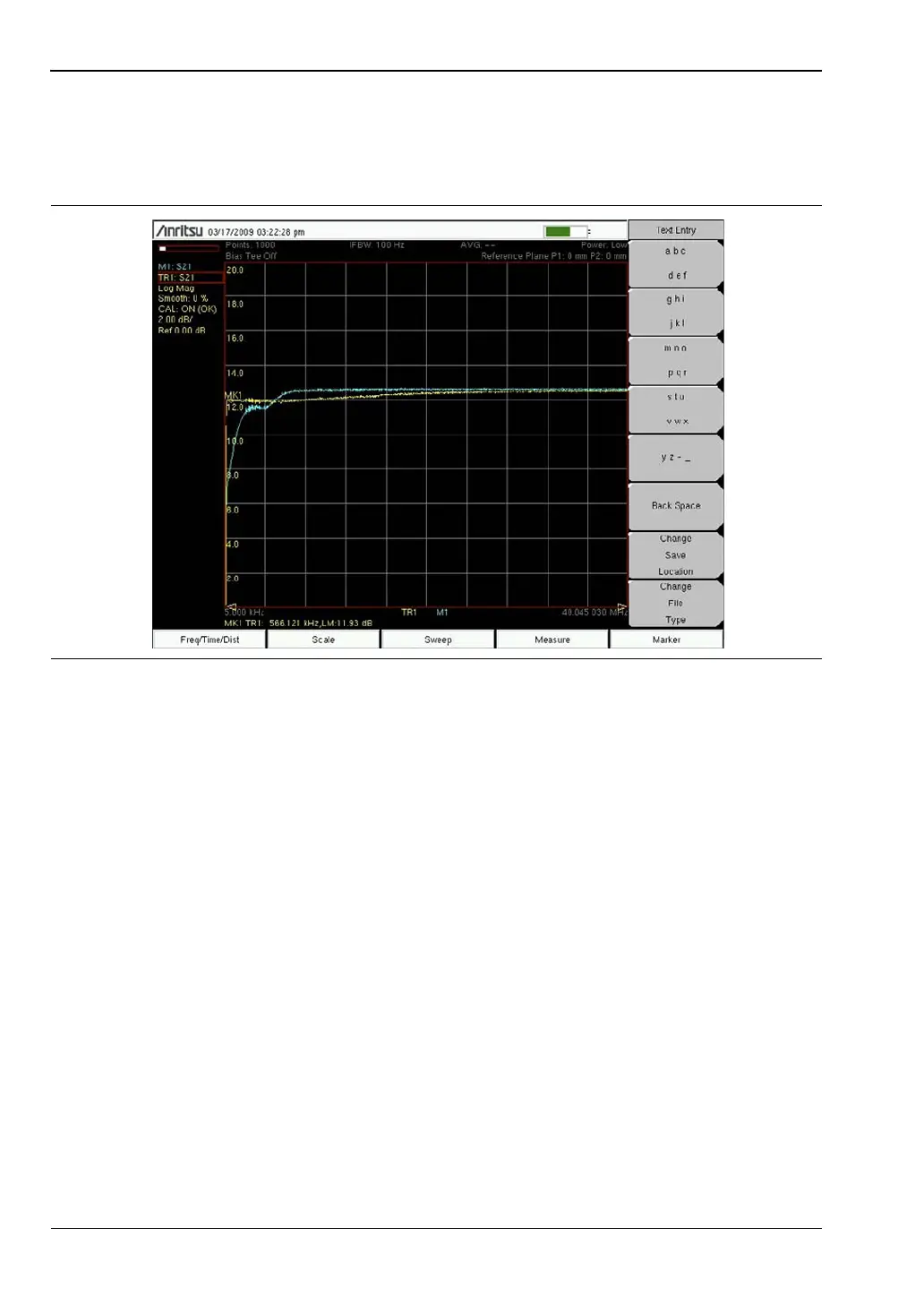

Figure 4-11. Proper Biasing versus Defective Bias Inductor
