14. Press the Measure function hard key and select VSWR from the Graph Type Selector
list box to view the match in VSWR. Figure 5-5 is displaying a VSWR measurement
and the Measure menu of the Field setting when Display Type is Single. The example in
this figure may not match the display on your instrument..

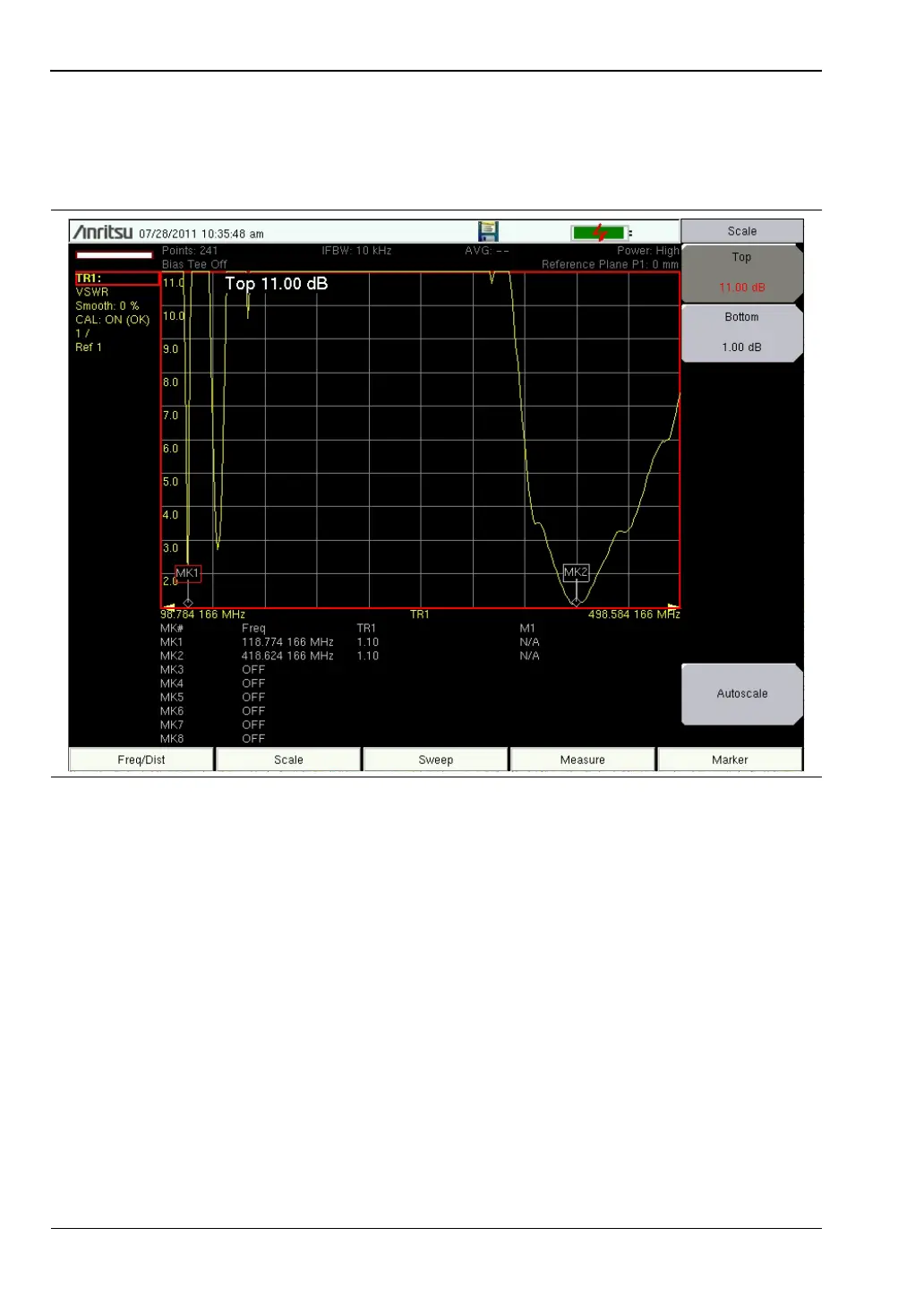

Figure 5-5. Display Type Single – VSWR Measurement
