AUTION MAX AX-4030 OPERATING MANUAL
4 Prepare a white check strip.
1 Take a white check strip out of the container.
• Keep the container handy for reference to the
reflectivity after measurement.
5 Measure the first check strip (white).
1 Open the cover of the feeder selected in 3 .
• Turn the locking lever of the feeder
counterclockwise to open the feeder.
2 Make sure the loading slot is visible.
3 Place the first check strip (white strip) in the loading
slot.
NOTE: Hold the test strip with the black marker to
the rear of the feeder and facing down. Put the
whole strip down on the loading slot. Incorrect
loading may cause trouble to occur.
4 Press Start .
• Check measurement will start.
REFERENCE: To stop check measurement in
progress, press Stop . The instrument will
proceed to the breaking process before putting
itself back on standby.

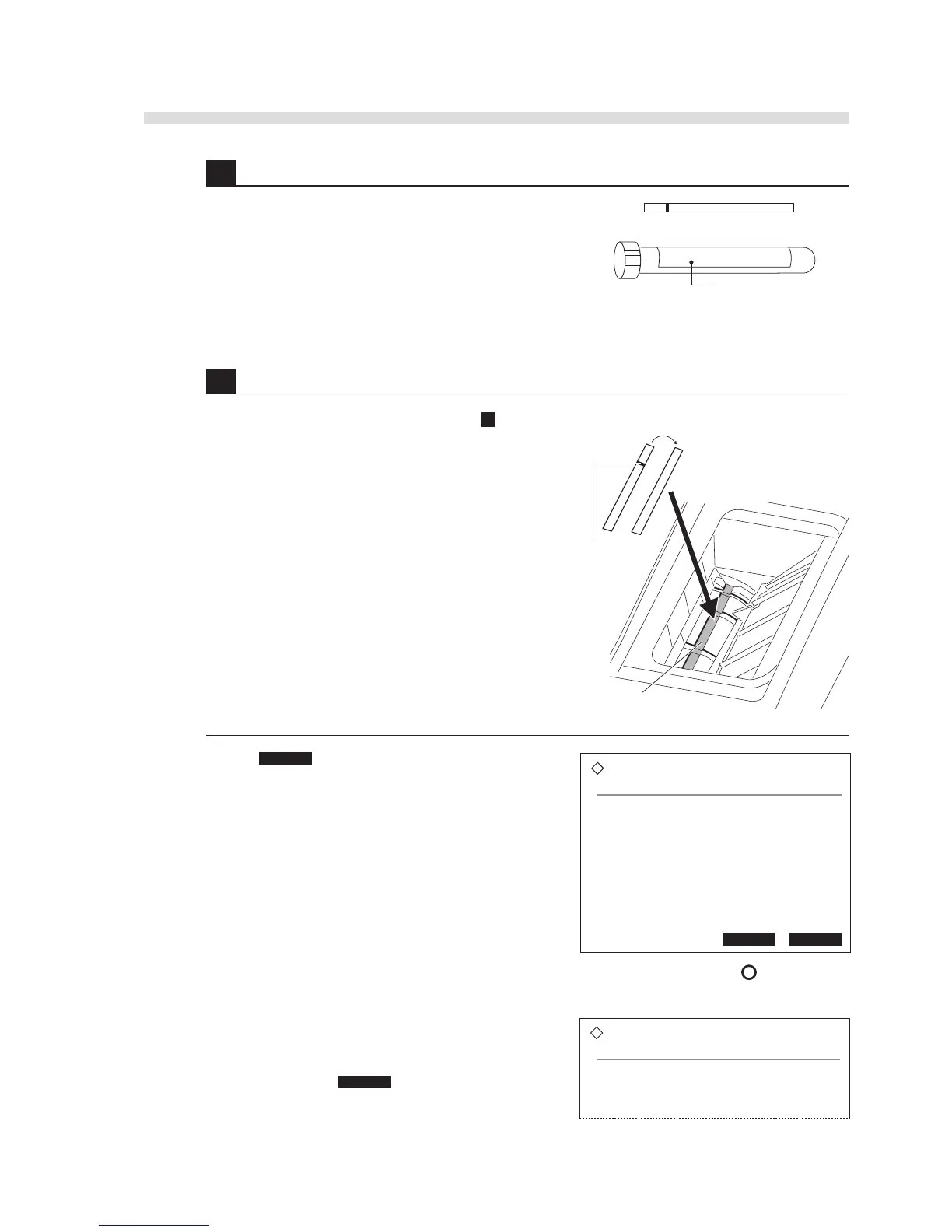

White check strip
Reflectivity label
Loading slot
Black marker
Pad area facing down
White check strip
Check measurement
(5300) 2006-01-09 14:10
Set check strip.
Start Go back
Check measurement
(5300) 2006-01-09 14:10
Measuring...
Please wait...
