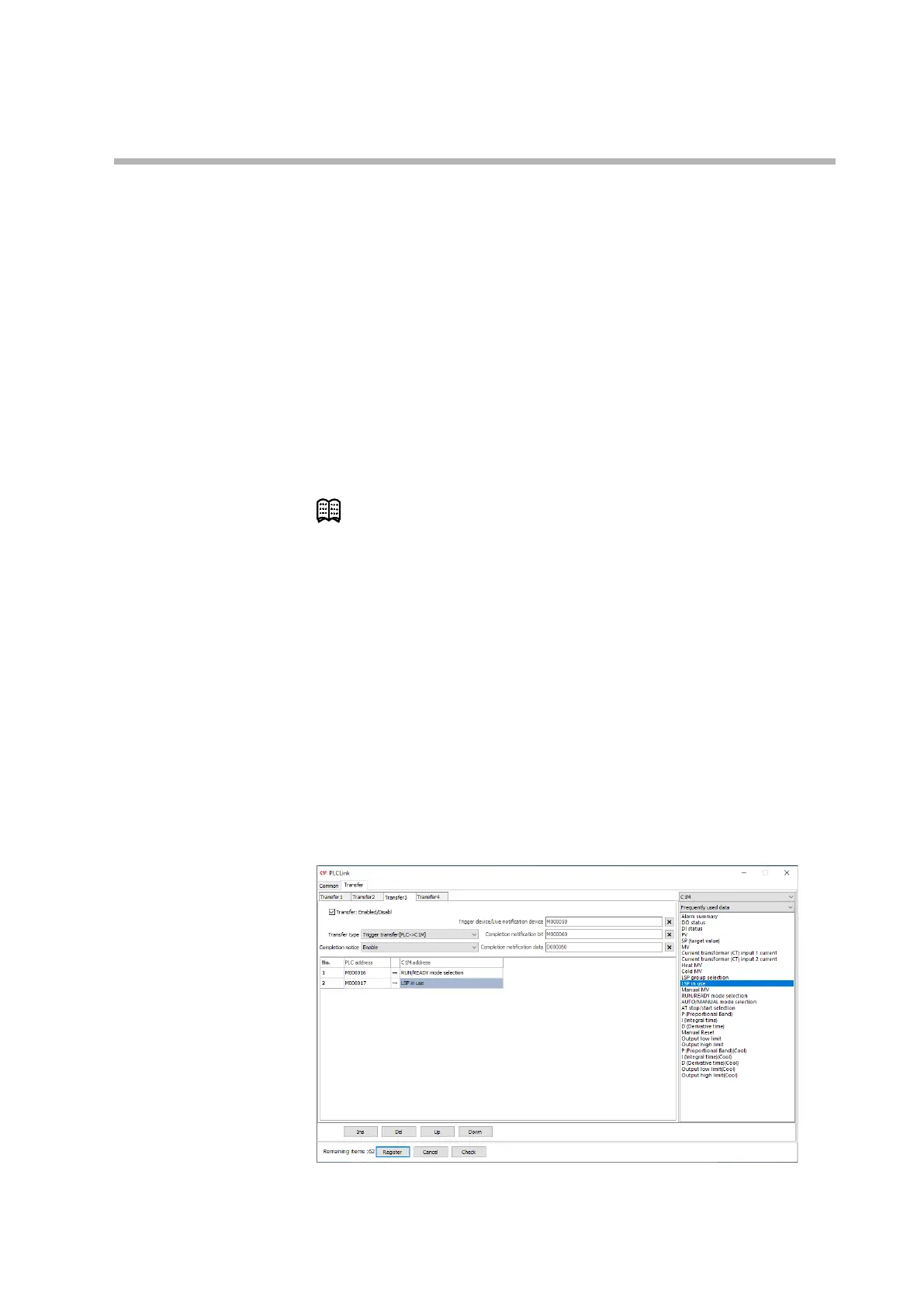

9-15
Chapter 9. PLC Link Communication Function
z
Triggered data transfer (PLC → C1M)
Used for writing parameters from the PLC to the C1M at a time determined by the
PLC.
This example shows the transfer of M000016 and M000017 to the C1M mode
setting when M000050 changes from OFF to ON.
z Transfer operation settings
Transfer type: Triggered data transfer (PLC → C1M)
Trigger device: M000050
Completion notification bit: M000060
Completion notification data: D000050
Note
• If [Notification device initialization] on the [Common] tab is set to 0
(enabled), 0 is written to the trigger device when a trigger is detected.
• If [Notification device initialization] on the [Common] tab is set to 0
(enabled), 0 is written to the device specified by [Completion notification
bit] when a trigger is detected.
• After the data transfer, “1” is written to the completion notification bit.
• If the data transfer is successful, 0 is written to the device specified by
[Completion notification data]. If there is an error in the transfer, a value
other than 0 is written to the device.
z Transfer data settings
M000016 → RUN/READY mode selection
M000017 → LSP in use
