Chapter 4. Wiring
z
Recommended crimp terminal lugs
Use crimp terminal lugs compatible with M3 screws.
A
B B
C
Mounting
method
Compatible
screw
Terminal dimensions
(mm)
Compatible
wire size
J.S.T. Mfg. Co., Ltd.
Model No. (reference)
A B C
C1MT
(for panel
mounting)
M3 6.1 5.8
max.
5.5–7.6 0.3–1.2 mm
2
22–16 AWG
V1.25-MS3
(round terminals)
V1.25 B3A
(Y terminals)
Handling Precautions
• If this device is installed where there is considerable vibration or shock, be
sure to use round crimp terminal lugs to prevent wires from coming off
the terminals.
• Be careful not to allow crimp terminal lugs to touch adjacent terminals.


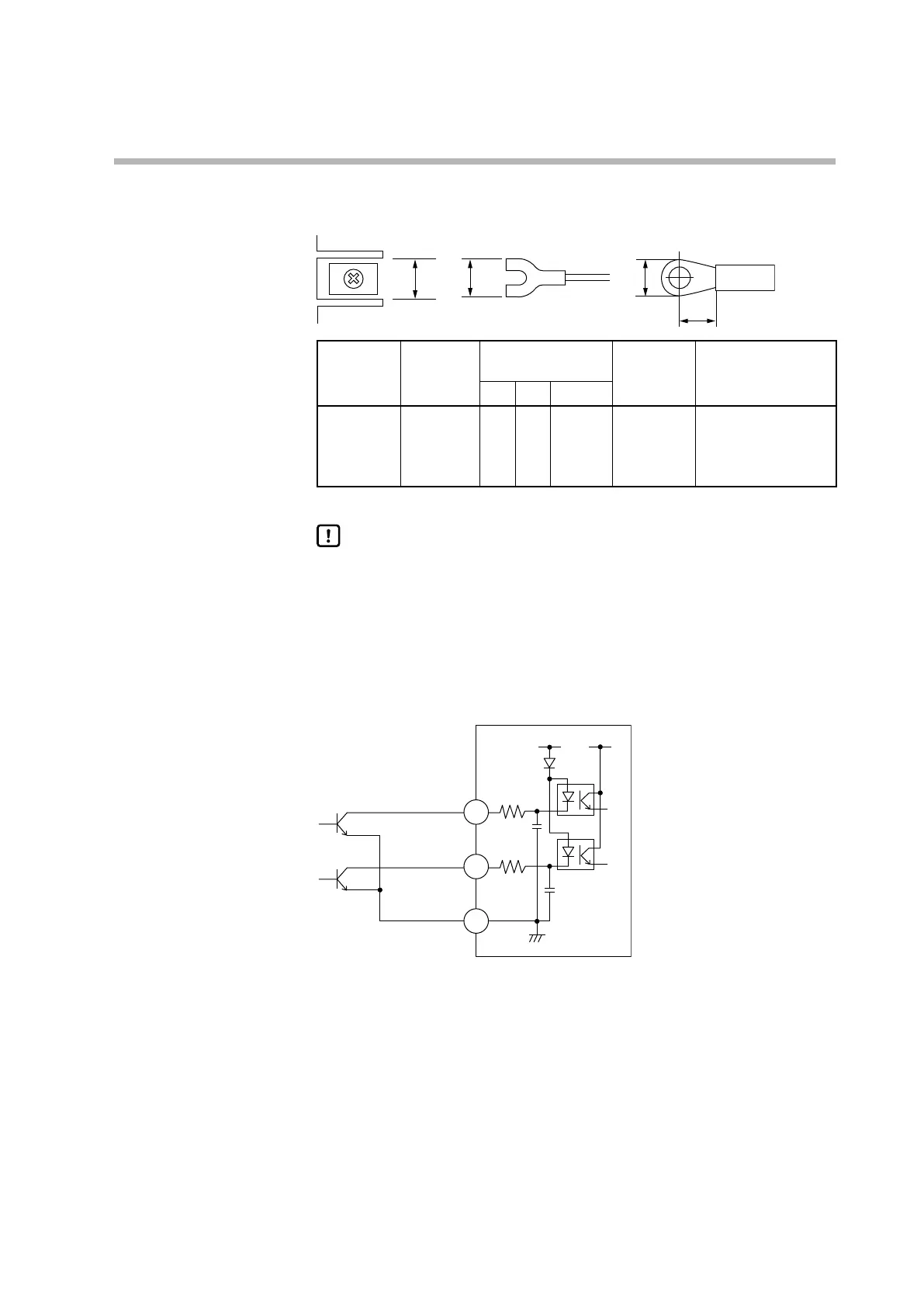

Connecting open collector outputs to digital inputs
16
17
18
5V
Model C1M
