Chapter 5. Functions

DI assignment by Smart Loader Package model SLP-C1F

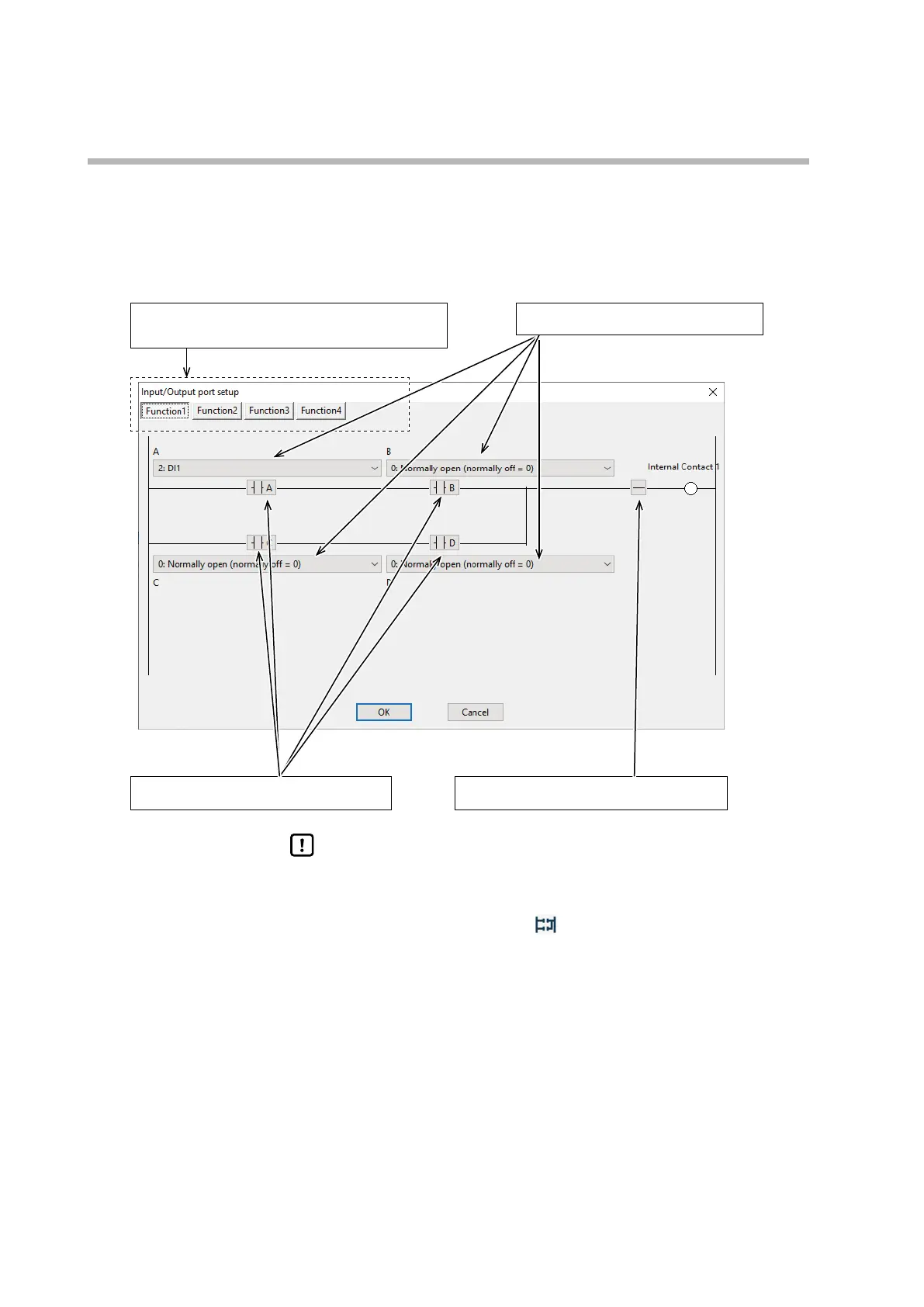

When specifying the settings in the DI assignment bank using Smart Loader
Package model SLP-C1F, select [Edit] → [Input/Output port setup] from the input
menu. This will display a screen for easy setup of the input bit function type, input
assignment, input assignment polarity, and function result polarity.
Select an input bit function.
The ladder changes depending on the selected function.
Select whether to reverse assignments A to D. Select whether to reverse the bit function result.
Select the setting for the four inputs A to D.
Handling Precautions
• In addition to selecting from the menu, you can also open the [Input/
Output port setup] screen by the following operations.
•
Click the I/O port setting icon
•
Right-click an input bit function setting
•
Press Ctrl + P
