Heating/cooling output
If C26 (heat/cool control ) is set to 1 (use (individual PID)), the heating and cooling
MVs shown in the figures below are output in accordance with the setting for

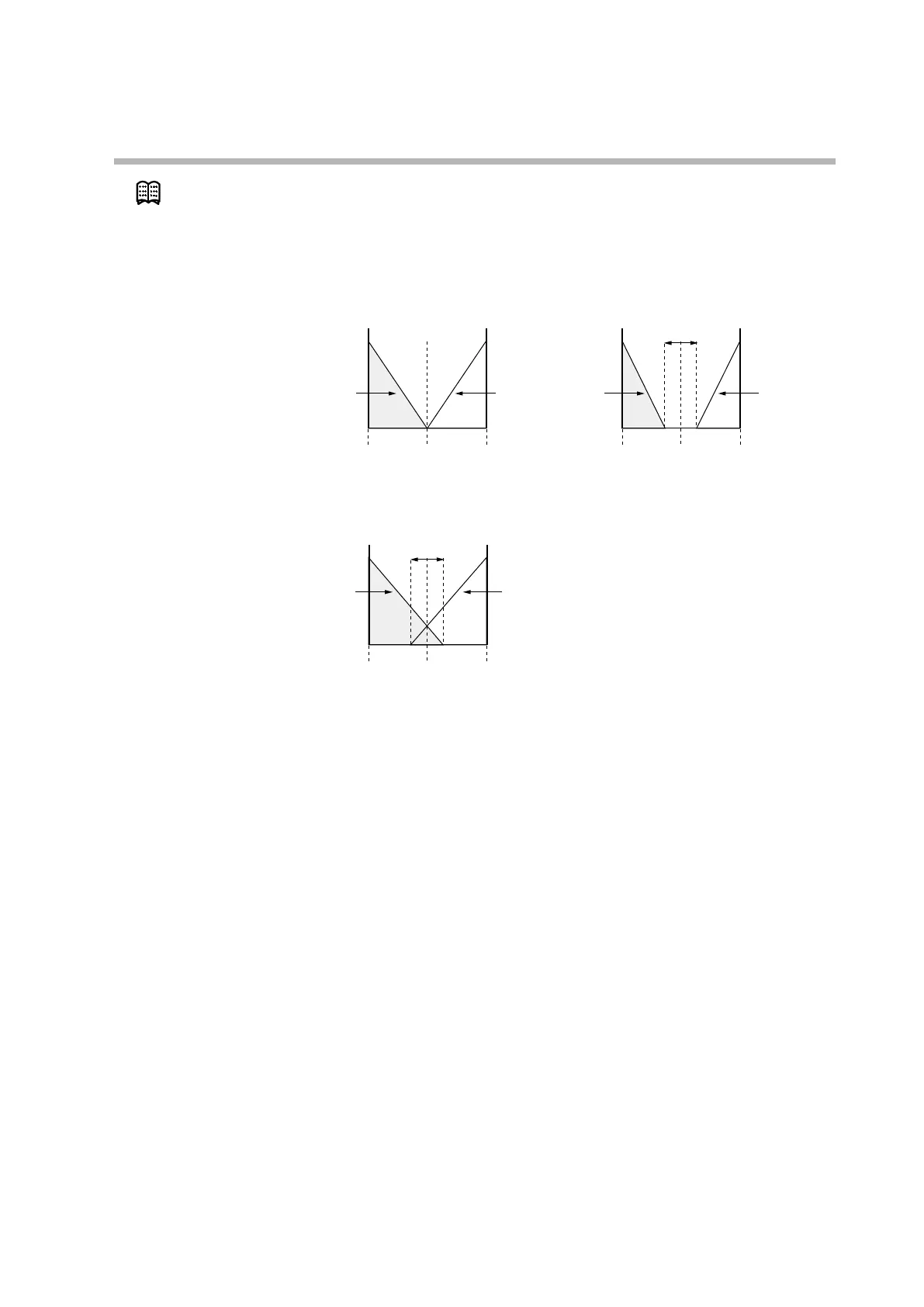

“Heat/cool control dead zone.”
100.0 %
0.0 %
Heating
MV
100.0 %
Cooling
MV
0.0 %
0.0 % 50.0 % 100.0 % MV
100.0 %
0.0 %
Heating
MV
100.0 %
Cooling
MV
0.0 %
0.0 % 50.0 %
Dead zone
When the dead zone is more than 0.0 %
When the dead zone is 0.0 %
100.0 % MV
100.0 %
0.0 %
Heating
MV
100.0 %
Cooling
MV
0.0 %
0.0 % 50.0 %
Dead zone absolute value
When the dead zone is less than 0.0 %
100.0 % MV
The figure below shows the relationship between the MV low limit, MV high limit,
cooling MV low limit, and cooling MV high limit.
MV low limit ≤ heating MV ≤ MV high limit
Cooling MV low limit ≤ cooling MV ≤ cooling MV high limit
