Product description | EPS 625 | 43 en
3.5 Description of unit
3.5.1 EPS 625
1
23
4
5
6
7
9
10
1112
13
14
18
19
20
21
22
458868_96Nkv
1516
8
24
17
23

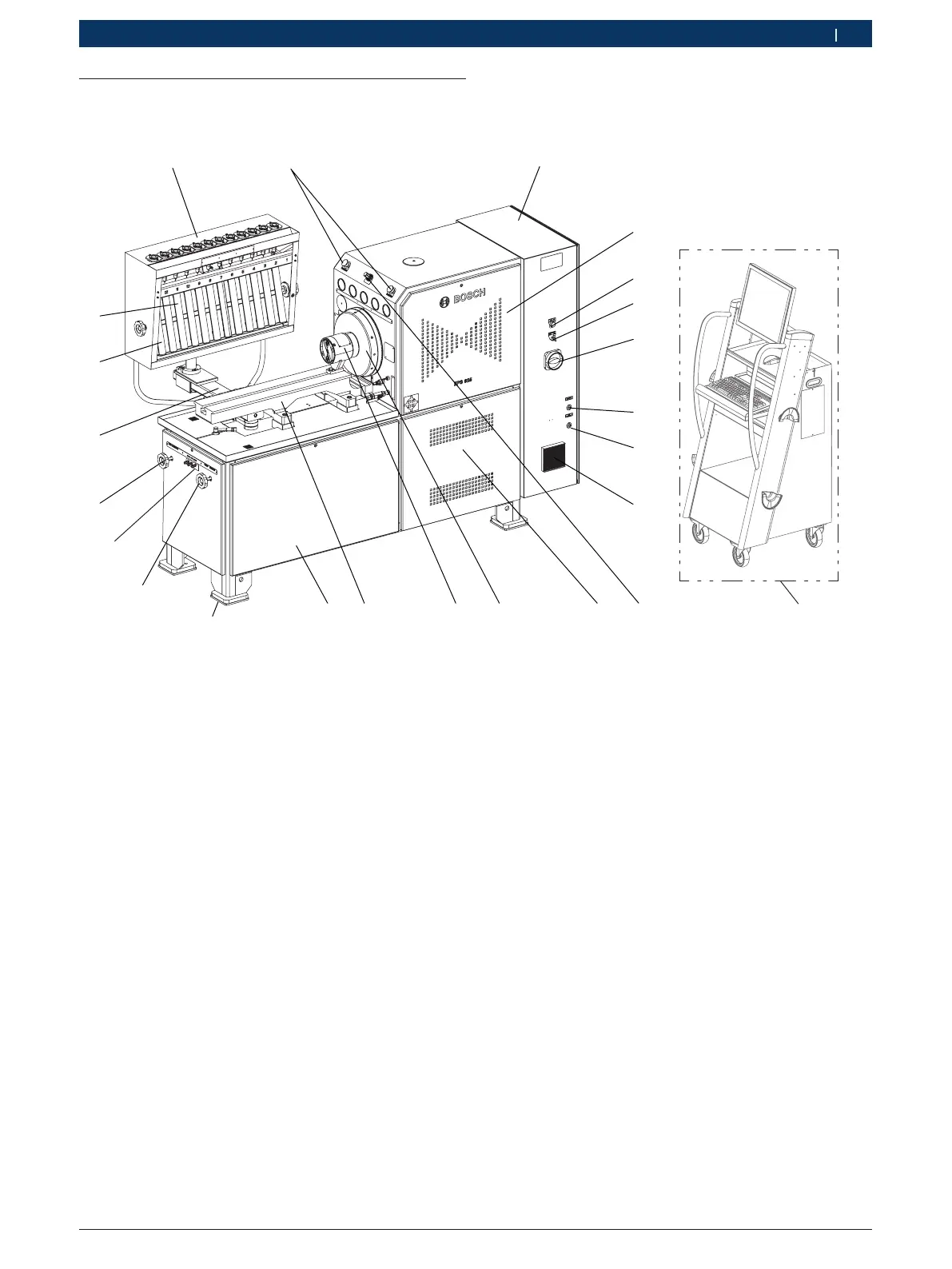

Fig. 1: EPS 625
1 Measuring glass carrier
2 Emergency stop
3 Control cabinet
4 Motor Right Hand (RH) side panel
5 "Mains on" indicator
6 MGT illumination switch
7 Master switch
8 Bushing for 230 V AC power supply
9 USB port
10 Air grid
11 Air pressure regulator
12 Bottom panel - Front
13 Graduated flywheel
14 Coupling guard
15 Fuel injection pump mounting bed
16 Bottom panel - Rear
17 Rubber insulating pads
18 Pressure control valve regulator
19 12 / 24 VDC banana sockets
20 Lubricating oil pressure regulator (optional)
21 Swivel arm
22 Swivel plate
23 Measuring glass
24 Trolley (special accessory) for PC and PC accessories (printer,
monitor, keypad, mouse etc.)
