1 689 988 262 2017-12-26| Robert Bosch GmbH
70 | EPS 625 | Technical dataen
Property Unit Value
Noise
Workplace emission sound pressure level L
pa
with drive motor
running at a speed of 4000 min-1 and without injection pump
dB
81
Auxiliary power supply
Adjustable DC power supply for start / stop magnet V 12 /24
A 7
Permissible ambient temperature ranges
Maximum ambient temperature °C 40
Operating range °C 5 to 40
Accuracy °C 10 to 30
Storage temperature °C -25 to 60
Miscellaneous
Average time taken to heat test oil from 25 °C to 45 °C minutes approximately 20 mins
Minimum recommended quantity of test oil in the test oil tank lts 30

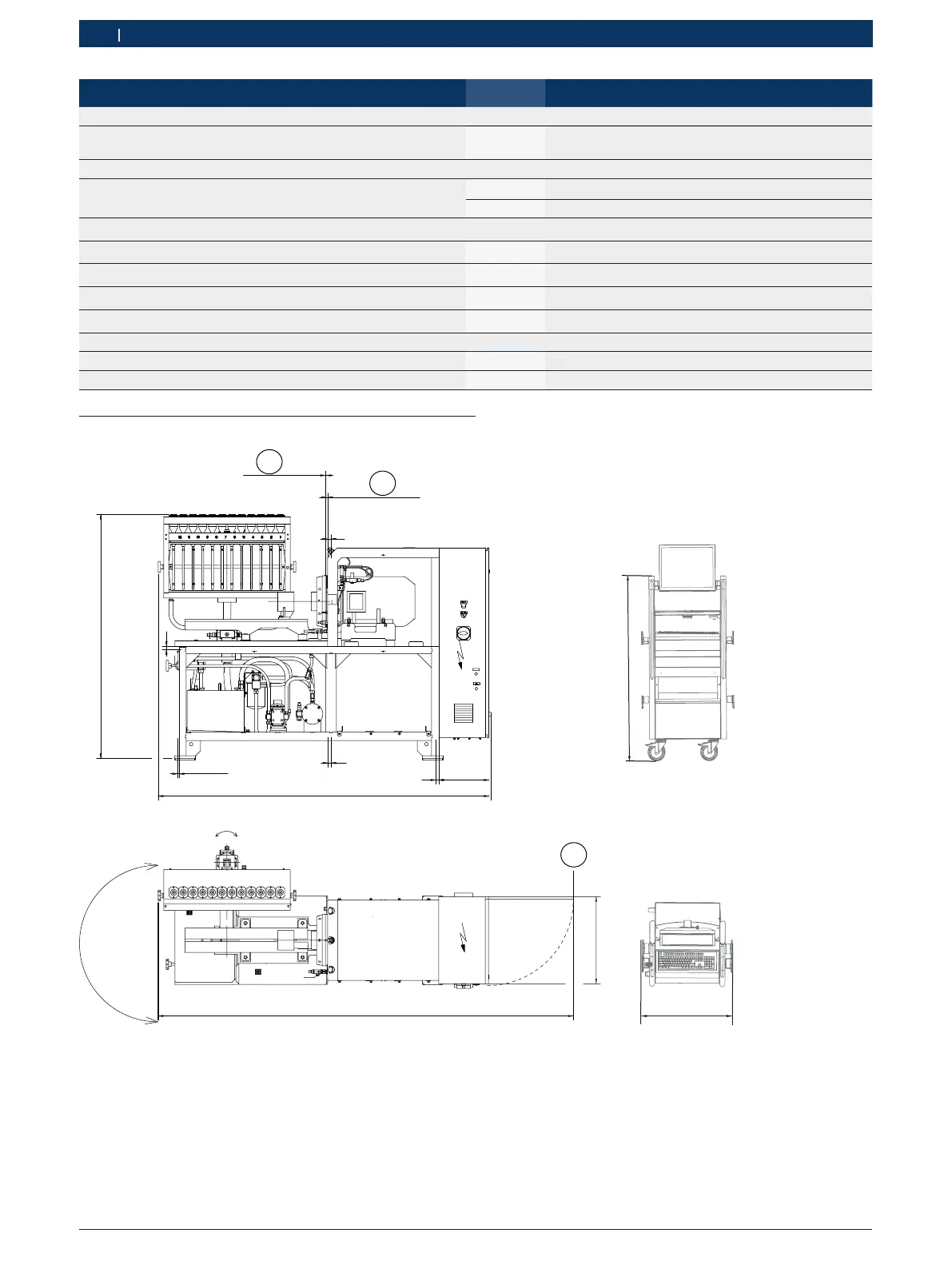

9.2 Bench Layout
2320
1715 (max:1790)
354
2910
610
20
20
20
10
24
7.5
4.1
15⁰
180⁰
A
B
458868_100Nkv
230V AC 3A
1346
C
C
Fig. 26: Bench layout
(All dimensions in mm)
A Gap between flywheel and pointer
B Gap between pointer and front panel
C Maximum position with control cabinet door open
