NNHOP backup tunnels also provide protection from link failures by bypassing the failed link as well as the
node. Figure 19: NNHOP Backup Tunnel with SRLG constraint illustrates an NNHOP backup tunnel.

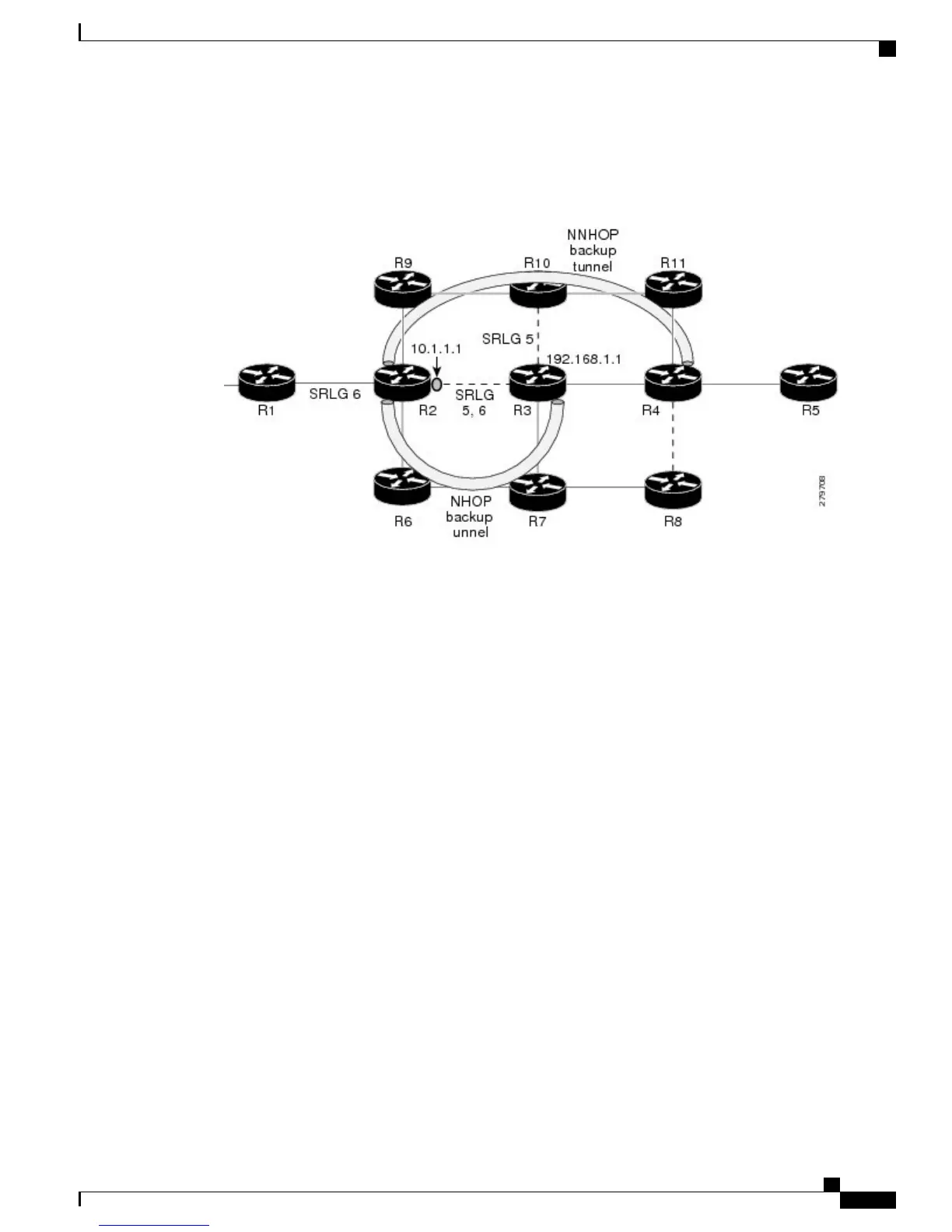

Figure 19: NNHOP Backup Tunnel with SRLG constraint
In the topology shown in the above figure, the backup tunnel path computation can be performed in this
manner:
•
Get all SRLG values from the exclude-SRLG link (SRLG values 5 and 6)
•
Mark all links with the same SRLG value to be excluded from SPF
•
Verify path with SRLG constraint
•
Path computation as CSPF R2->R9->R10->R4
Related Topics
Configuring the SRLG Values of Each Link that has a Shared Risk with Another Link, on page 294
Creating an Explicit Path With Exclude SRLG, on page 296
Using Explicit Path With Exclude SRLG, on page 298
Creating a Link Protection on Backup Tunnel with SRLG Constraint, on page 300
Creating a Node Protection on Backup Tunnel with SRLG Constraint, on page 303
Configure the MPLS-TE Shared Risk Link Groups: Example, on page 353
