Chapter 4 Front Panel Operation
98

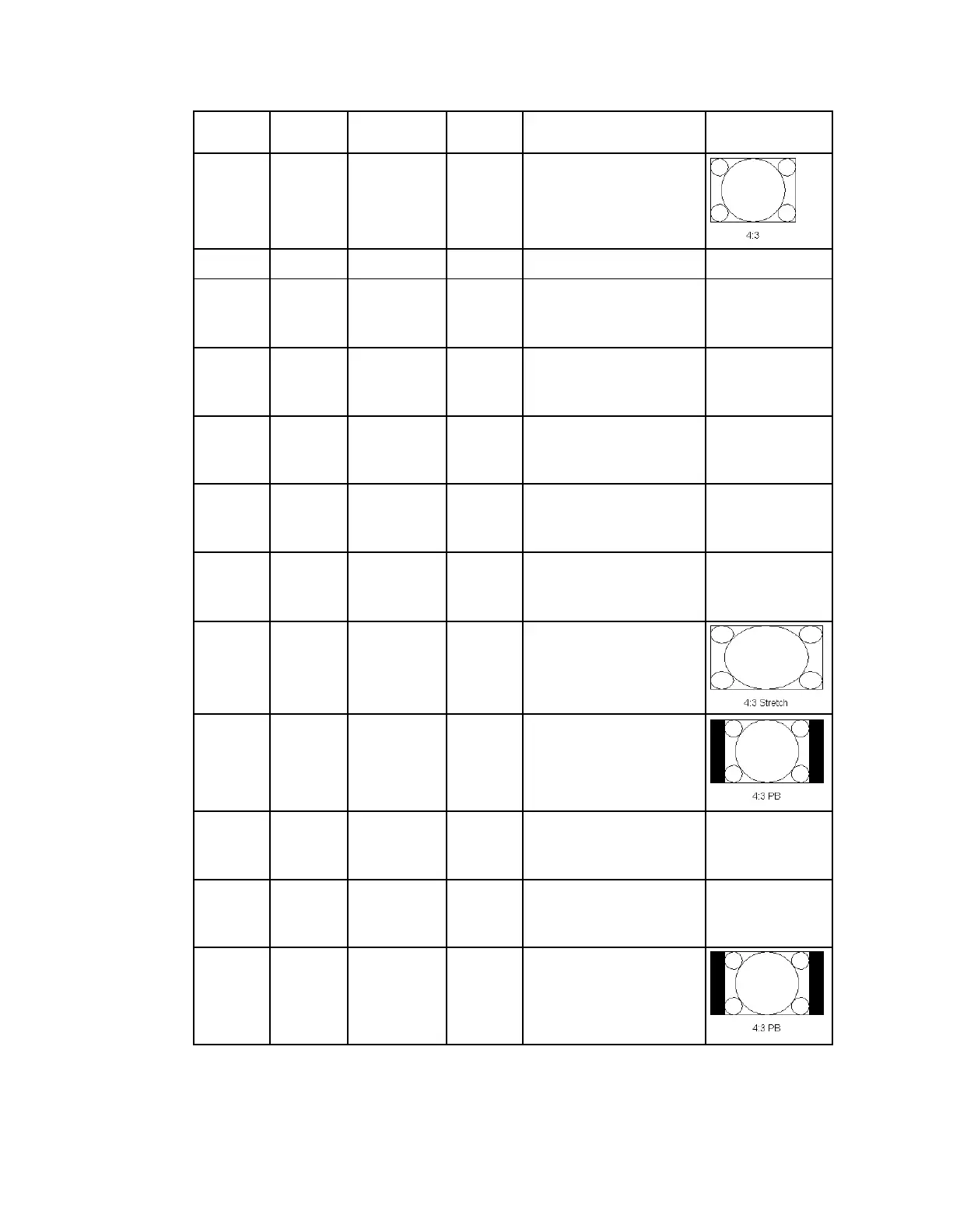

Stream
TV A/R
Conversion
Act Conv
Description
4:3
4:3
None
None
Normal Picture
4:3
4:3
Auto
None
No conversion
–
4:3
4:3
16:9 L/B
None
Conversion is not
possible. Normal
picture.
–
4:3
4:3
4:3 CCO
None
Conversion is not
possible. Normal
picture.
–
4:3
4:3
4:3 P/B
None
Conversion is not
possible. Normal
picture.
–
4:3
4:3
14:9
None
Conversion is not
possible. Normal
picture.
–
4:3
4:3
16:9 SCALE
None
Conversion is not
possible. Normal
picture.
–
4:3
16:9
None
None
Picture is short and
wide.
4:3
16:9
Auto
4:3 P/B
Uses 4:3 P/B.
4:3
16:9
16:9 L/B
None
Conversion is not
possible. Picture appears
short and wide.
–
4:3
16:9
4:3 CCO
None
Conversion is not
possible. Picture appears
short and wide.
–
4:3
16:9
4:3 P/B
4:3 P/B
4:3 picture is centered in
a pillar-style box.
