Cisco D9854 Installation And Configuration Guide

Chapter 4 Front Panel Operation
64
Status Menu: TS Output
Output Status
Menu Item
Description
Parameters
Output
Indicates the output type.
ASI or MPEGoIP
Rate (Mbps)
Indicates the current output bit rate.
0 to 206 Mbps
Free (Mbps)
Indicates the available bandwidth, in Mbps
(without stuffing).
Status Menu - IP
To view the IP menu from the Status menu, press the RIGHT arrow key four times.
The IP menu provides Link, Redundancy, and MOIP status information.

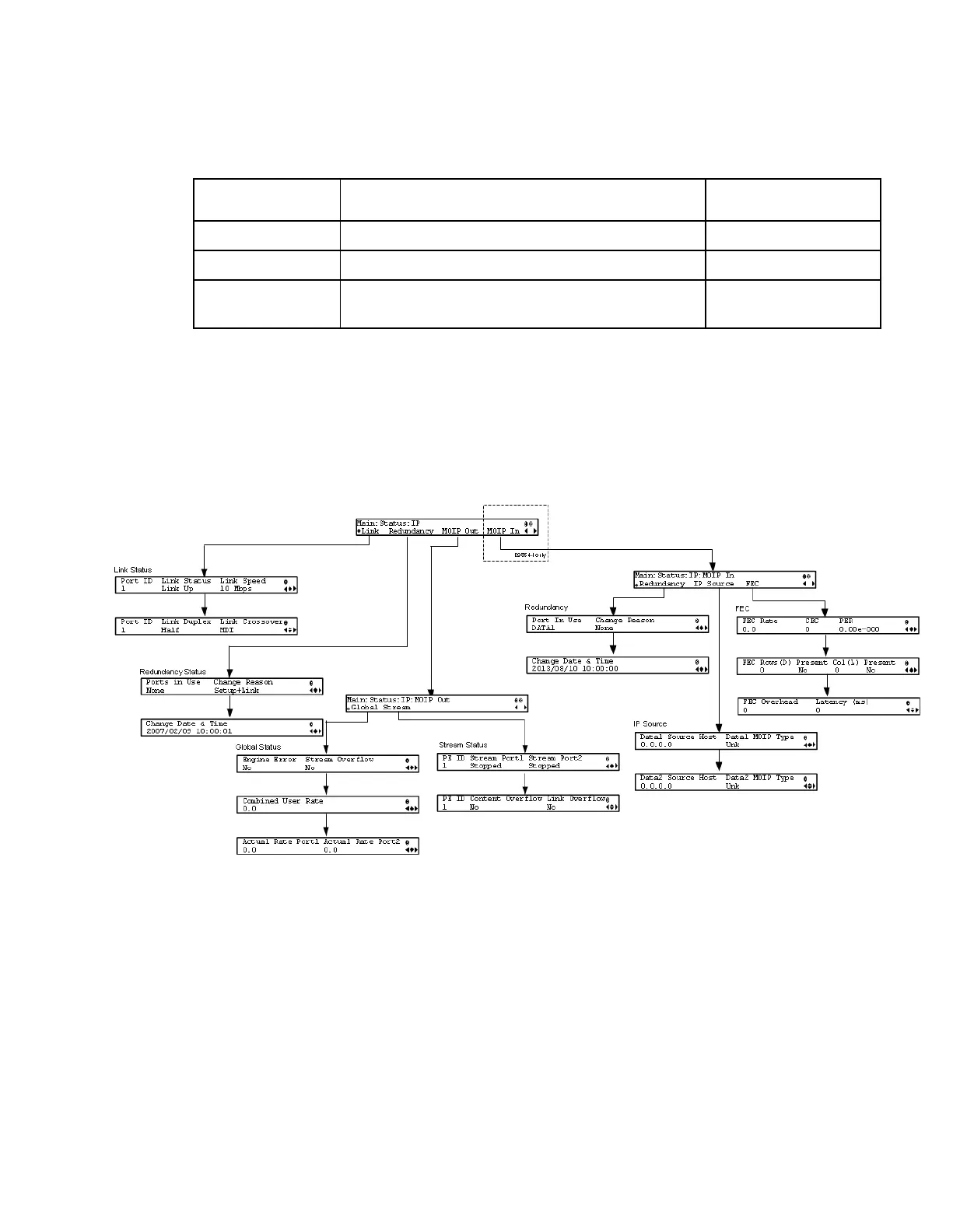

The IP menu has the following structure:
Link Status
The Link Status parameters display the port information, such as the status, speed,
duplex, and crossover. For D9854, port 1 is the management port and port 2 is the
data port. For D9854-I, port 1 is the management port, port 2 is the Data1 port, and
port 3 is the Data2 port.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
