Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
300

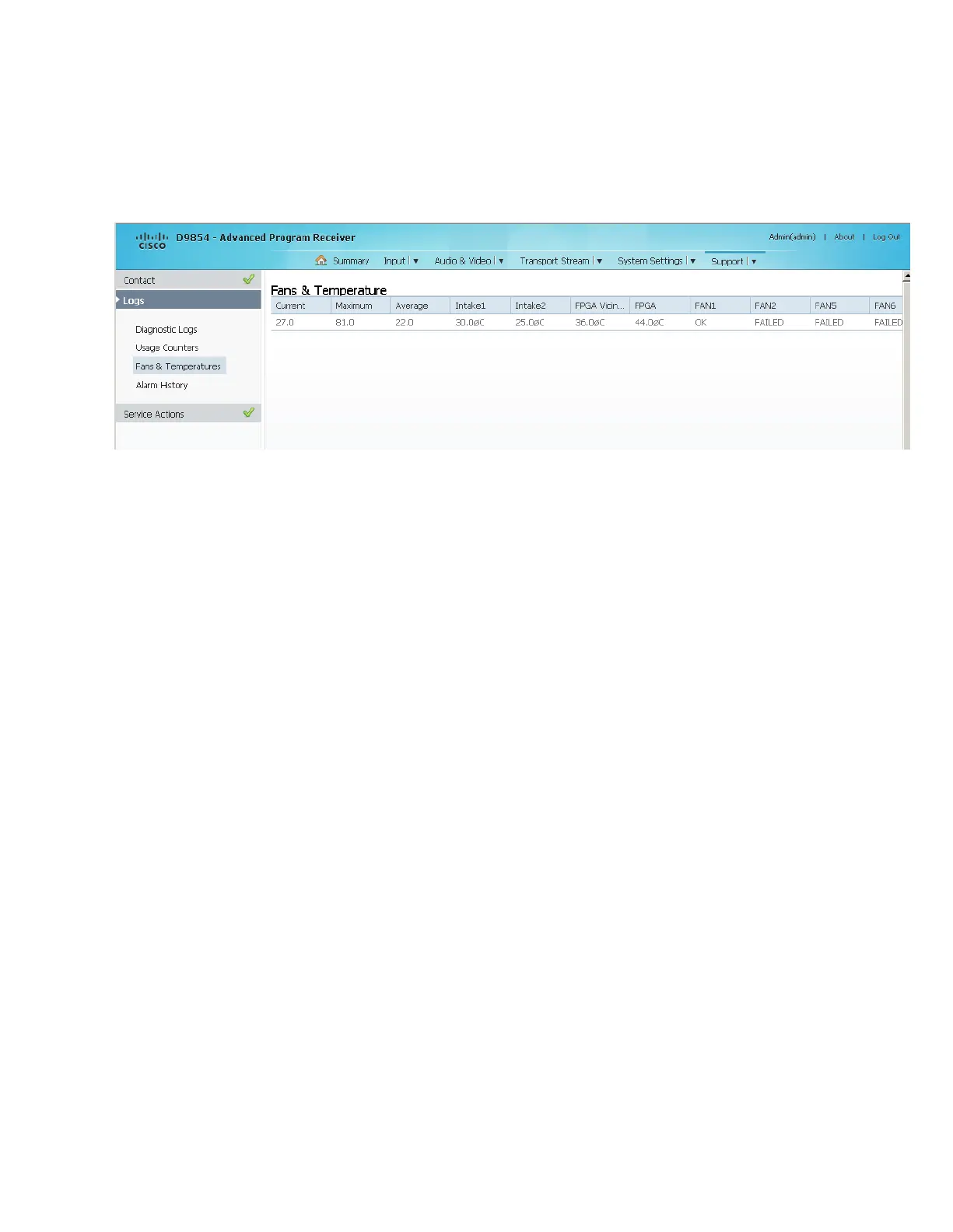

Viewing Operating Board Temperatures
From the user interface of the D9854/D9854-I, choose Support > Fans &
Temperatures.The Fans & Temperatures page is displayed.
The Current column displays the current operating temperature. The Maximum
column displays the maximum operating temperature that has been reached. The
Average column displays the average operating temperature. The values are
displayed in Degrees Celsius.
The FAN1, FAN2, FAN5, and FAN6 columns display the current speed of the four
fans in the D9854/D9854-I receiver.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
