Configuring System Settings
Setting up Alarms and Warnings
To Set Up Alarms
1 From the user interface of the D9854/D9854-I, choose System Settings > Setup.

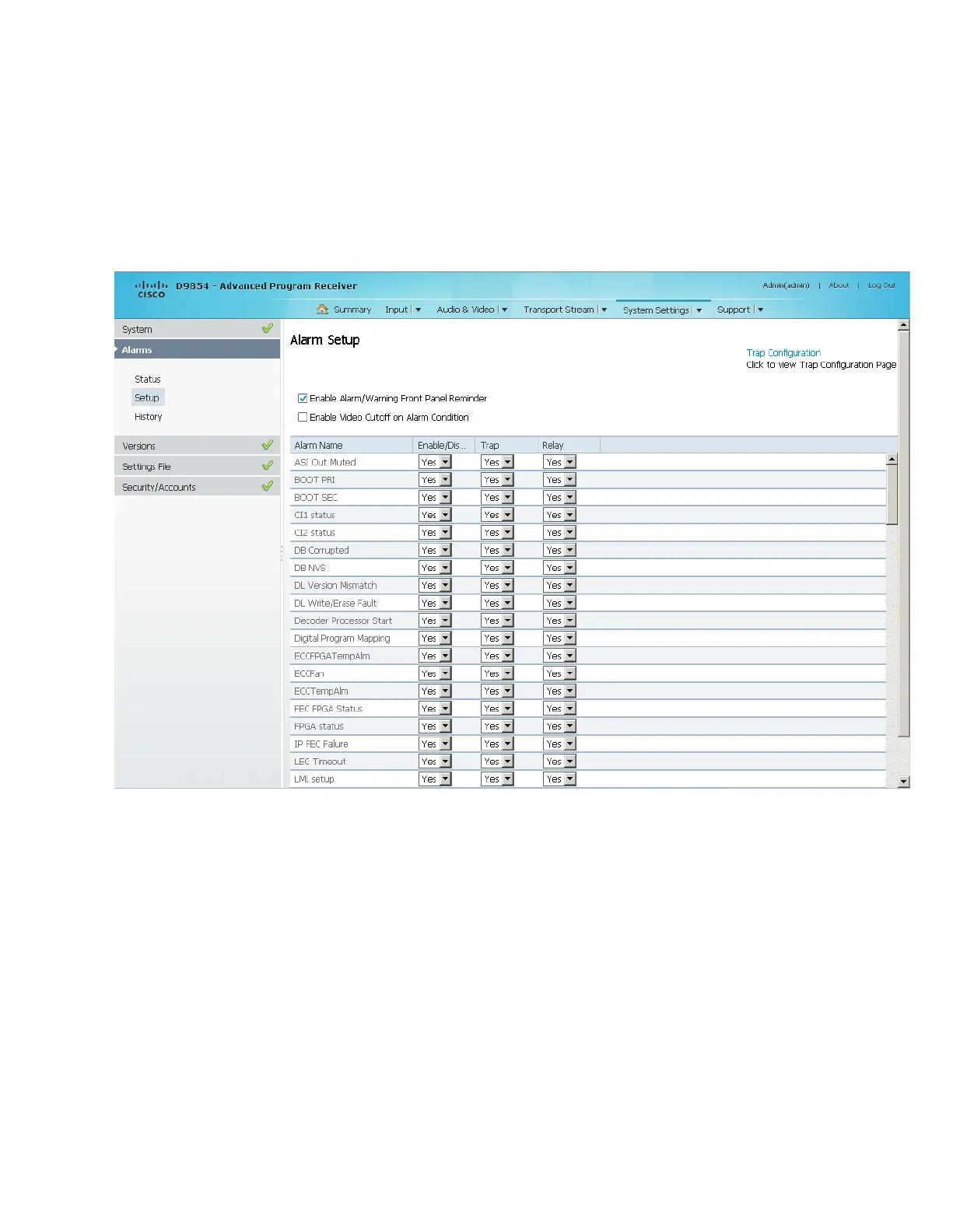

The Alarm Setup page is displayed.
2 Check the Enable Alarm/Warning Front Panel Reminder check box for the
highest priority alarm to flash on the LCD display for a two-second interval
every 10 seconds. The alarm will continue to flash periodically until it is either
cleared or the Enable Alarm/Warning Front Panel Reminder is unchecked.
3 Check the Enable Video Cutoff on Alarm Condition check box to cut off the
video output if any enabled alarm is active on the receiver. When video is cut off,
there will be no horizontal or vertical synchronization on the output. This is
useful for downstream redundancy switching by detecting a loss of video signal.
4 Click the Trap Configuration link to view and/or modify SNMP trap
destinations. The link will open the SNMP page. For more information, see
Setting up SNMP Information and Trap Destinations (on page 273).
5 The Alarm Setup area displays a list of the alarm/fault messages. For more
information on alarm messages, refer to D9854/D9854-I Receiver Alarm
Messages (on page 306).
