Cisco D9854 Installation And Configuration Guide

Chapter 4 Front Panel Operation
54
Status Menu
To view the Status menu from the Main menu, press the SELECT key. The Status
menu indicates the status of the input and output signals, the video and audio
services, and allows you to browse and/or configure the alarms and warnings.
The Status menu is split into four parts; General, Services, TS Input, TS Output, and
IP. Each parameter is described in this section. For instructions on how to select and
store settings, see About the Front Panel (on page 44).

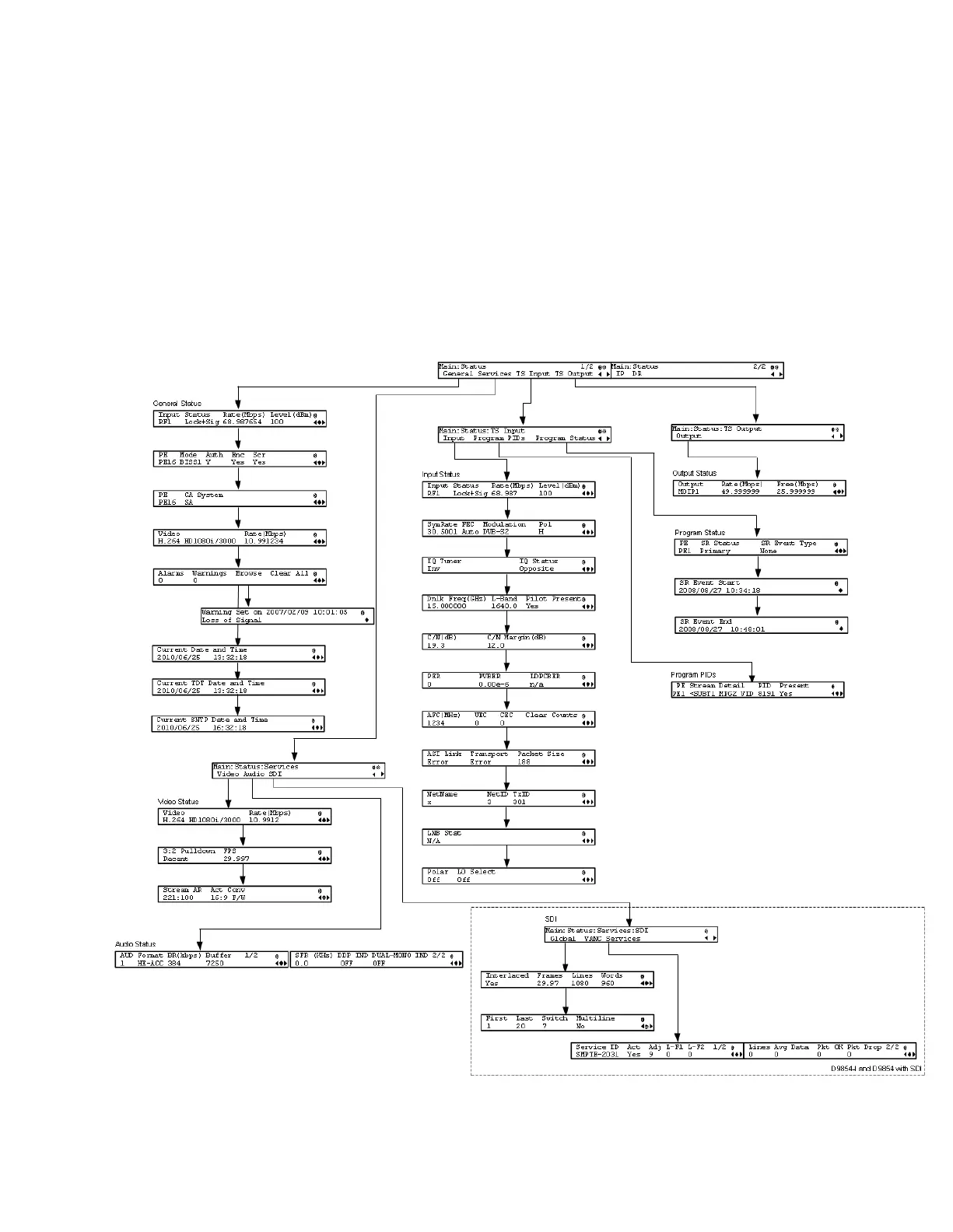

The Status menu has the following structure:

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
