Chapter 2 Quick Setup - Read Me First!
Setting up the MOIP Outputs

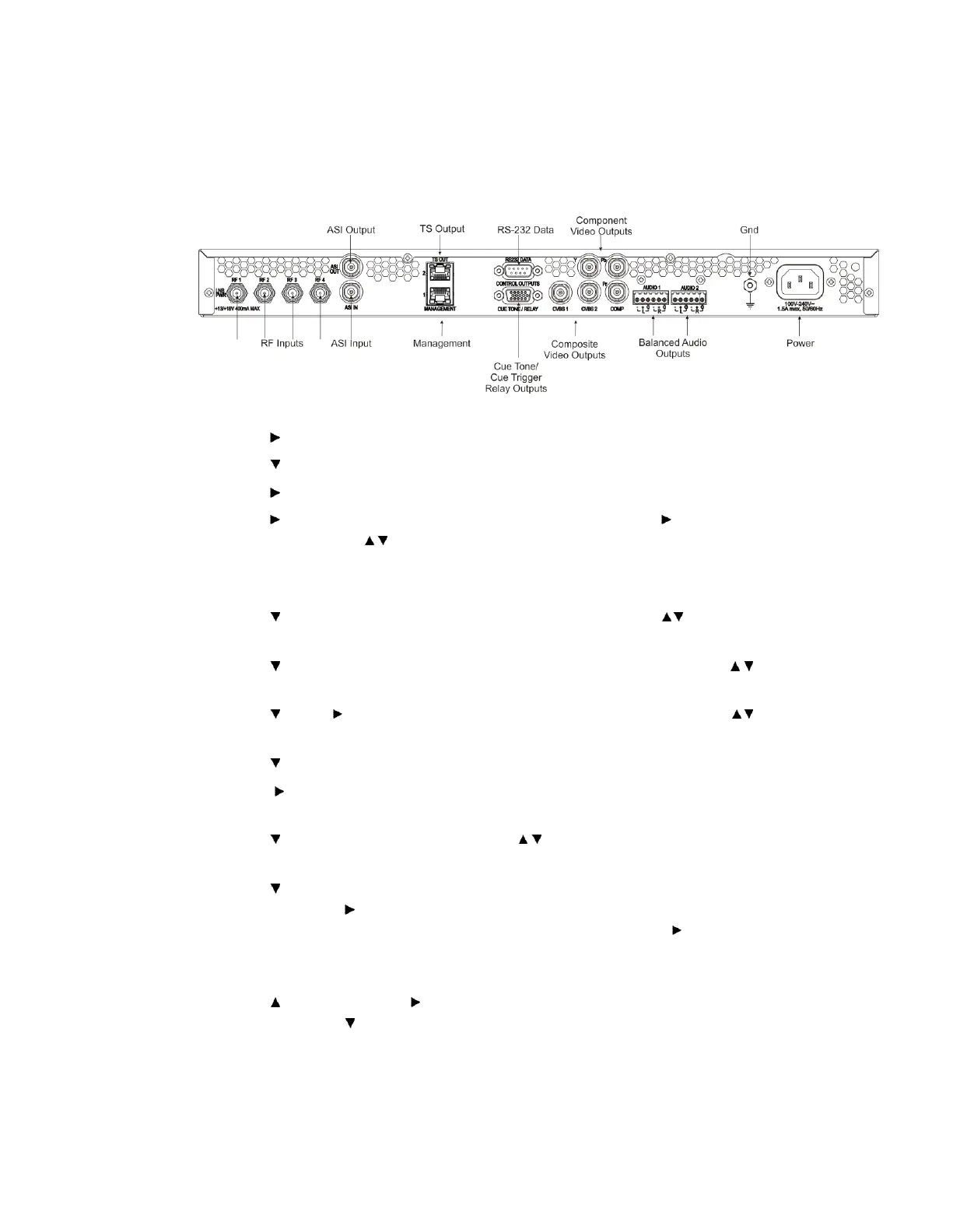

The following displays the rear panel of the D9854 Base Model:
1 Press MENU to move to the Main Menu.
2 Press to move to the Setup menu. Press SELECT.
3 Press to move to the Outputs menu. Press SELECT.
4 Press to move to the TS Out menu. Press SELECT.
5 Press to move to the MOIP menu. Press SELECT. Press . Press SELECT for
Rate Control. Use to select User. Selecting Auto for Rate Control results in the
device setting the output rate to be the same as the input rate. Press SELECT.
Note: You can set the User Rate in Step 9.
6 Press to move to the Output Mode. Press SELECT. Use to choose the
output mode for your application. Press SELECT.
7 Press to move to Descrambling Mode menu. Press SELECT. Use to select
the scrambling mode. Press SELECT.
8 Press . Press to move to Insert Null Packet. Press SELECT. Use to change
the selection to No. Press SELECT.
9 Press to move to the MOIP Streams menu and press SELECT.
10 Move to the User Rate menu. Press SELECT and use the keypad to enter the
desired bit rate. Press SELECT to save changes.
11 Press two times. Press SELECT. Use to change the selection to UDP or RTP.
Press SELECT.
12 Press . Press SELECT. Enter the Destination Address using the keypad. Press
SELECT. Press to move to UDPPort. Press SELECT and enter the port number
using the keypad. Press SELECT to save the change. Press to move to SrcPort.
Press SELECT and enter the port number using the keypad. Press SELECT to
save the change. The default is zero, which allows the system to assign a port.
13 Press two times. Press two times to move to PCR@IP Start menu. Press
SELECT. Press to set value to No. Press SELECT to save the value.
14 Press MENU to exit the menu level and save the changes.
