Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
162

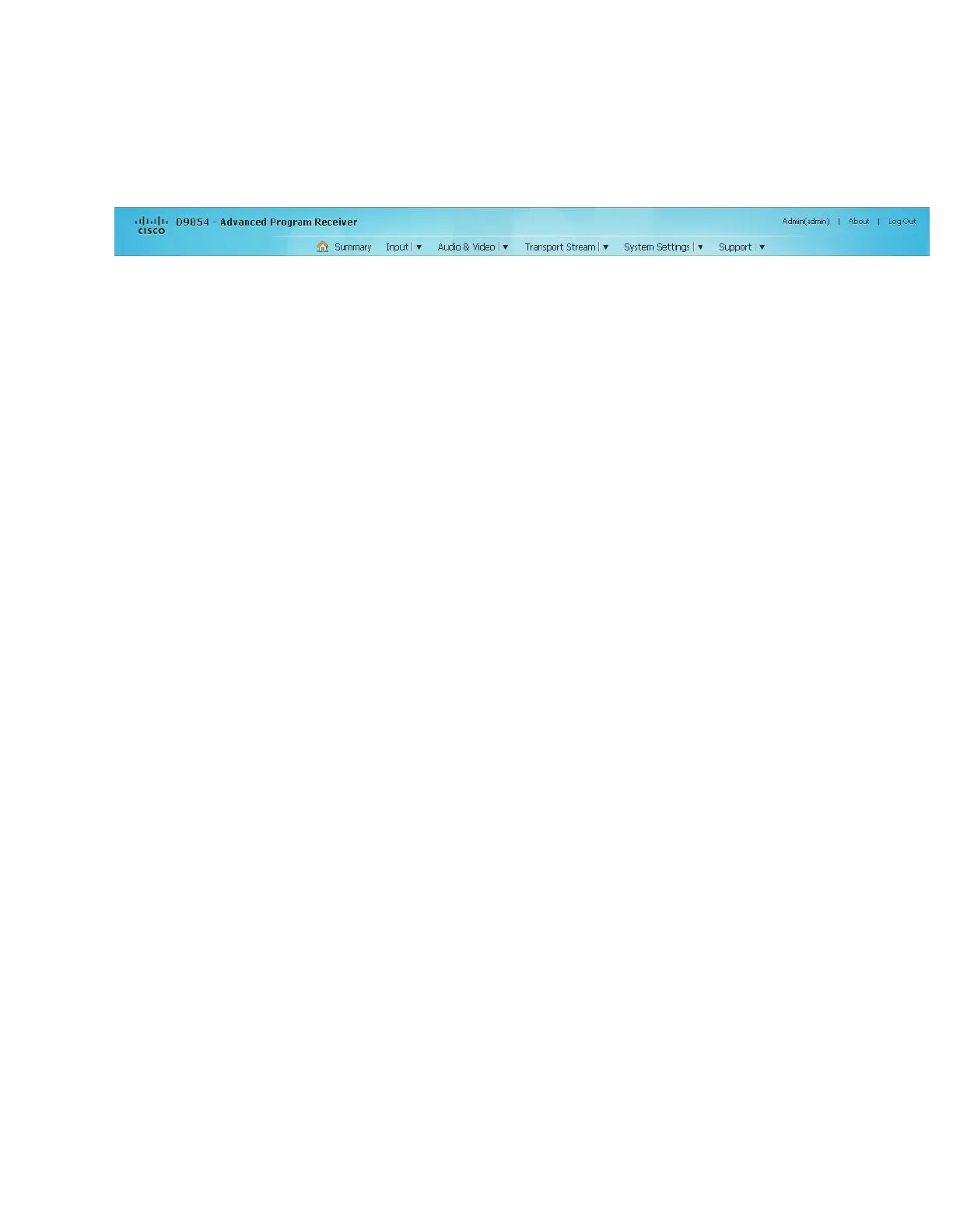

D9854/D9854-I Menus
The D9854/D9854-I web GUI has menus at the top of the page.
The functions for the menus are as follows:
 Summary
From this menu, you can obtain an overview of the D9854/D9854-I operation.
 Input
From this menu, you can:
- Set up RF and ASI inputs
- Set up IP inputs (D9854-I only)
- Configure muting thresholds
- View input status
- Configure channels
- Configure CI (Common Interface) settings
- View PSI, Frequency, and Channel tables
 Audio & Video
From this menu, you can:
- Configure video settings
- Set up closed caption and subtitles
- Configure audio settings
- View current audio status
- Set the cueing parameters
 Transport Stream
From this menu, you can:
- Configure ASI and MPEGoIP outputs
 System Settings
From this menu, you can:
- View alarm and warning status information
- Configure Ethernet ports

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
