Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
298

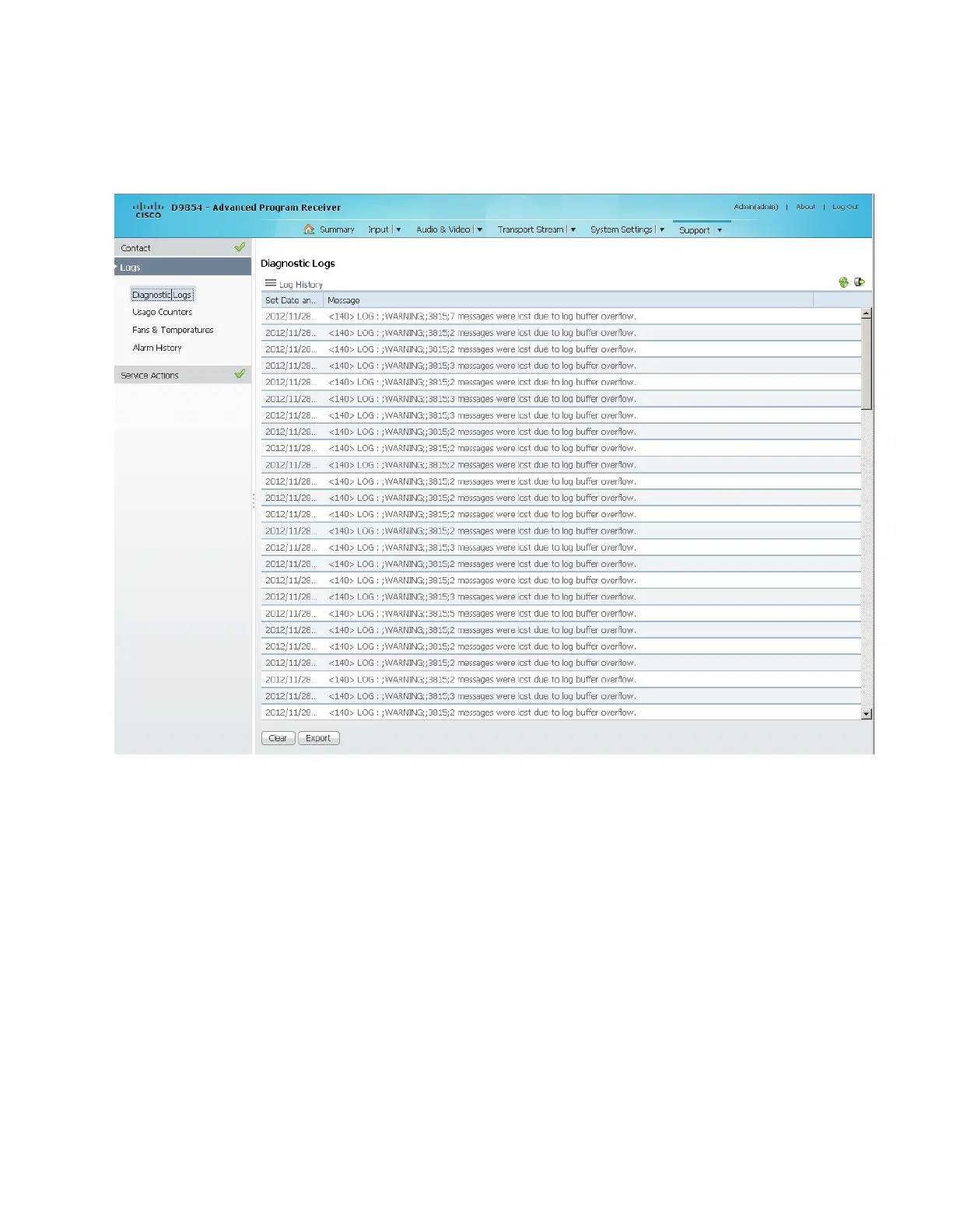

Viewing Diagnostic Logs
From the user interface of the D9854/D9854-I, choose Support > Diagnostic Logs.
The Diagnostic Logs page is displayed.
The Diagnostic Logs page displays all the system log messages with their dates and
times.
Click the arrow next to Set Date and Time column to sort by date and time.
Click Export to export the log history to a .csv file. The File Download dialog is
displayed. Click Save to save the file to your local drive.
Click Clear to clear the log history.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
