Cisco D9854 Installation And Configuration Guide

Setting up Input Information
203
Viewing PSI Frequency Table Information

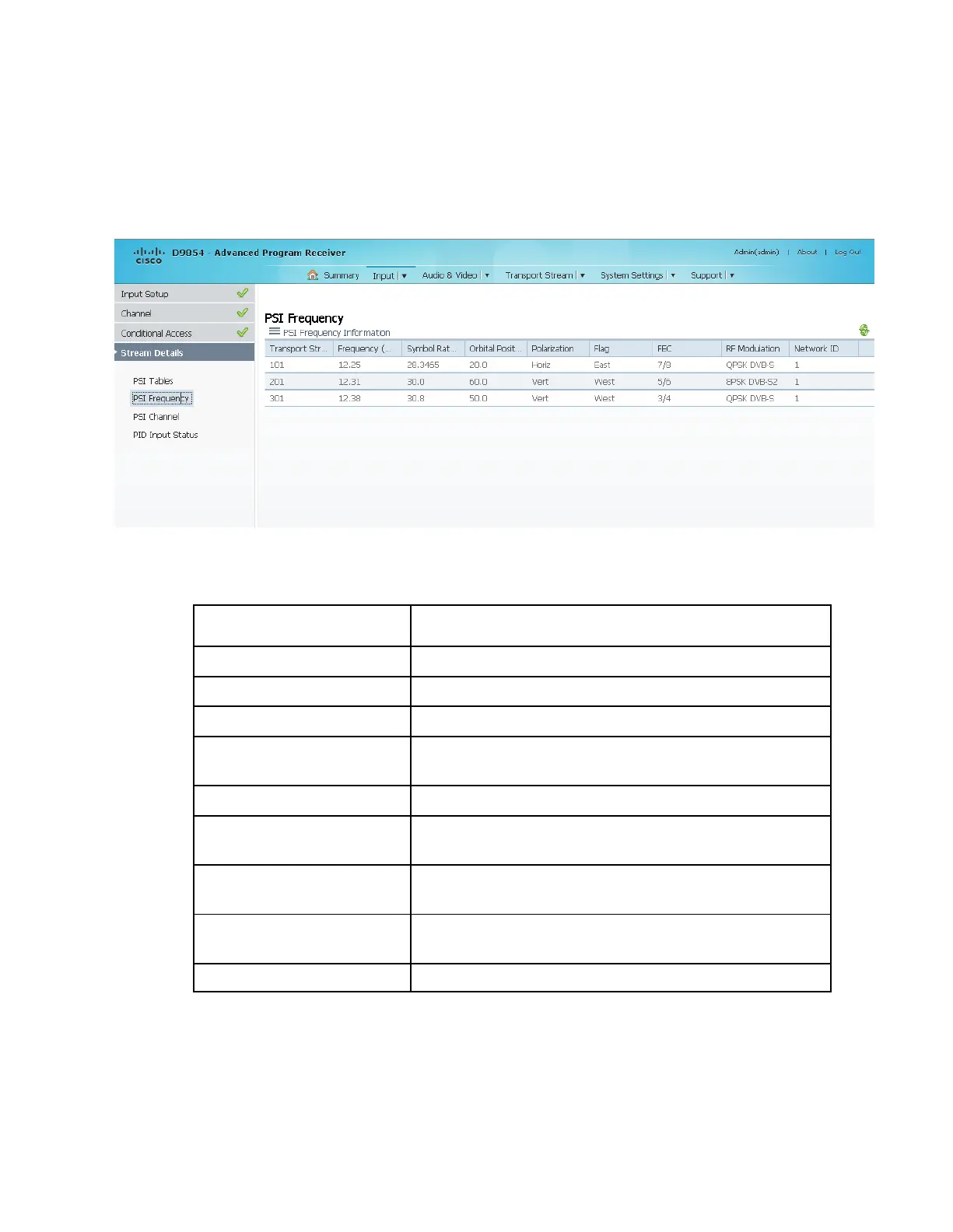

From the user interface of the D9854/D9854-I, choose Input > PSI Frequency. The
PSI Frequency page is displayed.
You cannot make any changes in the PSI Frequency table and can only view the
available frequency plans stored in the receiver. The following is a list of the various
columns:
Abbreviation
Description
Transport Stream ID
Displays the transport ID.
Frequency (GHz)
Displays the downlink frequency, in GHz (0.0 to 15.0 GHz).
Symbol Rate (MSym)
Displays the symbol rate, in Mbps.
Orbital Position
Displays the orbital position of the satellite, in degrees
(East or West).
Polarization
Displays the polarity of the received signal (H,V, or Off).
Flag
Displays the satellite position (in degrees), in combination
with the direction (East or West).
FEC
Indicates the Forward Error Correction inner code rate
(1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9, or 9/10).
RF Modulation
Indicates the modulation of the signal (QPSK DVB-S, QPSK
DVB-S2, 8PSK DVB-S2 or 16QAM DVB-S2).
Network ID
Displays the original network ID.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
