Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
282
Viewing Alarm/Warning History
From the user interface of the D9854/D9854-I, choose System Settings > History.

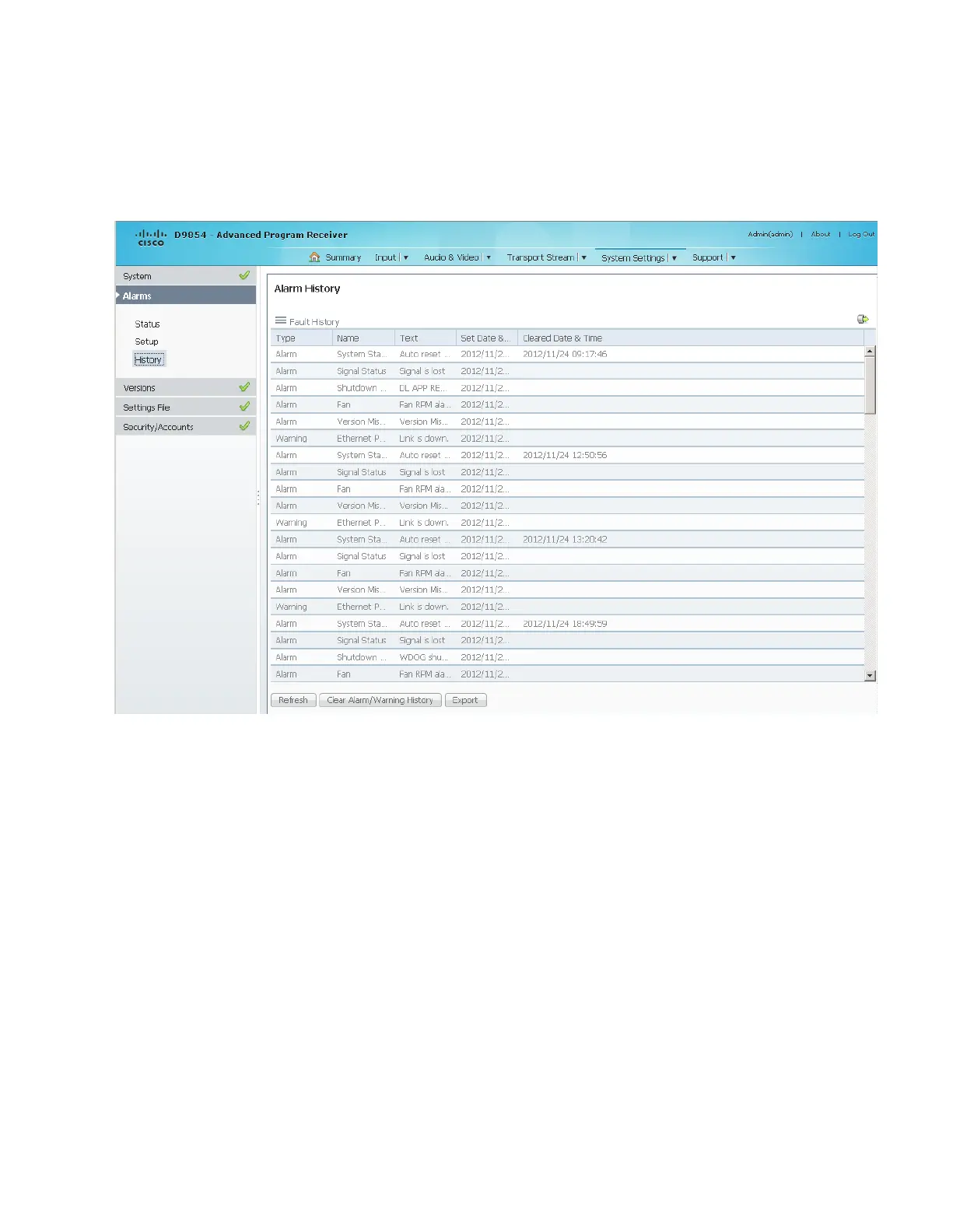

The History page is displayed.
The Alarm and Warning History page displays all the past system event messages
and their set and cleared dates and times. For more information on the alarm
messages, refer to D9854/D9854-I Receiver Alarm Messages (on page 306).
Click Clear Alarms/Warnings History to clear all existing history information.
Click Export to save the history information to your local hard drive as a .csv file.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
