Cisco D9854 Installation And Configuration Guide

Chapter 4 Front Panel Operation
112
Setup Menu: Outputs
To view the Outputs menus from the Main menu, press the RIGHT arrow key once
and then the SELECT key to reach the Setup menu. Then press the RIGHT arrow
key five times and the SELECT key to view the Outputs menu.
The Outputs menu allows you to set up the rear panel control relays for alarms, cue
tones and cue triggers, and the transport stream outputs, and Digital Program
Mapping (DPM).
For instructions on how to select and store settings, see About the Front Panel (on
page 44).

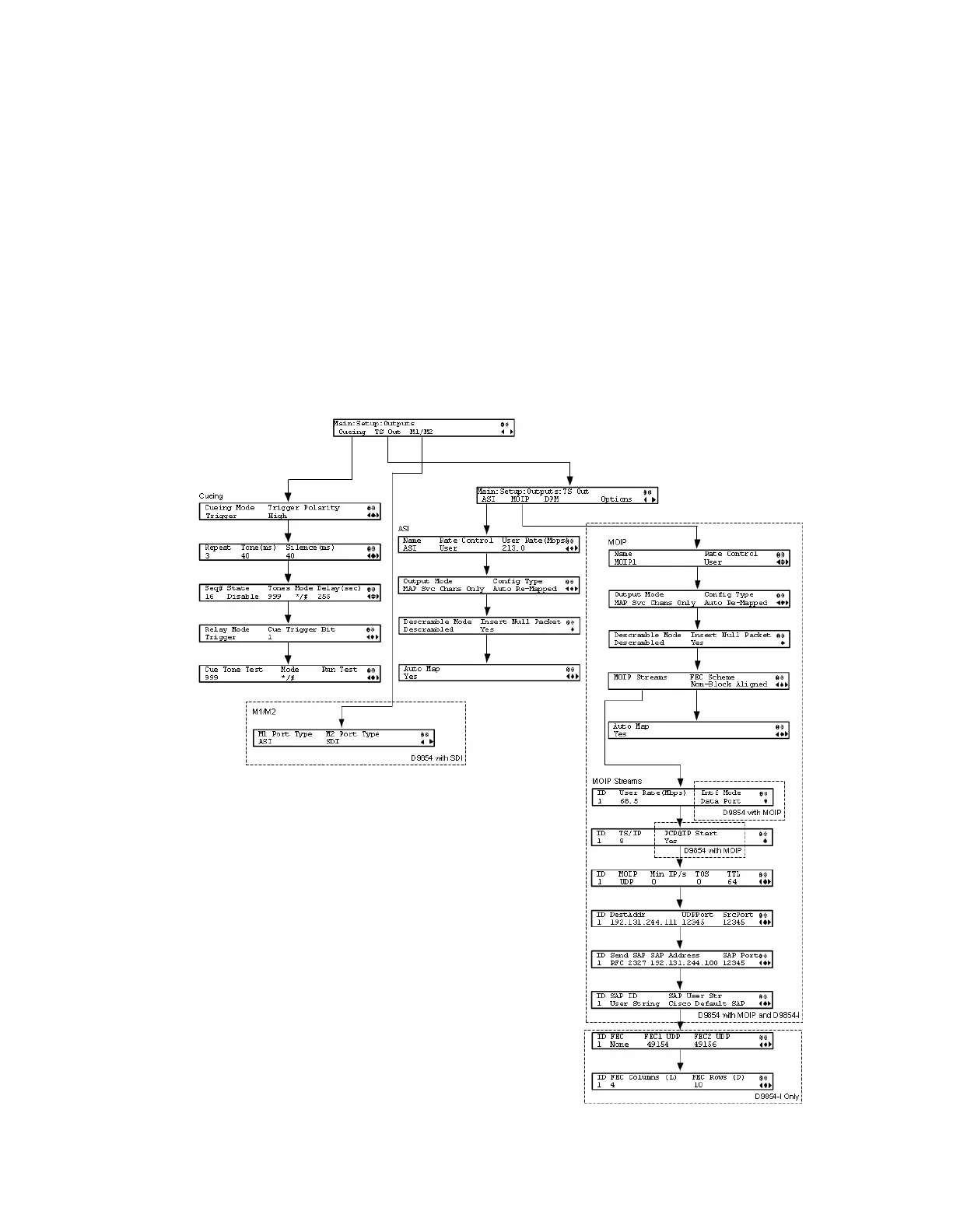

The Outputs menu has the following structure:

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
