Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
220
Setting up Cue Tones

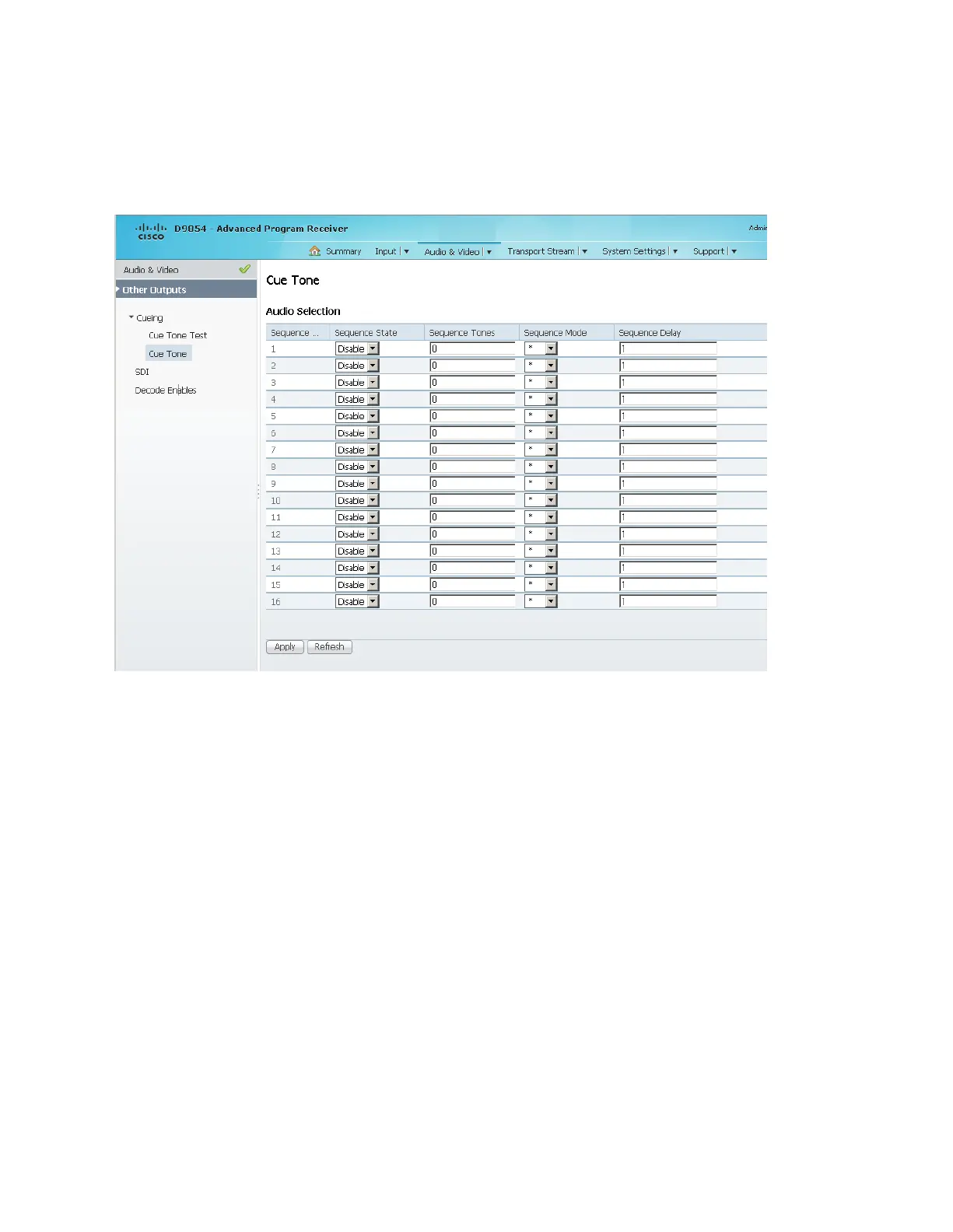

1 From the user interface of the D9854/D9854-I, choose Audio & Video > Cueing
> Cue Tone. The Cue Tone page is displayed.
2 The Sequence Number lists the tone sequences. The receiver supports up to 16
tone sequences. You can configure the state, tones, mode, and delay for each tone
sequence.
3 Choose the Sequence State (Enabled or Disabled) of the current tone sequence.
When disabled, no cue tone is output.
4 In the Sequence Tones field, set the three digit tone sequence (1 to 999).
5 From the Sequence Mode drop-down list, choose the tone.
Choose * for start tone, # for the end tone, and */# for the start and end tones.
The end tone is signaled after waiting the time specified in Sequence Delay.
6 If the Sequence Mode was set to */# (Start/Stop), set the Sequence Delay, in
seconds, between the start and stop sequences. You can enter a value in the
range from 1 to 255. The default is 30.
7 Click Apply.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
