Chapter 5 Web GUI Setup and Monitoring
258
12 Click Apply.
13 Click Copy to ASI to copy all the DPM data from the MPEG over IP output to
the ASI output.
Viewing the MPEG Output Transport Status

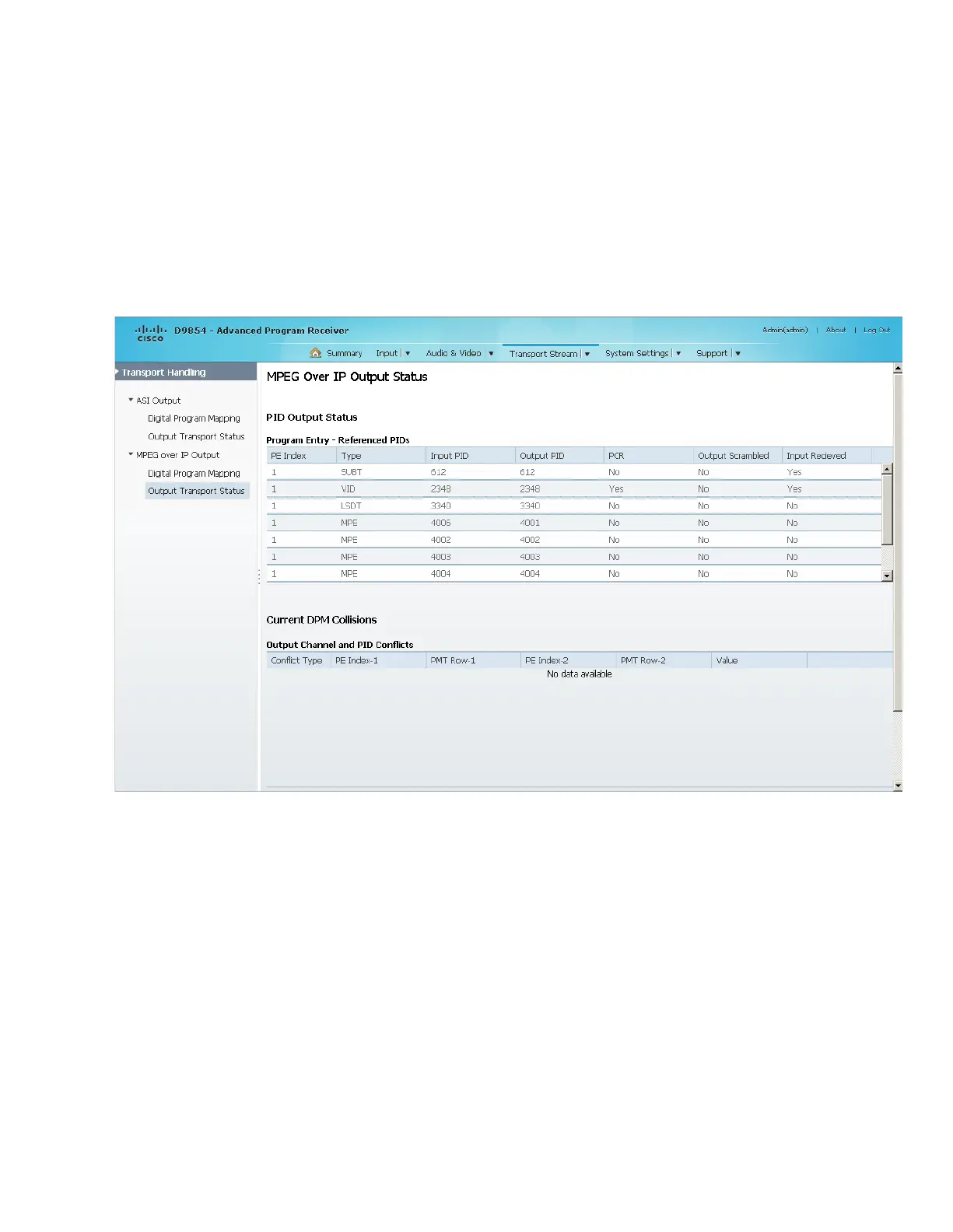

From the user interface of the D9854/D9854-I, choose Transport Stream > Output
Transport Status under MPEG over IP Output. The PID Output Status page is
displayed.
The Program Entry - Referenced PIDs table displays the specified PE ES PIDs
information on the output.
The Output Channel and PID Conflicts table displays a list of conflicts when the
DPM alarm is active.
Typical set up for Digital Program Mapping (DPM)
1 Verify that you are receiving a valid signal and that you have set up the channels
that you want to pass, drop, or map.
2 From the user interface of the D9854/D9854-I, choose Transport Stream > ASI
Output or MPEG over IP Output.
3 From the Output Mode drop-down list, choose Full DPM Control.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
