Cisco D9854 Installation And Configuration Guide

Assigning a Program Channel to a PE (Program Entry)
19
Assigning a Program Channel to a PE (Program
Entry)

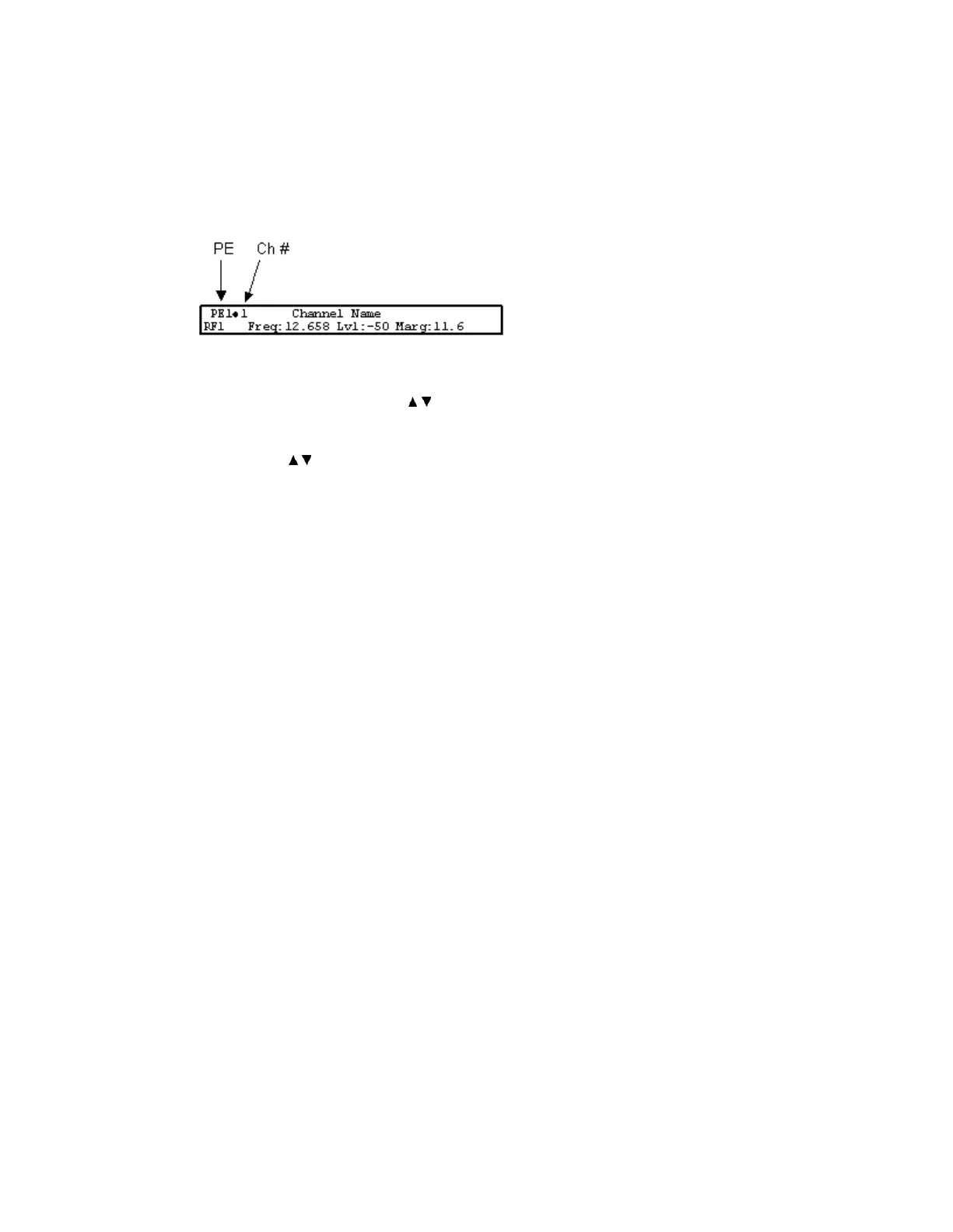

1 At the start-up screen, PE1 is initially displayed.
2 Press ADV and use the keys to scroll through the available program entries.
3 Press ADV again to select the channel number.
4 Use the keys to scroll through the available program channels or directly
enter the channel number using the 0 to 9 keys; press SELECT to save the
channel selection.
Important: In addition to ASI out availability on all models, your unit will be
configured for either HD-SDI or MOIP output. Please follow the procedure for your
model to configure the outputs.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
