Cisco D9854 Installation And Configuration Guide

Startup Screen
49
Startup Screen
Main Structure

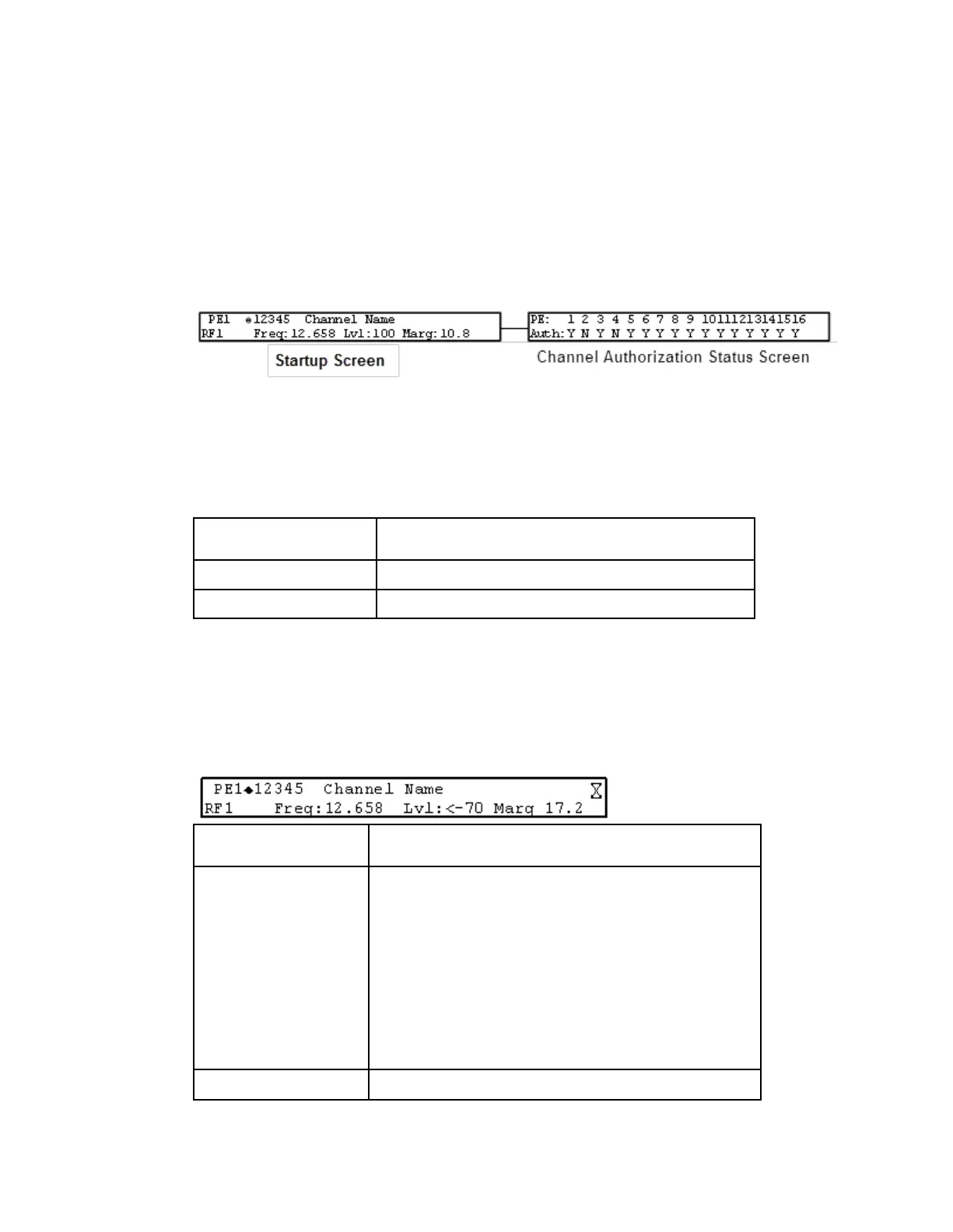

At power on and initialization, the startup screen is displayed similar to that shown
below. The screen also indicates the signal status.
Channel Authorization Status
From the startup screen, press the right or left arrow keys on the front panel keypad
to move to the PE entry authorization status screen. This screen indicates whether
the selected channel is authorized.
Auth Status
Description
Y
Indicates the channel is authorized.
N
Indicates the channel is not authorized.
LCD Panel
The LCD panel displays basic signal and program information in the LCD display,
as described in the following illustration:
LCD Setting
Description
PE
Program Entry (PE). The receiver supports up to 16
program entries.
Note: Only PE1 supports PowerVu descrambling. Do
not assign PowerVu channels to PE2 to PE16. If any
PowerVu channels are assigned to PE2 to PE16, all
Service PIDs associated with these channels will be
dropped from the transport output.
All 16 PEs can use the Conditional Access Modules
(CAMs).
12345
Channel for program monitoring.
