Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
168
Reacquiring the Network Information

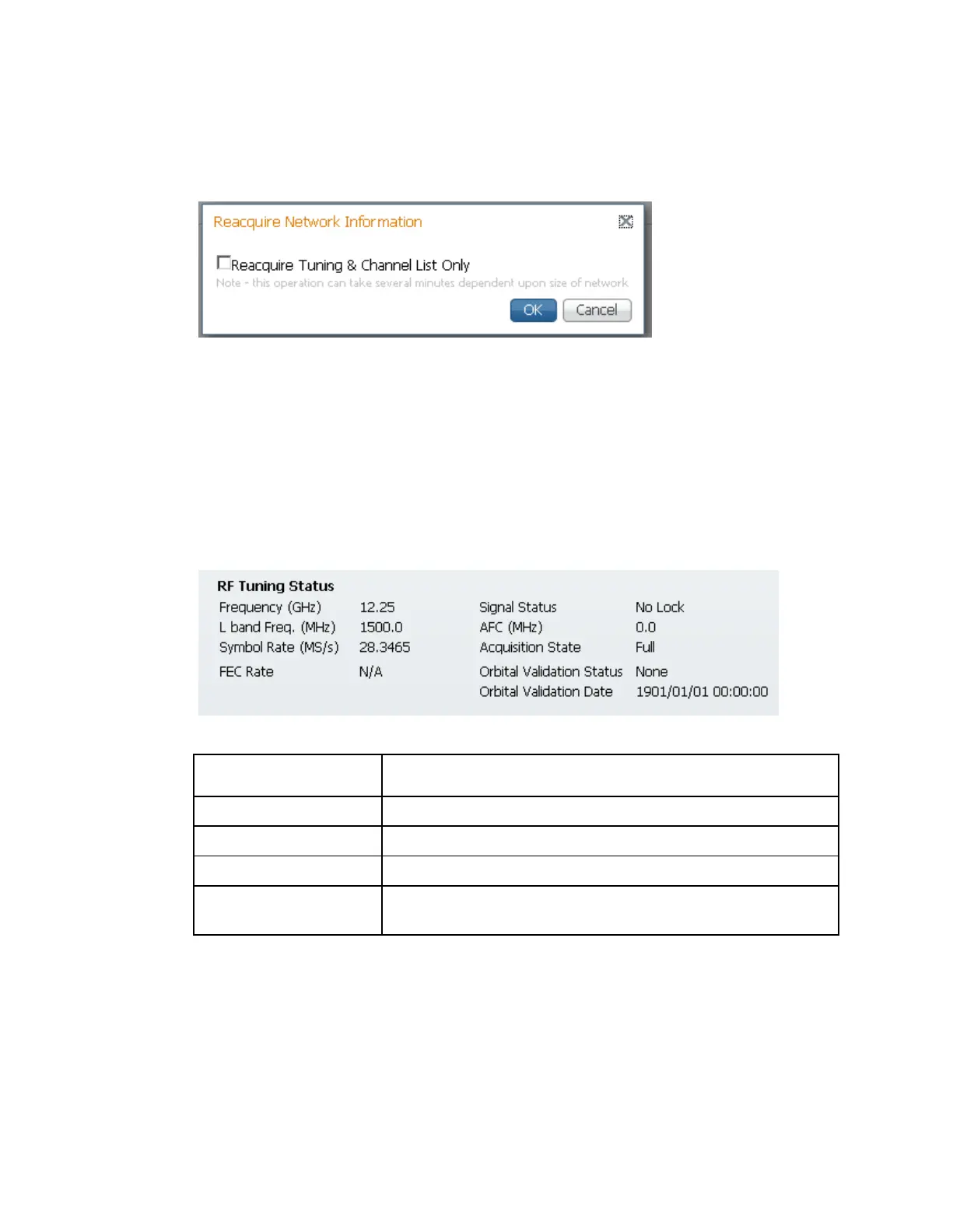

Click Reacquire to re-acquire the signal using the tuning parameters from user
settings. The Reacquire Network Information window is displayed.
Check the Reacquire Tuning & Channel List Only check box for the decoder to
tune back to the user configured input and frequency and re-acquire the PSI/SI
information back to the selected channel. Click OK.
Note: This operation can take several minutes, depending on the size of the network.
Viewing the Current Input Status
The RF Tuning Status area displays the current RF status. The following is an
example:
The following table describes the Current Input Status information displayed:
Parameter
Description
Frequency (GHz)
The current downlink frequency, in GHz.
L band Freq. (MHz)
The current L-Band frequency, in MHz.
Symbol Rate (Msym)
Symbol rate of the received signal, in Msymbols/second.
FEC Rate
The FEC (Forward Error Correction) rate of the received signal
(N/A, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8, 8/9 or 9/10).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
