Cisco D9854 Installation And Configuration Guide

Configuring System Settings
269

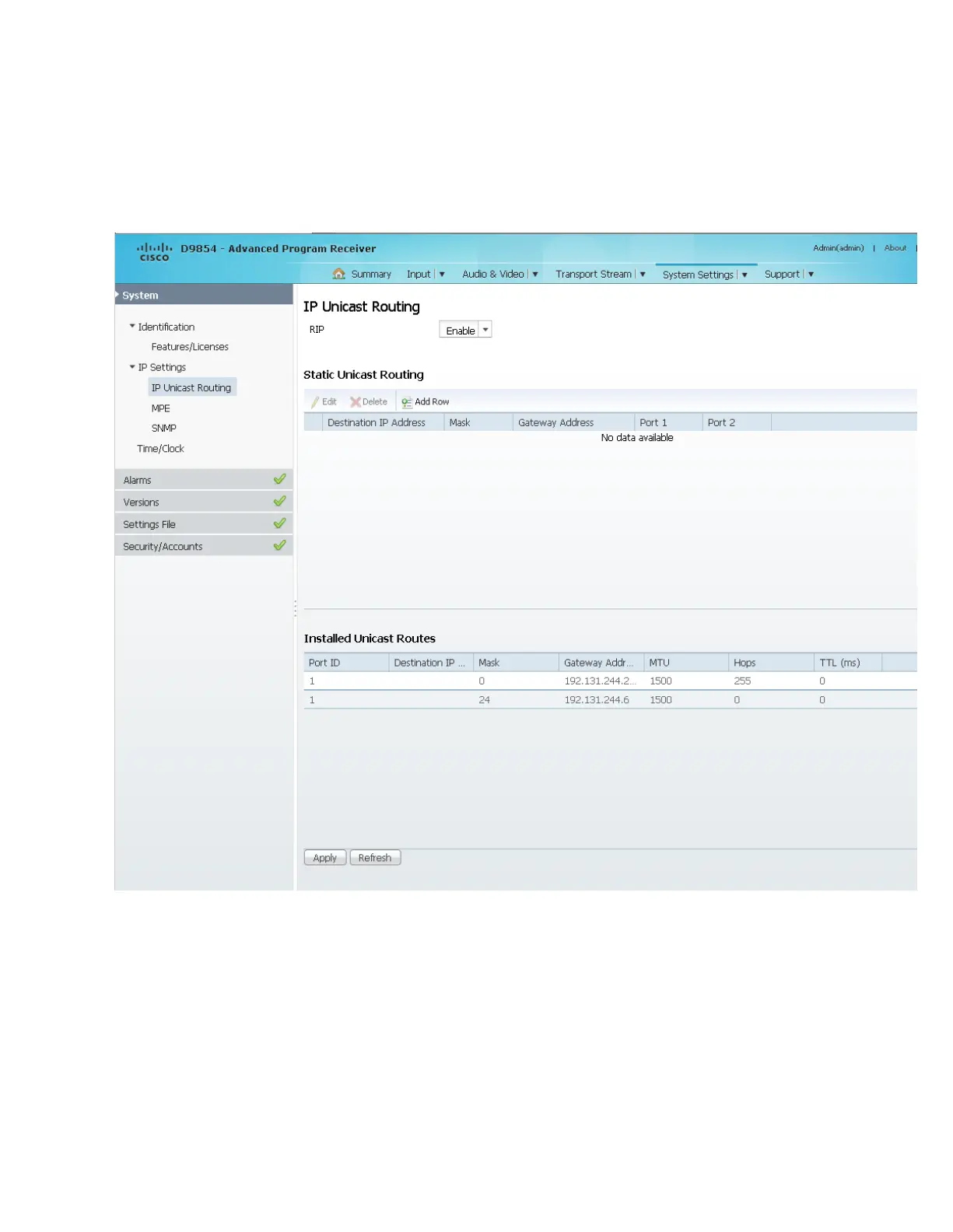

Setting up IP Unicast Routing Information
1 From the user interface of the D9854/D9854-I, choose System Settings > IP
Settings > IP Routing. The IP Routing page is displayed.
2 From the RIP drop-down list, choose Enable to enable the Routing Information
Protocol (RIP). Otherwise, choose Disable. This is a standard protocol for
automatic unicast route discovery. If enabled, the routing information is
displayed in the Installed Unicast Routes table.
3 Click Apply.
4 In the Static Unicast Routing table, you can set the static unicast routing
information used to by MPEGoIP and MPE outputs to send data packets. It can
also be used to find hosts behind a router (for example, an FTP server, a syslog
server, or an NTP server).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
