Chapter 5 Web GUI Setup and Monitoring
200
Viewing the CA Status

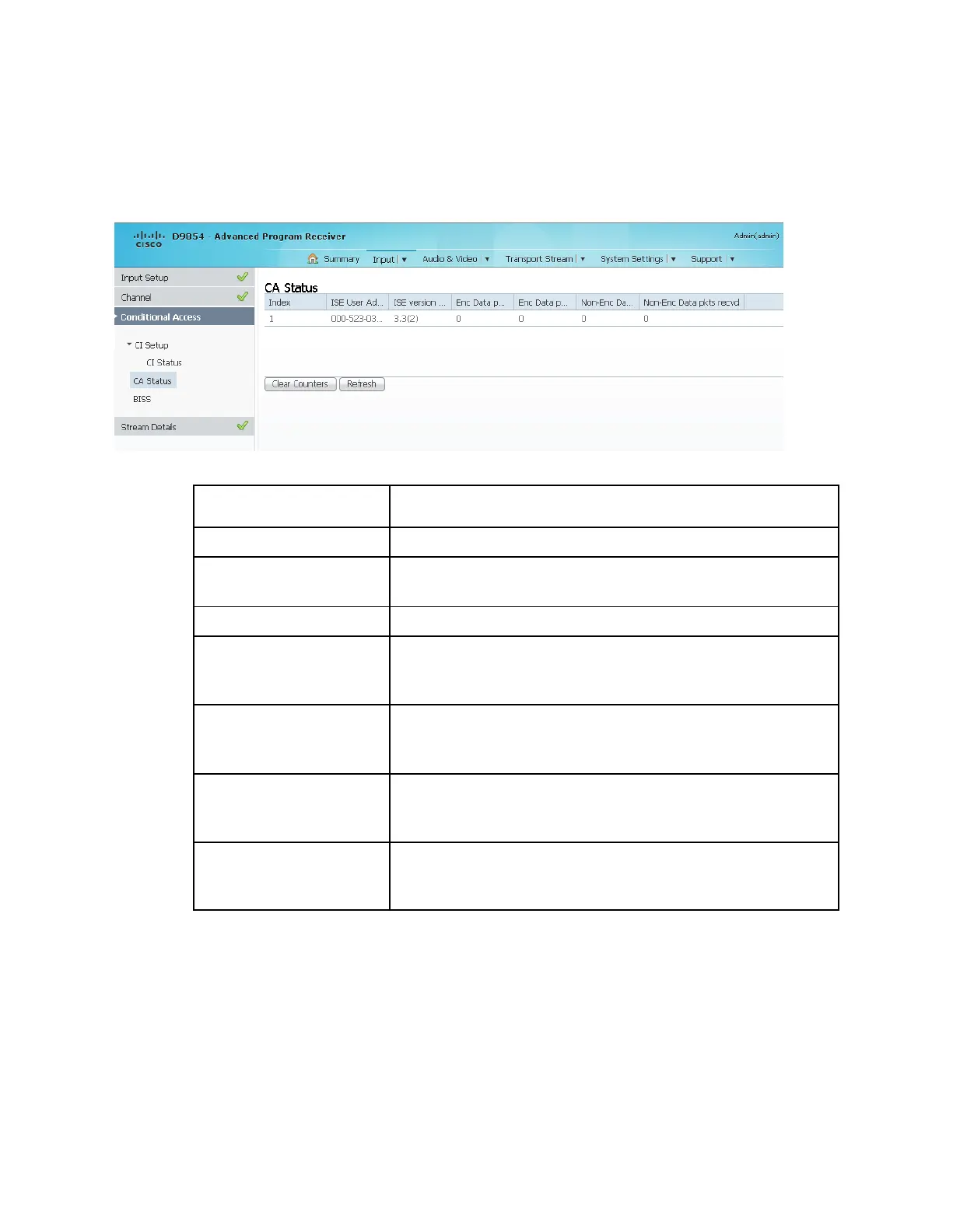

From the user interface of the D9854/D9854-I, choose Input > CA Status. The CA
Status page is displayed.
The following describes the columns in the CA Status table:
Status
Description
Index
The ISE number.
ISE User Address
The ISE User Address. It is a 11 digit address in the following
format: ###-###-####-#.
ISE Version Number
The ISE version number. It consists of 7 characters.
Enc Data pkts passed
Indicates the number of encrypted Addressable Data Packets
successfully processed. Ideally, the ADP Enc Pass and ADP Enc
Total numbers should be identical.
Enc Data pkts recvd
Indicates the number of encrypted Addressable Data Packets
received. Ideally, the ADP Enc Pass and ADP Enc Total
numbers should be identical.
Non-Enc Data pkts passed
Indicates the number of non-encrypted Addressed Data
Packets successfully processed. Ideally, the ADP Enc Pass and
ADP Enc Total numbers should be identical.
Non-Enc Data pkts recvd
Indicates the total number of non-encrypted Addressable Data
Packets received. Ideally, the ADP Non-Enc Pass and ADP
Non-Enc Total numbers should be identical.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
