Cisco D9854 Installation And Configuration Guide

Configuring Transport Stream Information
237
Configuring the MPEGoIP Output
1 From the user interface of the D9854/D9854-I, choose Transport Stream >
MPEG over IP Output.

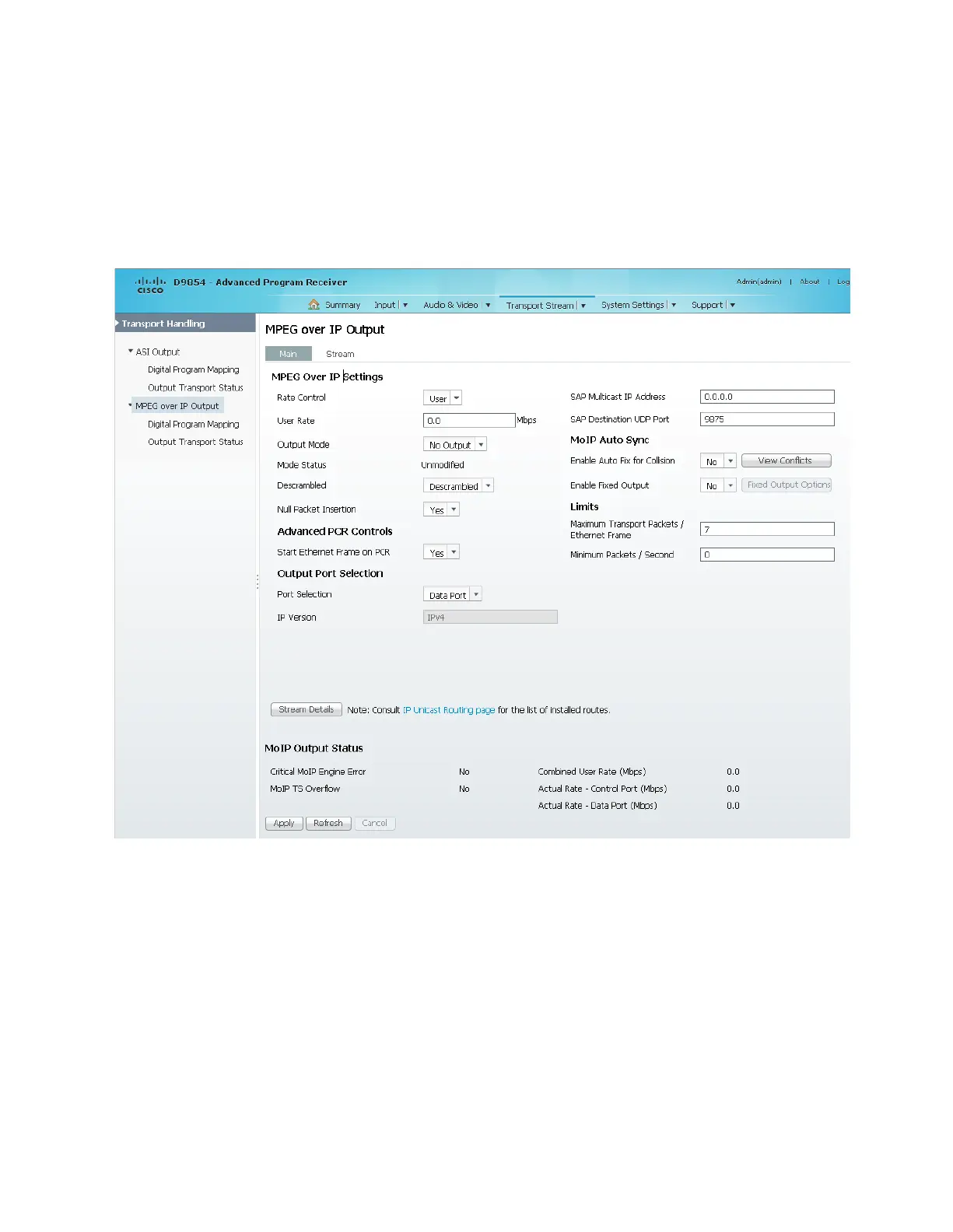

The following MPEG over IP Output page is displayed for the D9854:
Note: Any changes made to the MOIP DPM values will automatically change the
Mode Status to Edited by User.
2 From the Rate Control drop-down list, choose the MOIP output rate control. The
following table describes the affect each of the settings has on the output bit rate:

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
