Cisco D9854 Installation And Configuration Guide

Setting up Audio and Video Information
211

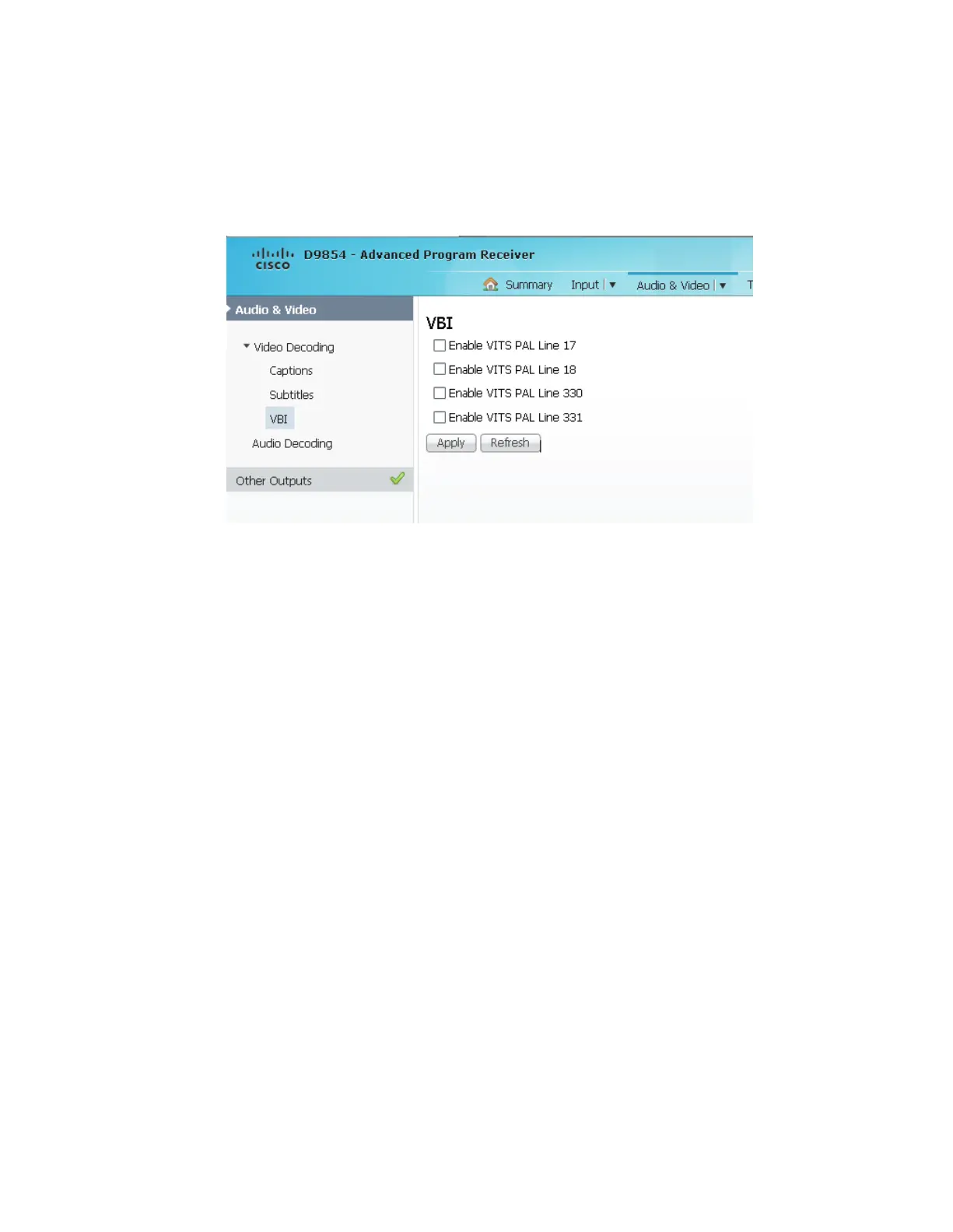

Setting up the VBI
1 From the user interface of the D9854/D9854-I, choose Audio & Video > VBI.
The VBI page is displayed.
2 Check the Enable VITS PAL Line 17, 18, 330, and/or 331 check boxes to enable
Vertical Interval Test Signal (VITS) on PAL Lines 17, 18, 330, and/or 331.
3 Click Apply.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
