Cisco D9854 Installation And Configuration Guide

Setting up Input Information
205
Viewing the PID Input Status

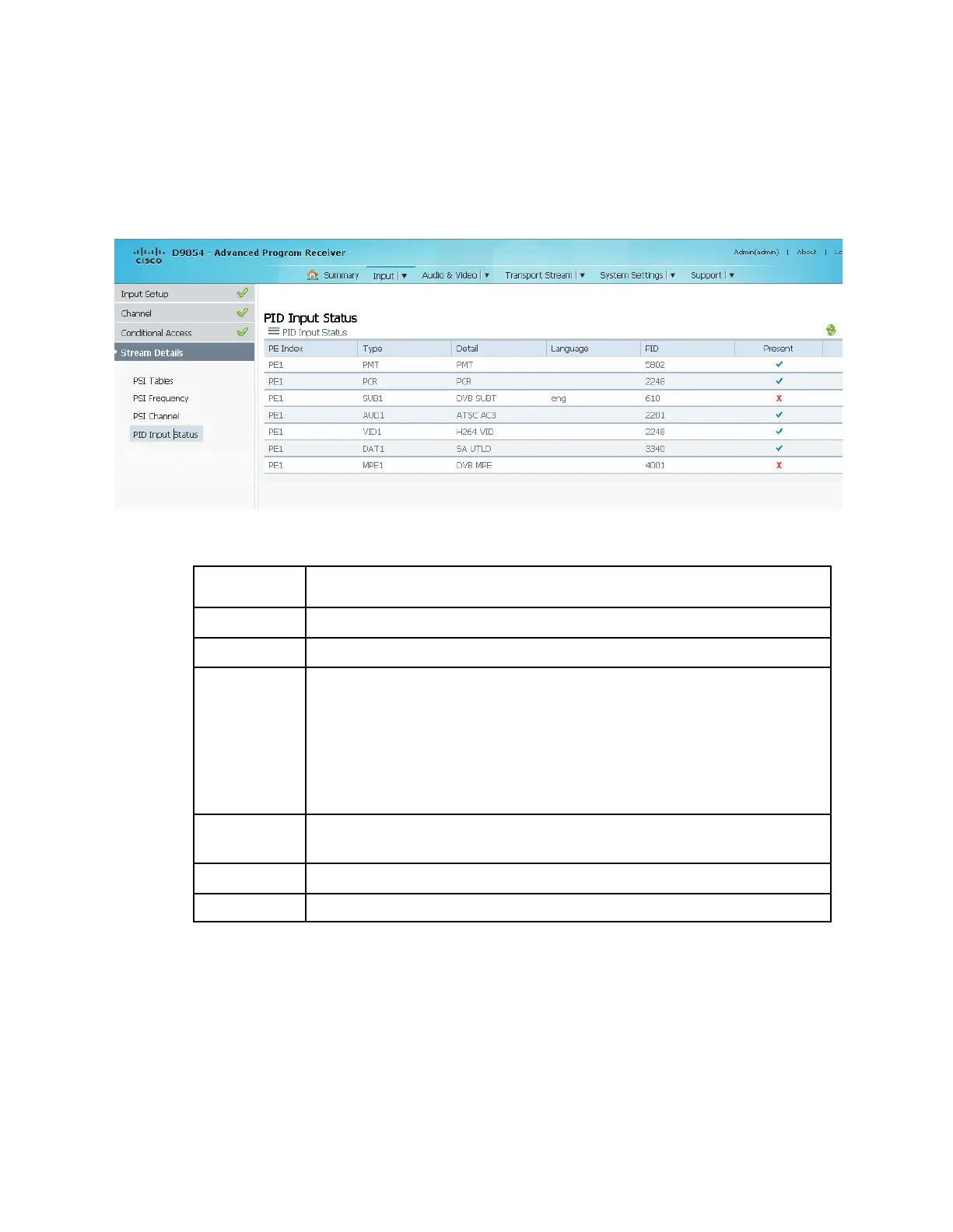

From the user interface of the D9854/D9854-I, choose Input > PID Input Status. The
PID Input Status page is displayed.
You cannot make any changes in the PID Input Status table and can only view the
available channels and their settings. The following is a list of the various columns:
Abbreviation
Description
PE Index
Indicates the Program Entry number (PE1 or PE16).
Type
Name assigned to the Program Entry, up to 4 alphanumeric characters.
Detail
Displays any detail associated with the program PID (e.g., MPG2 PID).
The parameters are: MPG1 VID, MPG2 VID, 422 VID, H264 VID, HD VID,
MPG4 VID, MPG AUD, MPG2 AUD, DVB AC3, DVB DDP, AAC AUD,
HEAAC, AUD, MPG4 AUD, DBE AUD, DTS AUD, DVB TXT, DVB VBI,
DVB SUBT, DVB ASYN, DVB SYNS, DVB SYND, DVB MPE, DVB DCAR,
DVB OCAR, SA VBI, ATSC AC3, ATSC DDP, SA UTLD, SCTE DPI, SA
HSD, SA CDDL, SA WBD, SA SUBT, ECM, EMM, PCR, or UNKNOWN.
Language
Displays the language code carried in the PMT for the current PID, if
applicable.
PID
The program PID number, in the range from 1 to 8192.
Present
Indicates whether the PID is present in the incoming stream (Yes or No).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
