Chapter 5 Web GUI Setup and Monitoring
Configuring the DPM ASI Details
The following procedure defines all the available fields. For a typical setup of the
DPM, see Typical set up for Digital Program Mapping (DPM) (on page 258).
Note: After you make any changes, a successfully updated (session open) message
appears. The changes are displayed, but not saved. You must click Apply to save
and apply the changes.

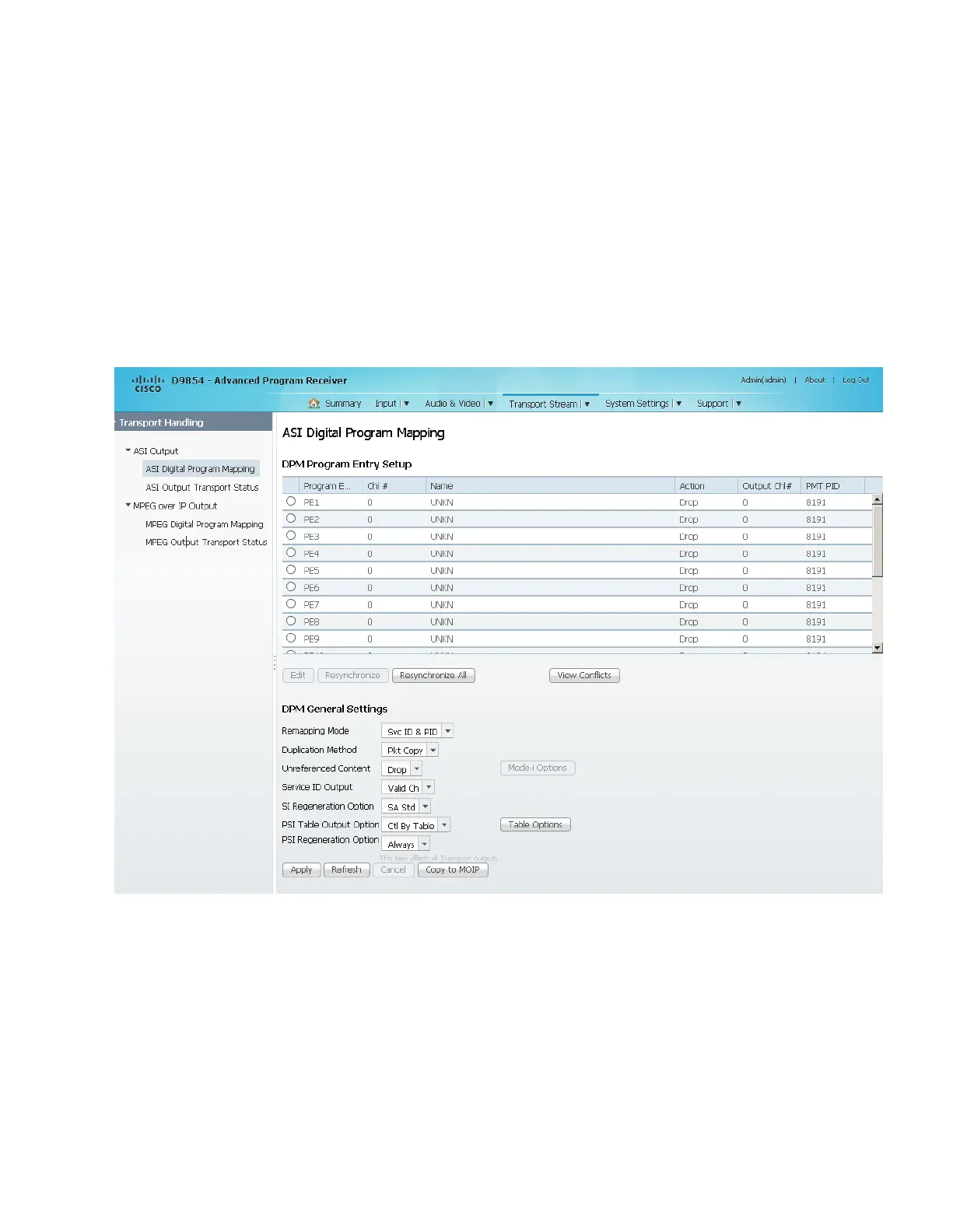

1 From the user interface of the D9854/D9854-I, choose Transport Stream >
Digital Program Mapping, under ASI Output. The Digital Program Mapping
page is displayed.
2 For each DPM Program Entry, it displays the input channel number (Chl #) and
channel Name.
There are 16 channels (PE1 to PE16).
Note: Any changes made to the ASI DPM values will automatically change the
Mode Status to Edited by User in the ASI Outputs page.
3 In the table, click the program entry you want to edit.
From the Action drop-down list, choose the DPM program action for the PE
(Pass, Map, or Drop).
Click Save.
