Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
170
Setting up the ASI Input

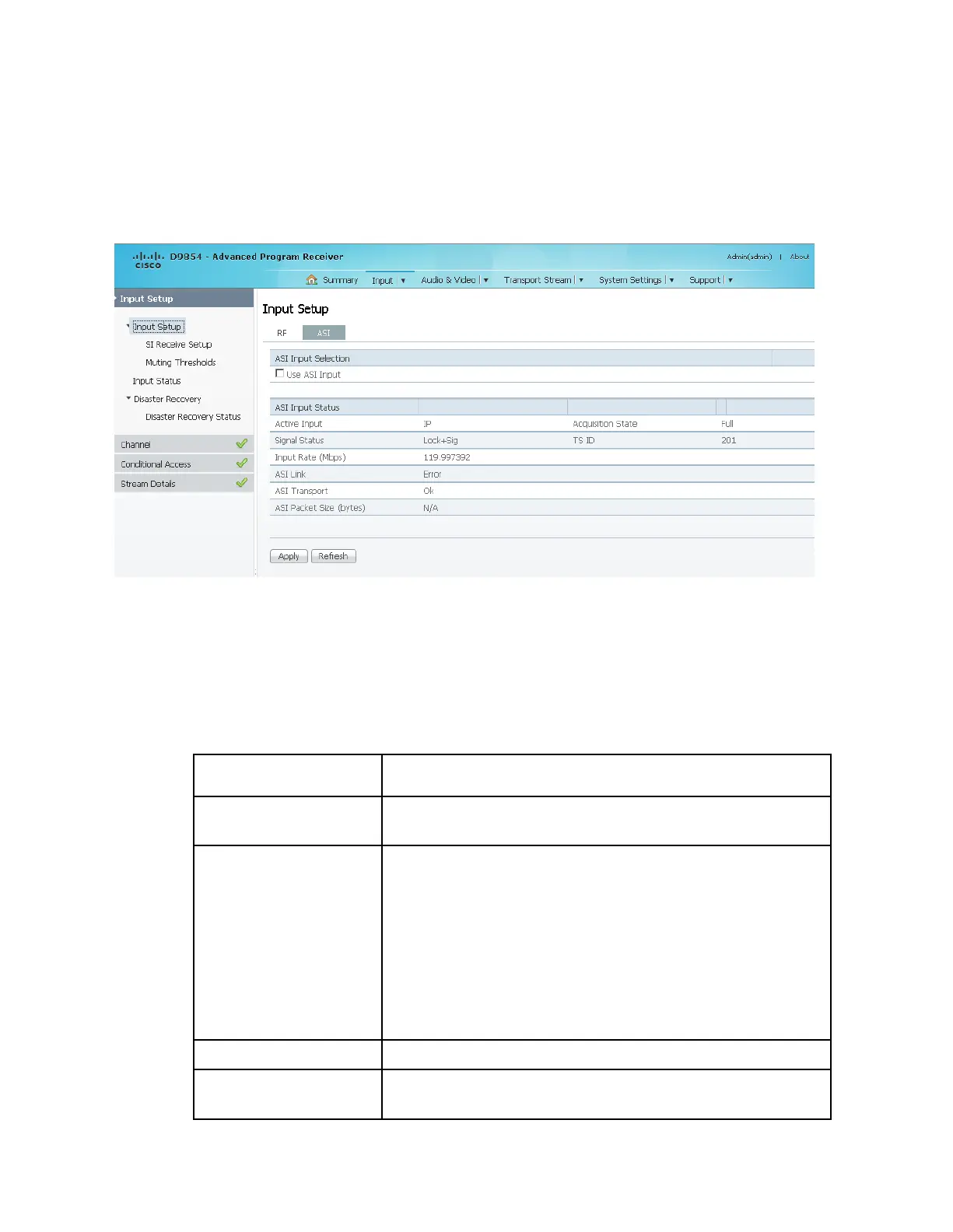

1 From the user interface of the D9854/D9854-I, choose Input > Input Setup. The
Input Setup page is displayed.
2 Click the ASI tab.
3 Check the Use ASI Input check box to tune to the ASI input.
Note: Setting a new input to be active will deactivate the currently active input.
4 Click Apply.
Viewing the ASI Input Status
The ASI Input Status area displays the current ASI status. The following table
describes the ASI Input Status information displayed:
Parameter
Description
Active Input
Indicates the currently selected input source (RF1, RF2, RF3,
RF4, or ASI).
Signal Status
Indicates whether the input signal is locked.
 Locked - Indicates the receiver is locked to a carrier
with no valid content.
 Lock+Sig - Indicates the receiver is locked to a carrier
with valid content.
 No Lock - Indicates the receiver is not locked to a
carrier.
Input Rate (Mbps)
Displays the bit rate of the input transport stream, in Mbps.
ASI Link
Indicates whether there is a transport stream link error (Error,
Ok, or N/A).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
