Chapter 5 Web GUI Setup and Monitoring
3 In the MOIP Input Selection area, check the Use MOIP Input check box to tune
to the MPEG over IP Input.
Note: Setting a new input to be active will deactivate the currently active input.
4 From the Source IP Selection Mode drop-down list, choose UserCfg to lock to
the source IP input set by the user, or choose SW Map to automatically detect
and select which stream to tune to.

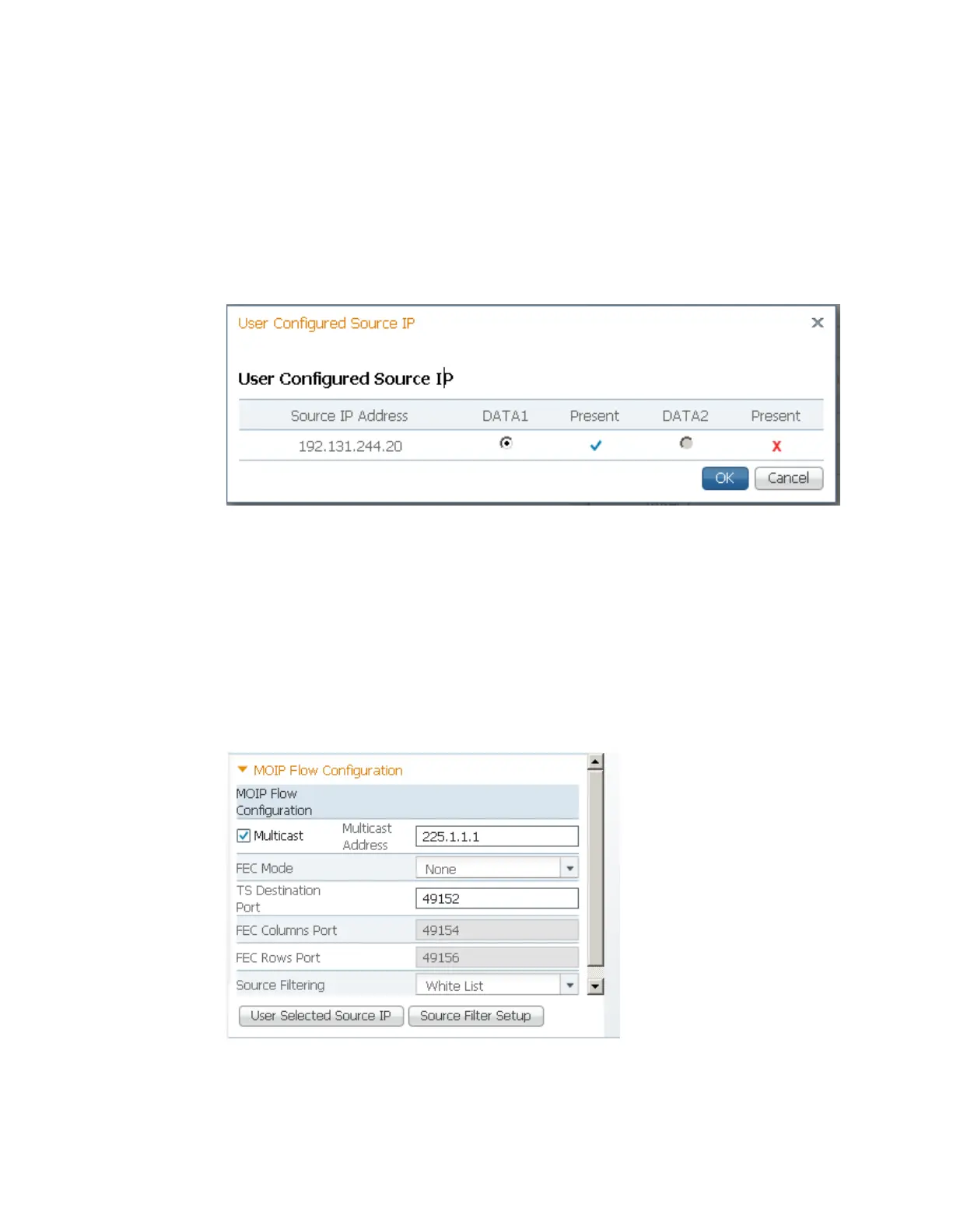

5 If UserCfg is selected as the Source IP Selection Mode, click User Selected
Source IP to select the data 1 or data 2 streams.
a Click the DATA1 or DATA2 radio button. The Source IP Address displays
the host (originator) IP address of the incoming stream. The Present columns
display whether the stream is present on the Data1 and Data2 ports.
Note: If the stream is not present on the specific port, it cannot be selected.
b Click OK.
6 Click Apply.
Configuring MPEG over IP Flow
1 In the Input Setup page (Input > Input Setup), click the IP tab. Refer to the
MOIP Flow Configuration area.
2 Check the Multicast check box to use multicast streaming. Otherwise, uncheck
Multicast to listen to the unicast streams that are sent to the IP addresses of the
Data1 and Data2 ports.
