Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
264

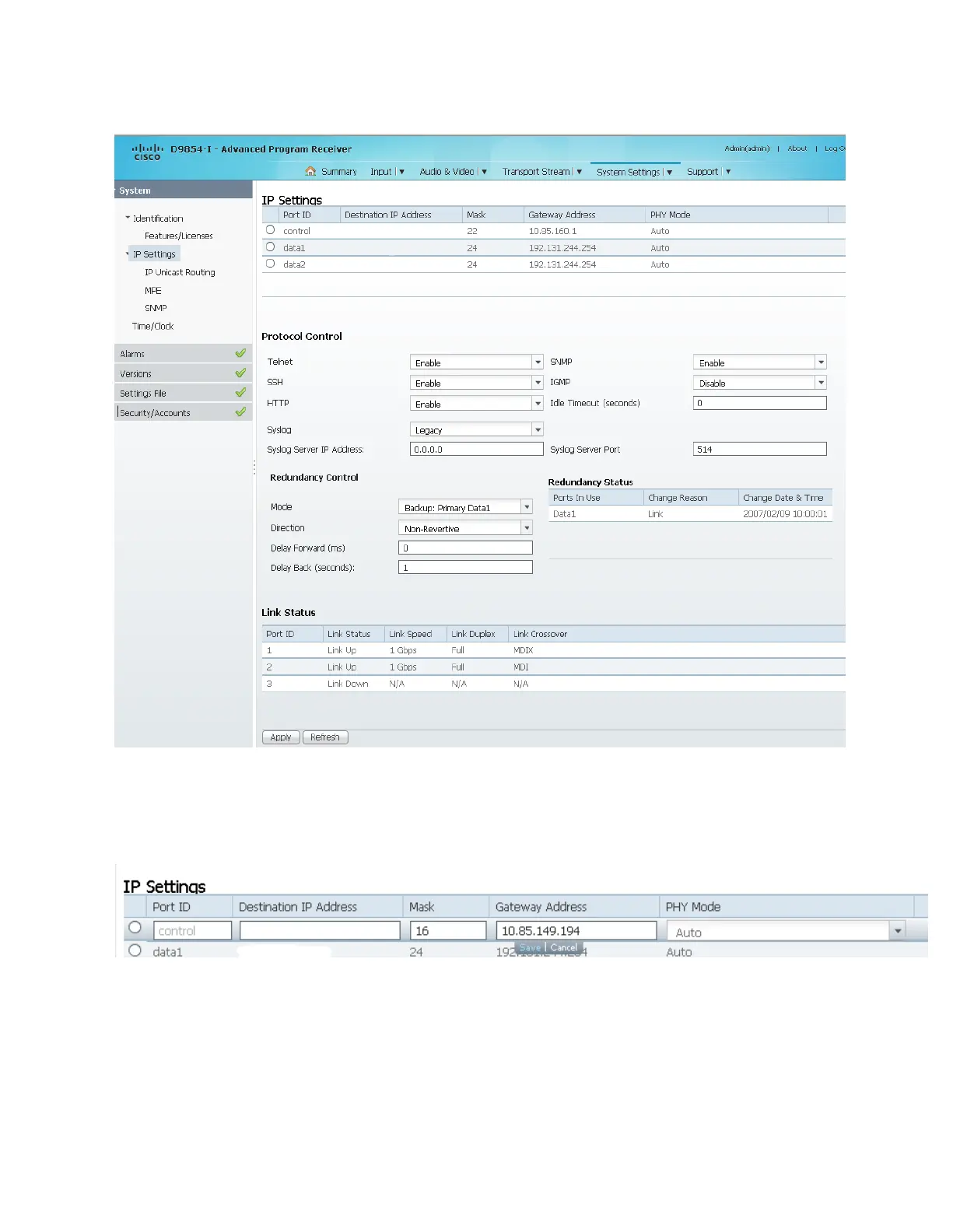

The following is the IP settings page for the D9854-I:
2 In the IP Settings table, you can set the parameters for communicating with other
equipment via the Ethernet Data and Management ports for IP applications and
upgrading application software.
3 Click the control or data (data1 or data2 for D9854-I) row to edit the parameters
in the row. The following is an example:
a In the Destination IP Addres field, enter the IPv4 destination IP address for
the interface. The address is 12 digits in length (###.###.###.###).
b Set the number of CIDR (Classless Inter-Domain Routing) bits in the network
Mask field (8 to 30).

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
