Cisco D9854 Installation And Configuration Guide

Chapter 5 Web GUI Setup and Monitoring
274

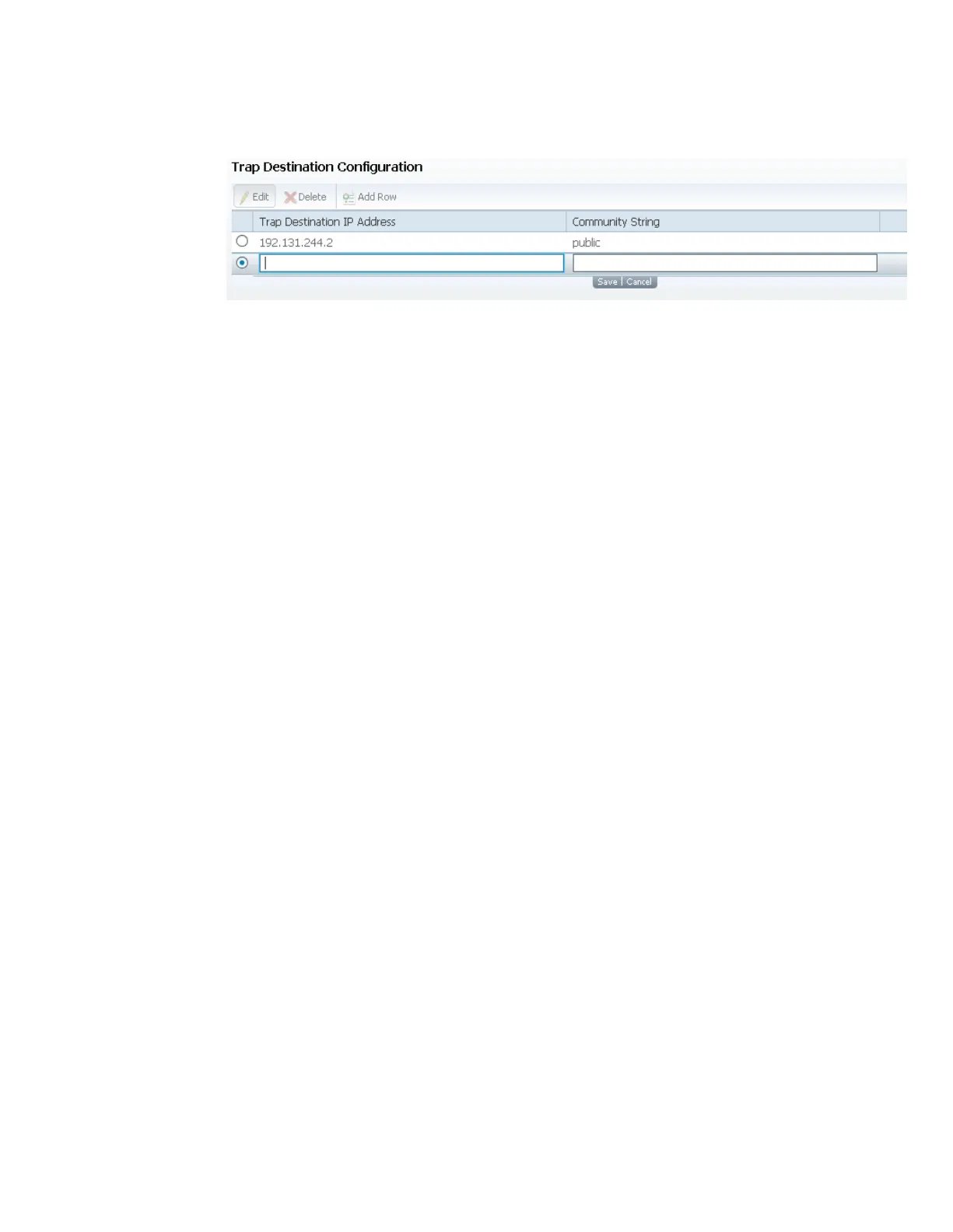

Adding a Trap Destination
1 Click Add in the Trap Destination Configuration area.
2 In the Trap Destination IP Address field, enter the IP address that sets the
destination for SNMP trap messages for system events (for example, fault
messages).
3 In the Community String field, enter the community string for the trap
destination (IP Address entered above).
Enter public or custom. The default is public. You can enter a string up to 35
characters.
4 Click Save.
To edit/delete an existing trap destination, select the trap destination entry by
clicking on the radio button. Make the necessary changes, or click Delete to remove
the address from the Trap Destination Configuration list.

Cisco D9854 Specifications

General

Model	D9854
Category	Receiver
Output	ASI, IP
Decoding	MPEG-2
Conditional Access	BISS
Receiver Type	Professional IRD
解密	DVB-CSA, BISS, AES
Input Frequency Range	950 MHz to 2150 MHz
Modulation Formats	QPSK, 8PSK
Symbol Rate	1 to 45 Msps
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption	40W (typical)
Operating Temperature	0°C
