7 Managing Storage

68 CTERA C-Series User Guide

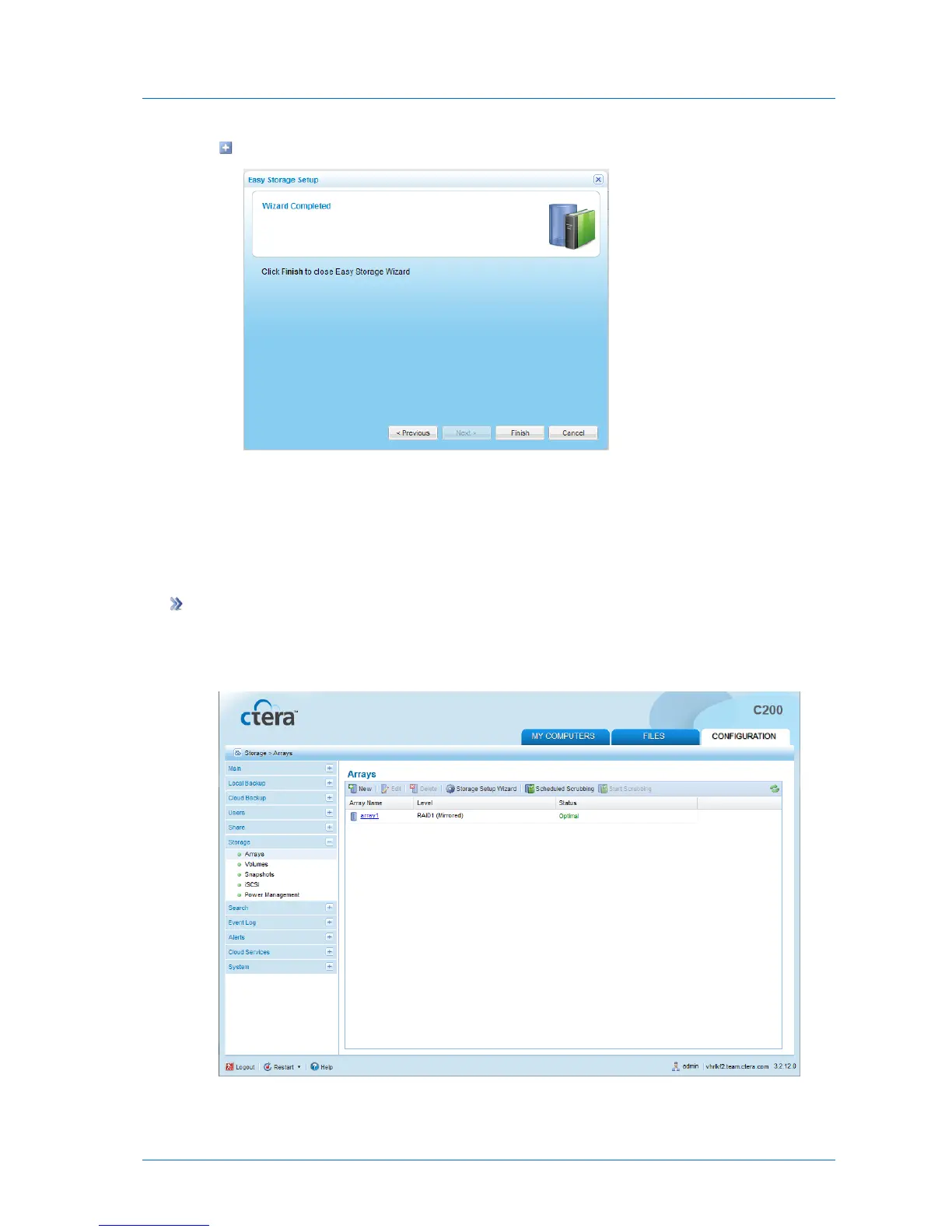

The Wizard Completed screen appears.

5 Click Finish.

Manually Setting Up Storage

Adding and Editing Arrays

To add or edit an array

1 In the Configuration tab's navigation pane, click Storage > Arrays.

The Storage > Arrays page appears.

2 Do one of the following:
