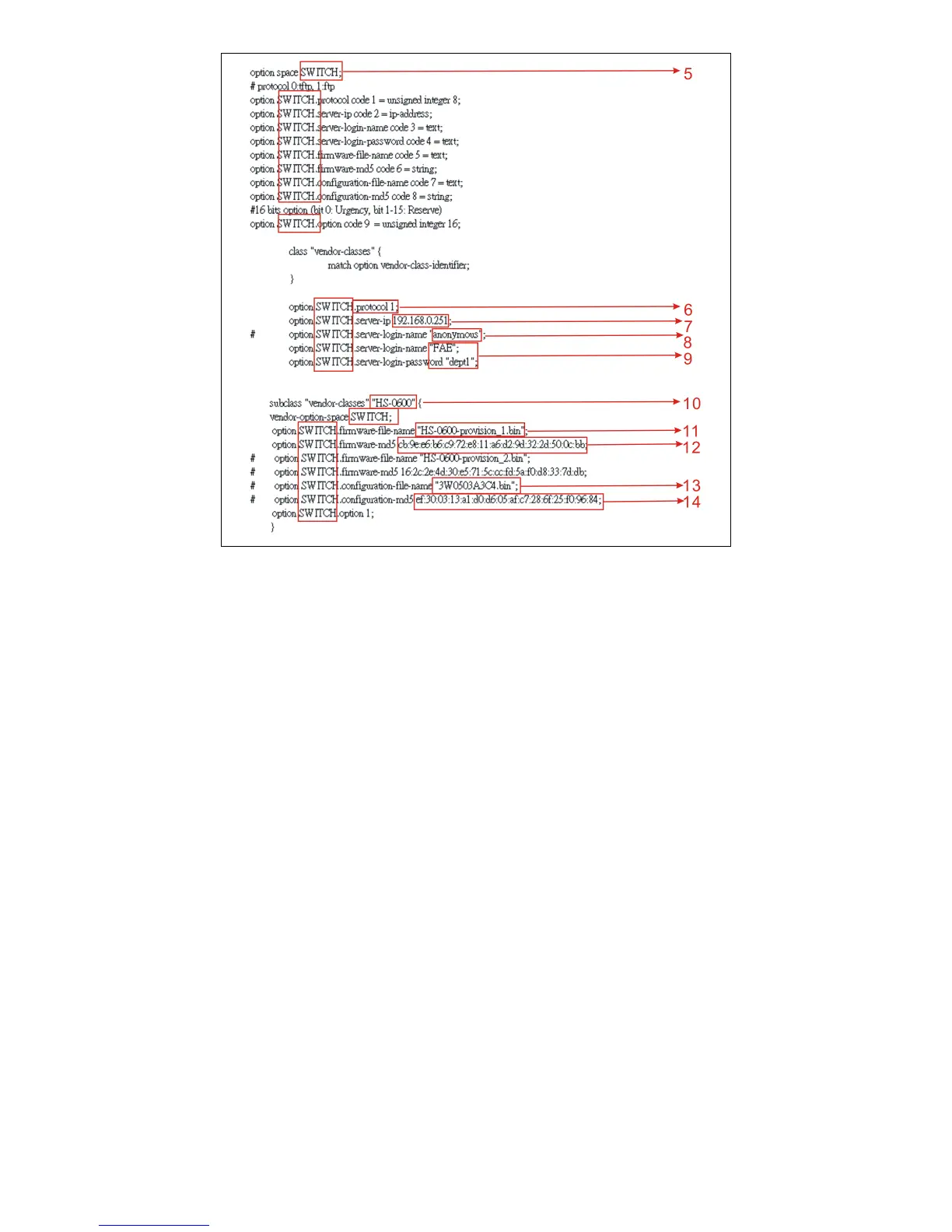

5. This value is configurable and can be defined by users.
6. Specify the protocol used (Protocol 1: FTP; Protocol 0: TFTP).
7. Specify the FTP or TFTP IP address.
8. Login TFTP server anonymously (TFTP does not require a login name and password).
9. Specify FTP Server login name and password.
10. Specify the product model name.
11. Specify the firmware filename.
12. Specify the MD5 for firmware image.
13. Specify the configuration filename.
14. Specify the MD5 for configuration file.
NOTE 1: The text beginning with a pound sign (#) will be ignored by the DHCP server. For
example, in the figure shown above, firmware-file-name “HS-0600-provision_2.bin” and firmware-
md5 (line 5 & 6 from the bottom) will be ignored. If you want DHCP server to process these two
lines, remove pound signs in the initial of each line.
NOTE 2: You can use either free software program or Linux default md5sum function to get MD5
checksum for firmware image and configuration file.
