I. Port-Based VLAN
Port-Based VLAN is uncomplicated in implementation and is useful for network administrators who
wish to quickly and easily set up VLANs to isolate the effect of broadcast packets on their network.
In the network diagram provided below, the network administrator is required to set up VLANs to
separate traffic based on the following design conditions:
Switch 1 is used in the Marketing Department to provide network connectivity to client PCs or
other workstations. Switch 1 also connects to Port 1 in Managed Switch.
Client PCs in the Marketing Department can access the Server 1 and Public Server.
Switch 2 is used in the RD Department to provide network connectivity to Client PCs or other
workstations. Switch 2 also connects to Port 2 in Managed Switch.
Client PCs in the RD Department can access the Server 2 and Public Server.
Client PCs in the Marketing and RD Department can access the Internet.

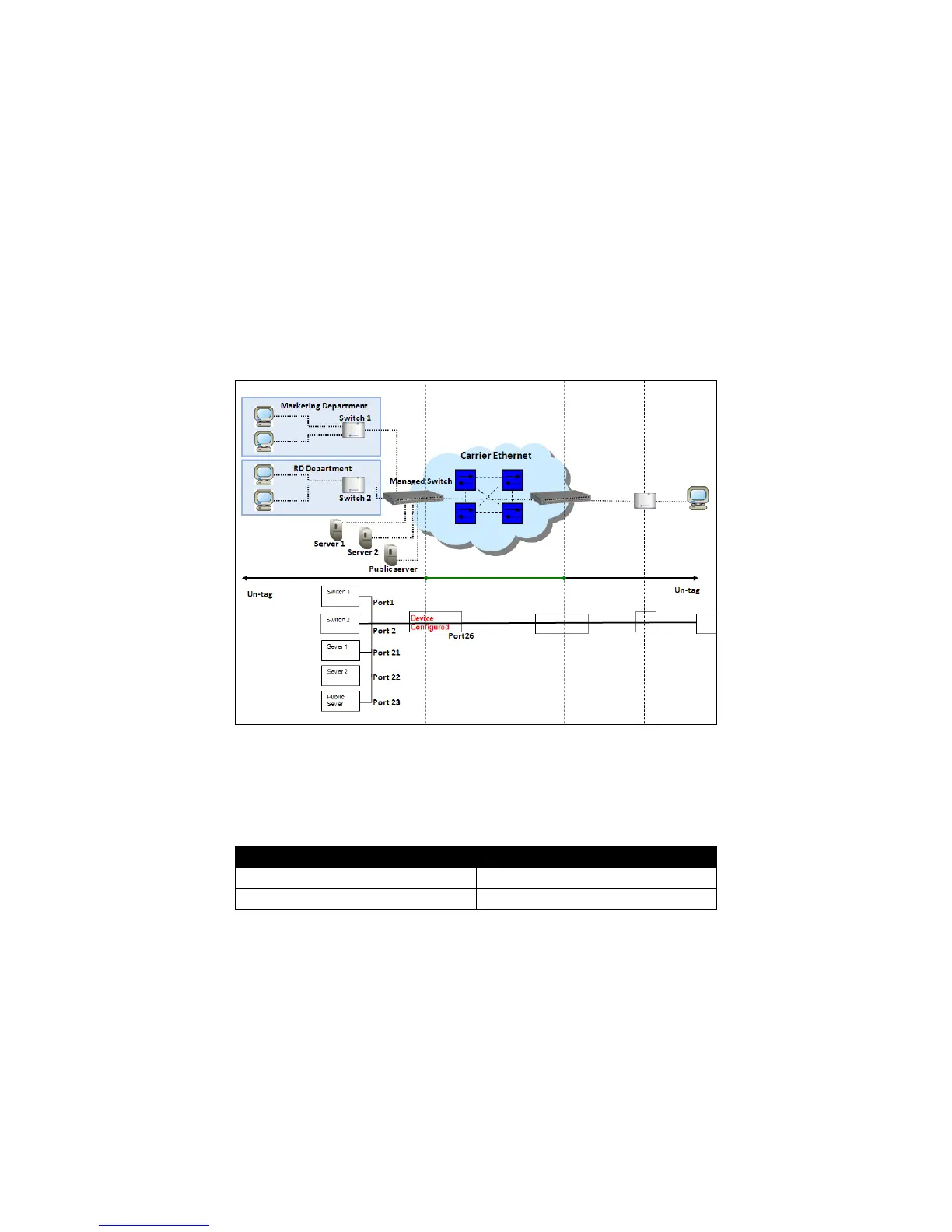

Port-Based VLAN Network Diagram
Based on design conditions described above, port-based VLAN assignments can be summarized
in the table below.
