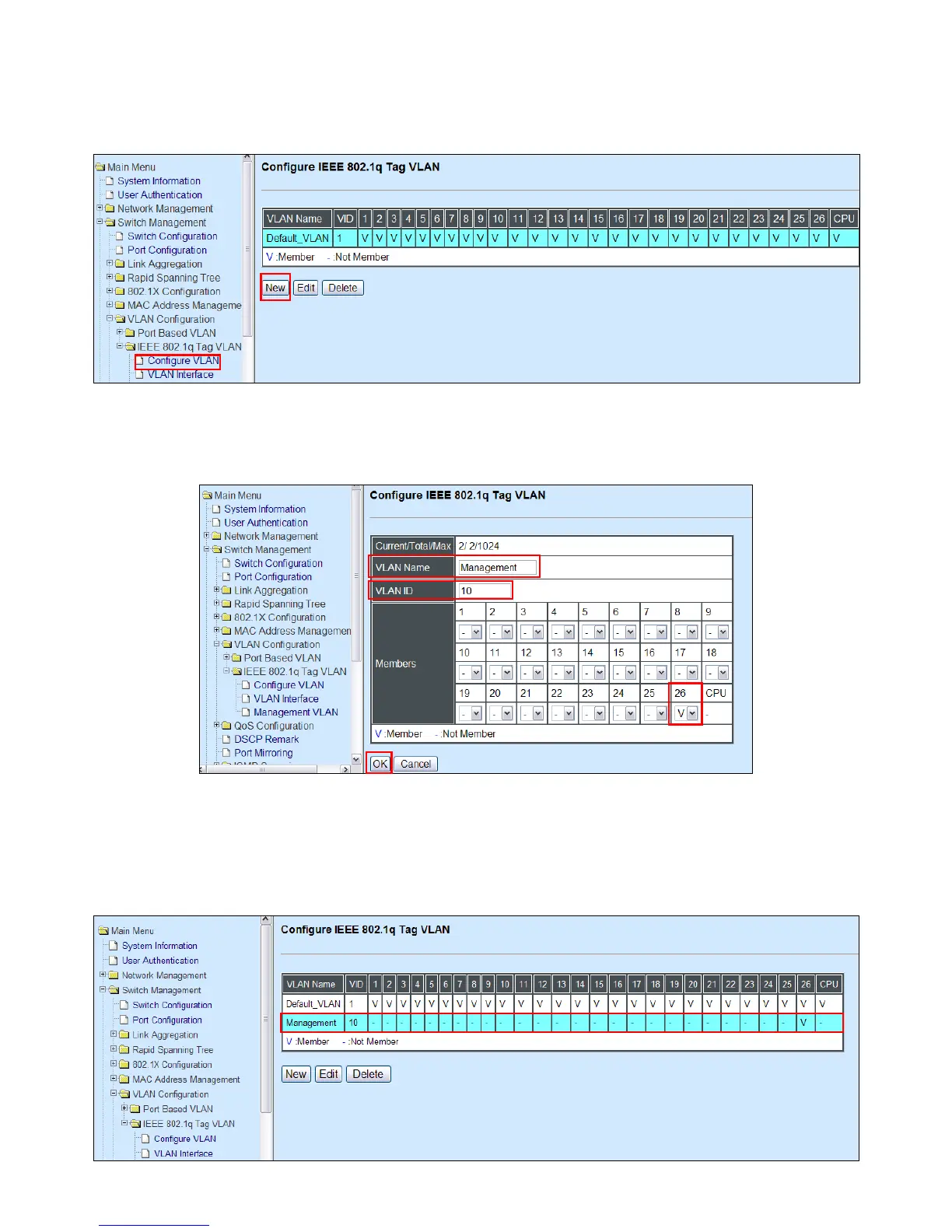

Web Management Configuration:
1. Select “Configure VLAN” option in IEEE 802.1Q Tag VLAN menu.
Switch Management>VLAN Configuration>IEEE 802.1q Tag VLAN>Configure VLAN
2. Create a new Management VLAN 10 that includes only Port 26 as a member port.
Switch Management>VLAN Configuration>IEEE 802.1q Tag VLAN>Configure VLAN
3. Check Management VLAN 10 settings.
Switch Management>VLAN Configuration>IEEE 802.1q Tag VLAN>Configure VLAN
Click “New” to create a new VLAN.
Management
VLAN 10 that
includes Port 26
as a member port.
Click “OK” button to
return to IEEE 802.1q
Tag VLAN table.
